Note: This article is discontinued.

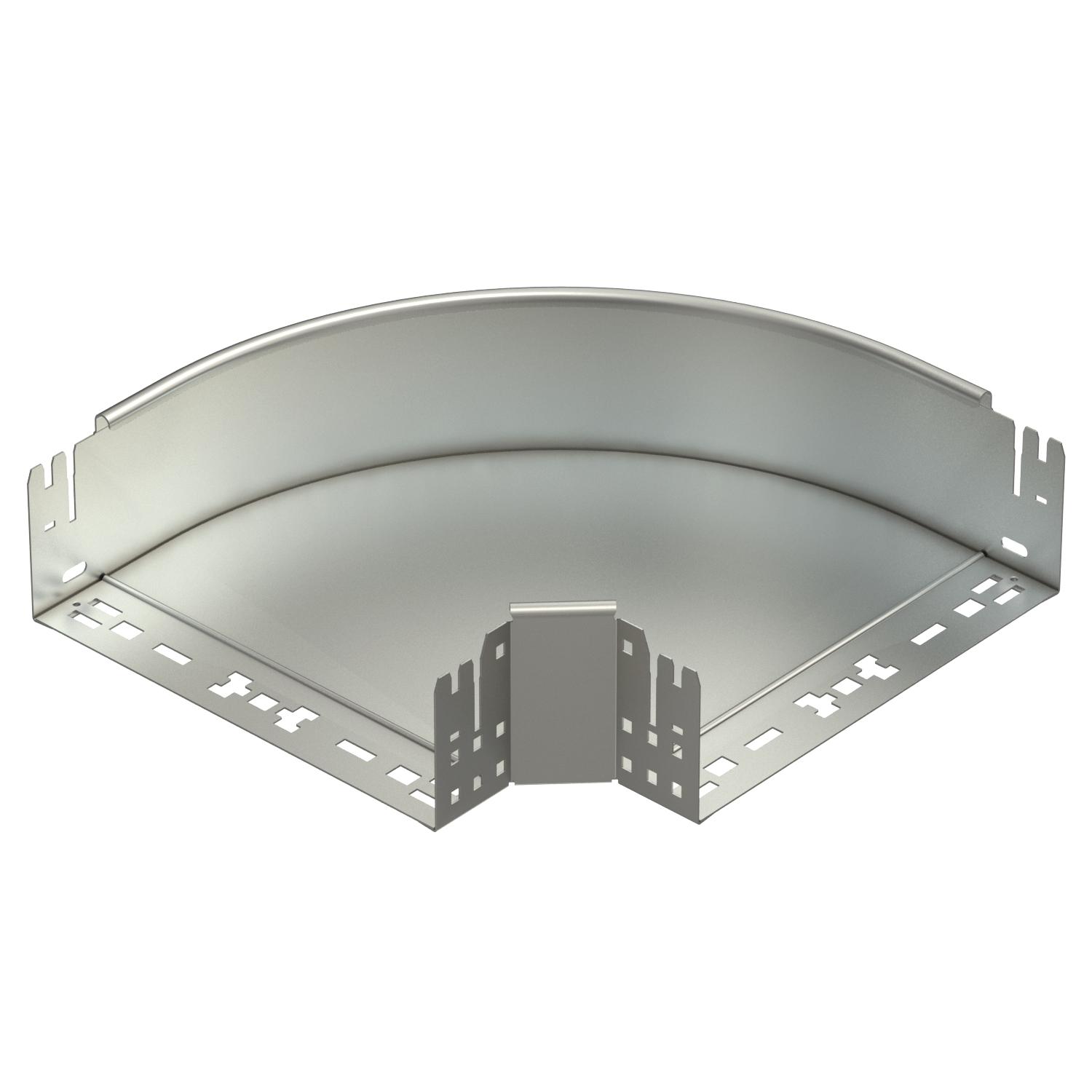

90° Magic bend 110 A2
Item no. 6041884 | EAN 4012195880806
- Product description
-
Product description90° bend with quick connector system. For all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data

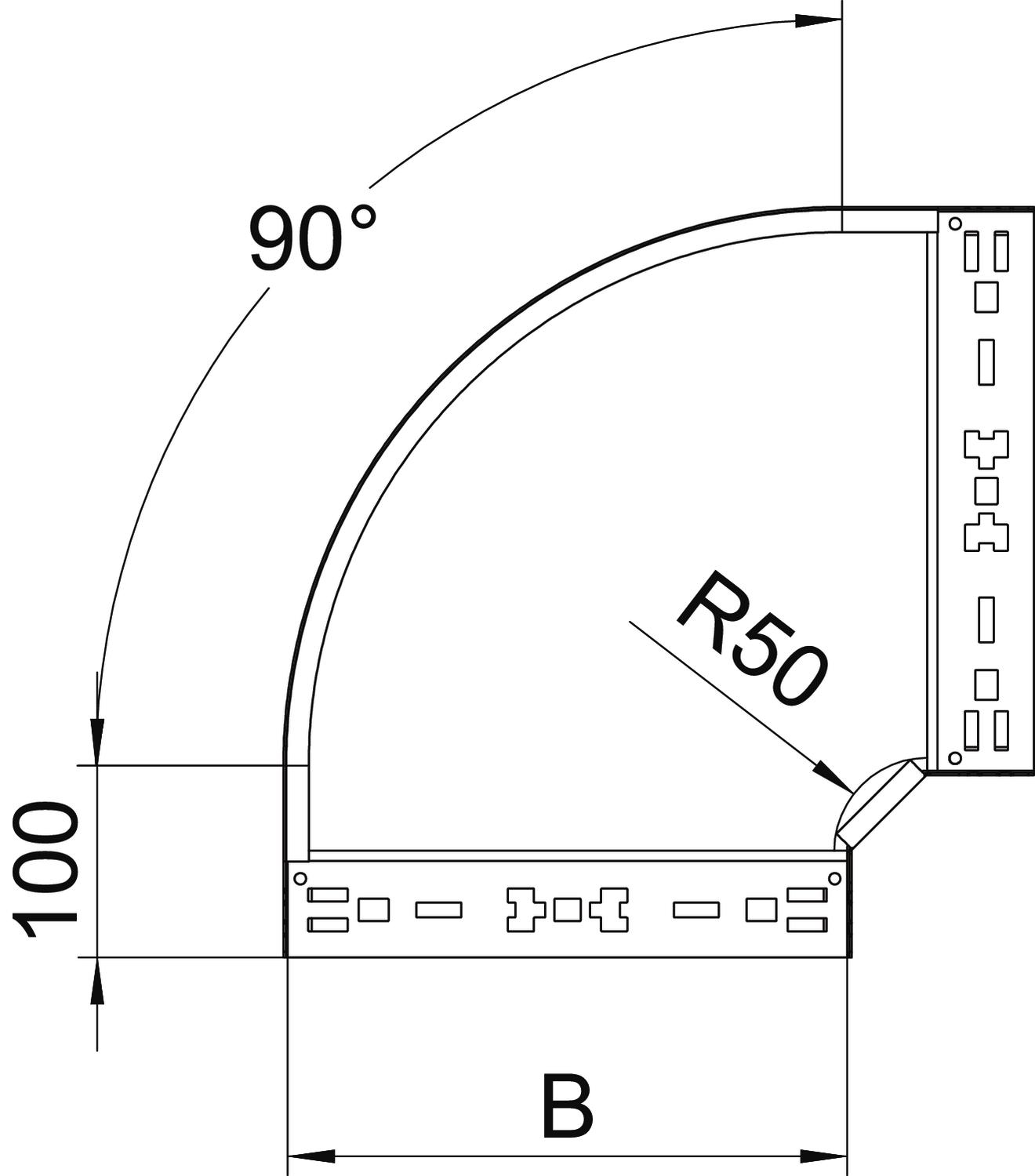

Bend (angle) 90° Change of direction Horizontal Connector version Integrated connector Dimension 110x300 Dimension B 300 mm Height 110 mm Maintain electrical functions no Material Stainless steel Mounting perforation in base no NATO hole pattern no Plate thickness 1,25 mm Rustproof steel, pickled no Side perforation no Surface Bright, treated Type of connector, cable support system Click fastening Wide-span version no Width 300 mm - All types
- Downloads
-
Data sheet RBM 90 130 A2 / 6041884 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RBM 90 130 A2 / 6041884 , 0.10MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
