Note: This article is discontinued.
You can find the current article here: 6036804 / 90° bend 110 FS

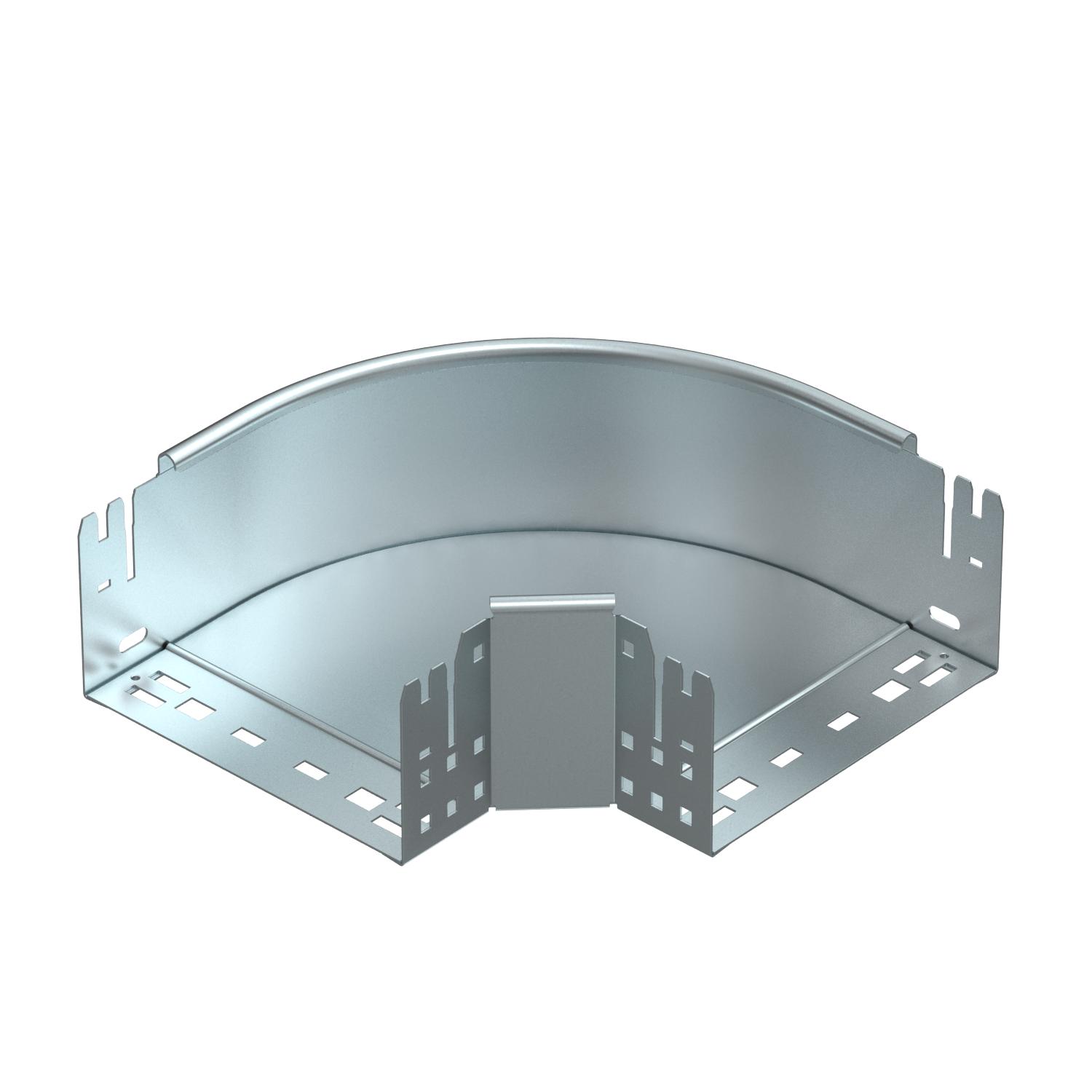

90° Magic bend 110 FS
Item no. 6041842 | EAN 4012195880554
- Product description
-
Product description90° bend with quick connector system. For all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Integrated connector Dimension 110x200 Dimension B 200 mm Height 110 mm Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1,25 mm Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type of connector, cable support system Click fastening Wide-span version no Width 200 mm - All types
-
All types
- Downloads
-
Data sheet RBM 90 120 FS / 6041842 , 0.22MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RBM 90 120 FS / 6041842 , 0.10MB , pdfUK Declaration of Conformity RBM 90 120 FS / 6041842 , 0.14MB , pdfREACH Declaration of conformity RBM 90 120 FS / 6041842 , 0.12MB , pdfRoHS Declaration of conformity RBM 90 120 FS / 6041842 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
