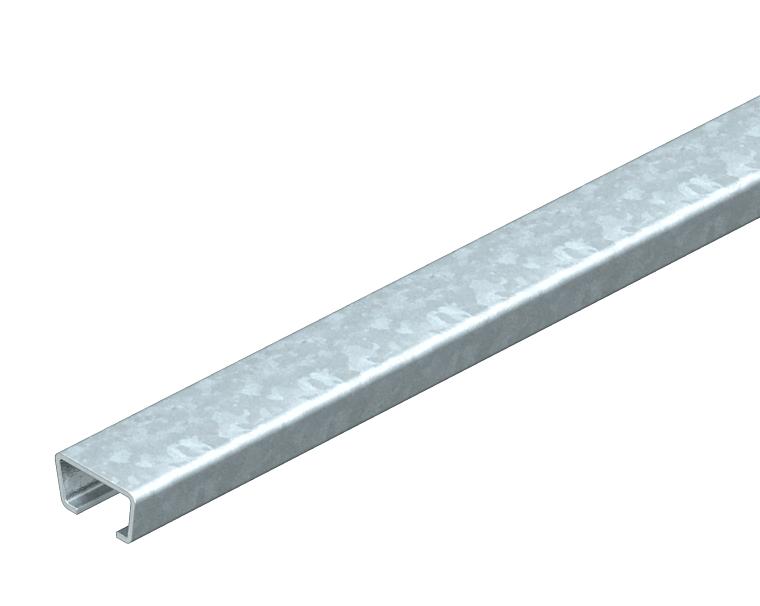

AMS3518 anchor rail, slot 16.5 mm, FT, unperforated 2000 | 35 | 18 | 2 | Steel | Hot-dip galvanised

AMS3518 anchor rail, slot 16.5 mm, FT, unperforated

Item no. 1112228 | EAN 4012195043393

Item no. / Types

Length	2000 mm

Width	35 mm

Height	18 mm

Material thickness	2 mm

Material	Steel

Surface

Product description

Product description

Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.

Technical data

Technical data

Breakable	no
Bundle	20 m
CO₂ Footprint (GWP) Cradle-to-Gate	2,576 kg CO₂e / 1 Meter

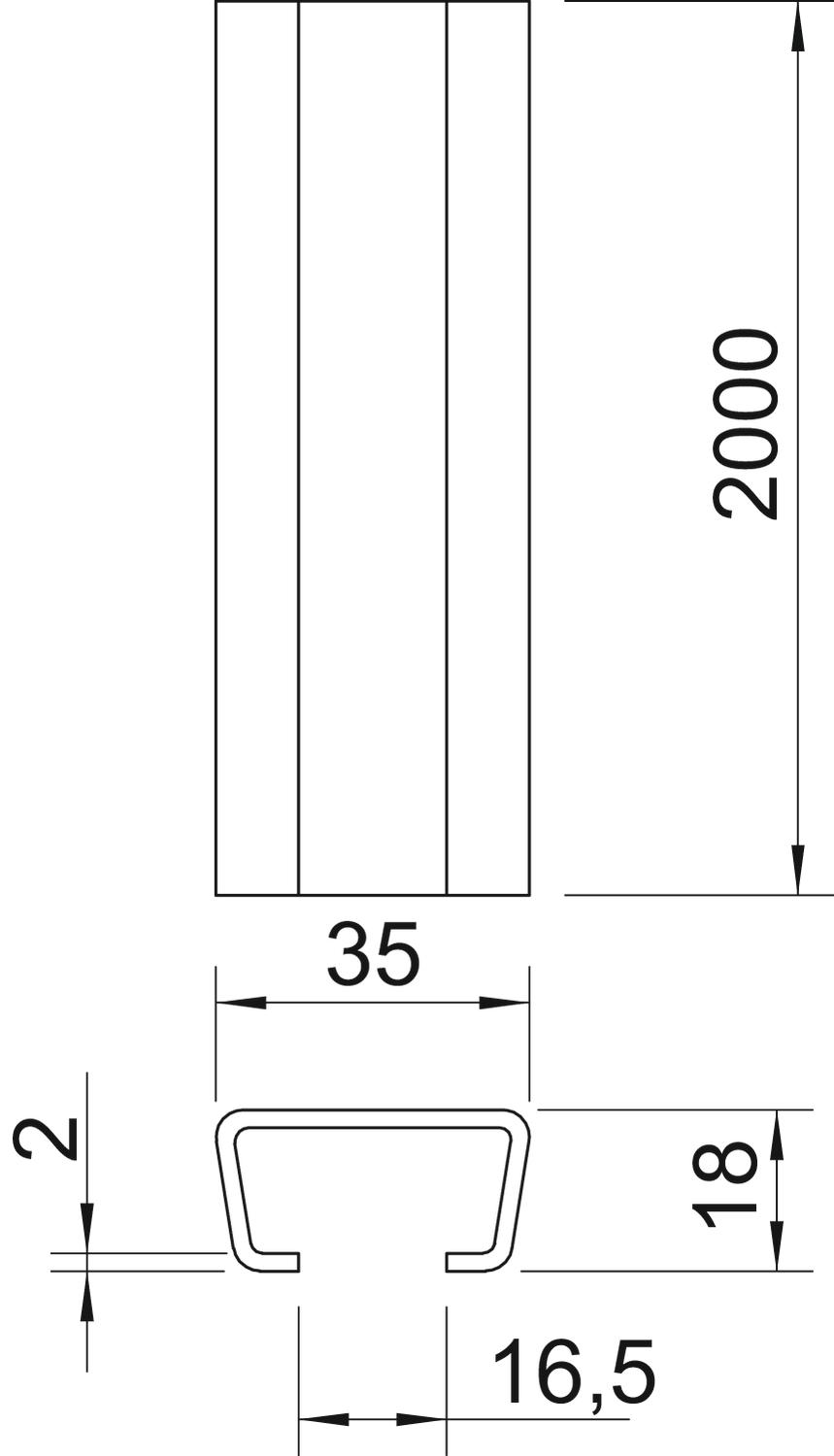

Dimension	2000x35x18
Dimension L	2000 mm
Height	18 mm
Length	2000 mm
Maintain electrical functions	no
Material	Steel
Material thickness	2 mm
Profile shape	C profile
Slot width	16,5 mm

Static value A	1,48 cm²
Static value ly	0,6 cm
Static value lz	2,33 cm
Static value Wy	0,54 cm²
Static value Wz	1,33 cm²
Surface	Hot-dip galvanised
Type of perforation	Without
Version for	Single profile
Width	35 mm
With perforation	no
With toothing	no

All types

All types

Types	Length	Width	Height	Material thickness	Material	Surface	Item no.	Quantity	SSU
AMS3518UP2000BK	2000 mm	35 mm	18 mm	2 mm	Steel	Bright	1112023	m	2 m
AMS3518UP2000FT	2000 mm	35 mm	18 mm	2 mm	Steel	Hot-dip galvanised	1112228	m	2 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Slide nut ZL	ACMSN M8 ZL	1147060	piece	100 piece
Hammer-head bolt ZL	ACMHB M8x30 ZL	1148060	piece	50 piece
Clamp clip, single, plastic pressure trough, FT	2056 12 FT	1160125	piece	100 piece
Clamp clip, single, plastic pressure trough, FT	2056 22 FT	1160222	piece	100 piece
Clamp clip, single, plastic pressure trough, FT	2056 28 FT	1160281	piece	100 piece
