Base clamp clip, single 16 | 18 | 1
morepic-1 morepic-2

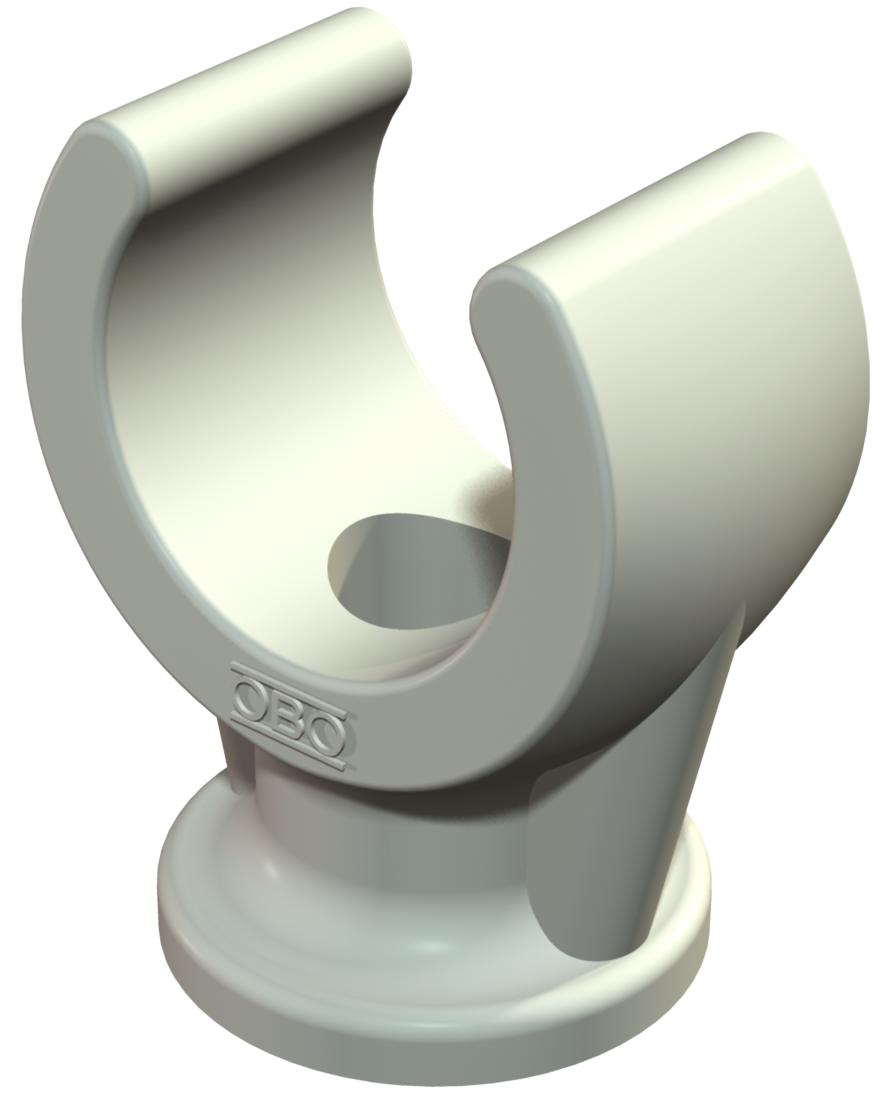

Base clamp clip, single

Item no. 2140187 | EAN 4012195199274

1
Product description
Product description
Can be screwed onto M6 thread.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Clamping range D, max. 18 mm
Clamping range D, min. 16 mm
Colour Light grey; RAL 7035

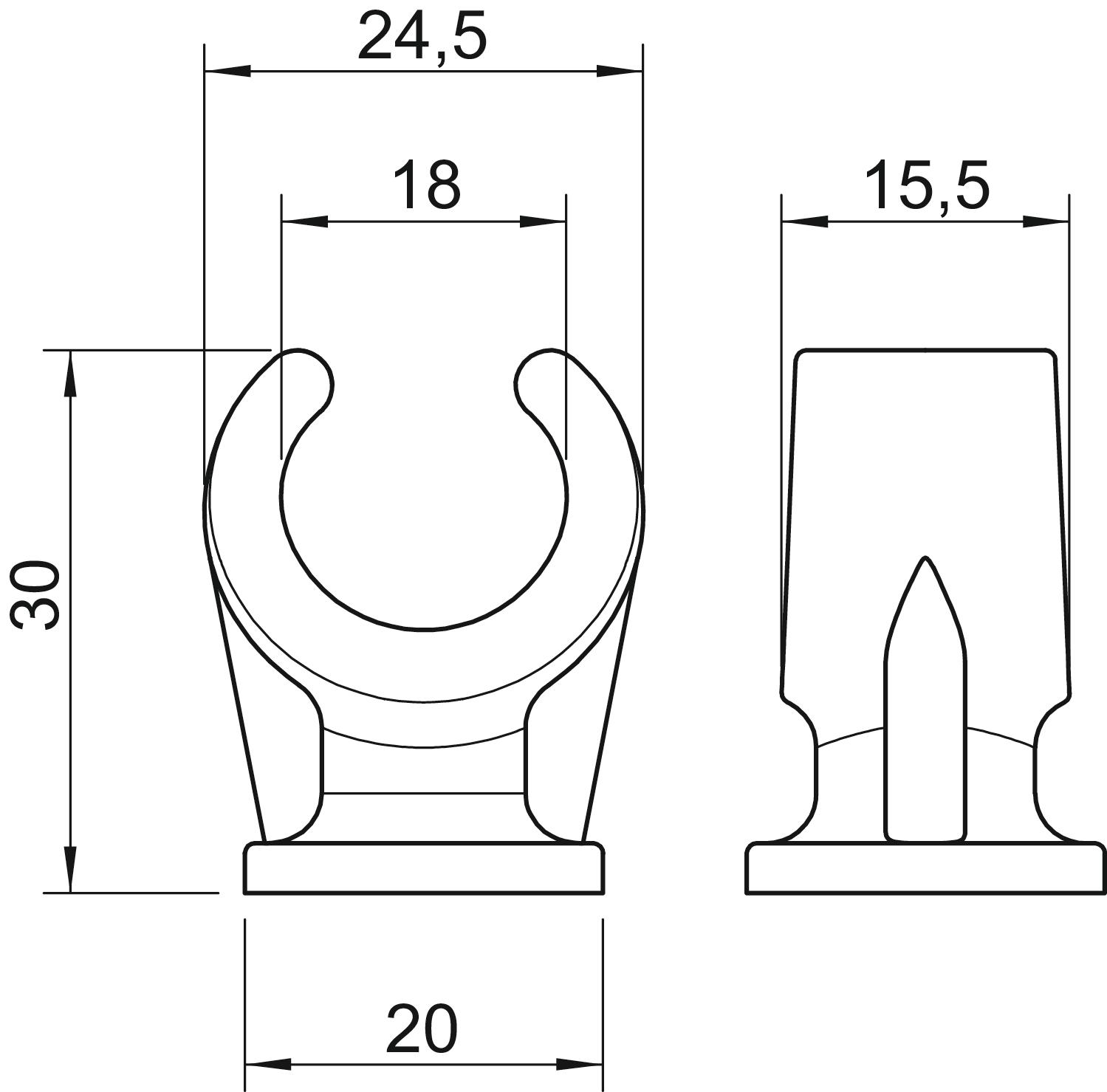

Dimension 16-18mm
Dimension A 24,5 mm
Dimension B 15,5 mm
Dimension C 20 mm
Dimension H 30 mm
Fastening type Threaded connection
Halogen-free yes
Material Polypropylene
Nominal diameter 17,1 mm
Number of cables/pipes 1
Plastic-covered no
Size 16-18
Suitable in fire protection area no
UV-resistant no
Version for Single-lobe
All types

All types

Types Clamping range D, min. Clamping range D, max. Number of cables/pipes Item no. Quantity SSU
2962 10 LGR 10 mm 10 mm 1 2140101
100 piece
2962 12 LGR 12 mm 12 mm 1 2140128
100 piece
2962 15 LGR 14 mm 15 mm 1 2140152
100 piece
2962 18 LGR 16 mm 18 mm 1 2140187
100 piece
2962 22 LGR 19 mm 22 mm 1 2140233
50 piece
2962 28 LGR 25 mm 28 mm 1 2140284
25 piece
2962 35 LGR 32 mm 35 mm 1 2140357
25 piece
2962 42 LGR 40 mm 42 mm 1 2140411
25 piece
Downloads

Download

Download

EU declaration of conformity 2962 18 LGR / 2140187 , 0.13MB , pdf
Download
REACH Declaration of conformity 2962 18 LGR / 2140187 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2962 18 LGR / 2140187 , 0.12MB , pdf
Download

2962 18 LGR / 2140187
Download
