Cable gland, PG thread, light grey
Item no. 2024802 | EAN 4012195447313
- Product description
-
Product descriptionCable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
-
- Technical data
-
Technical data

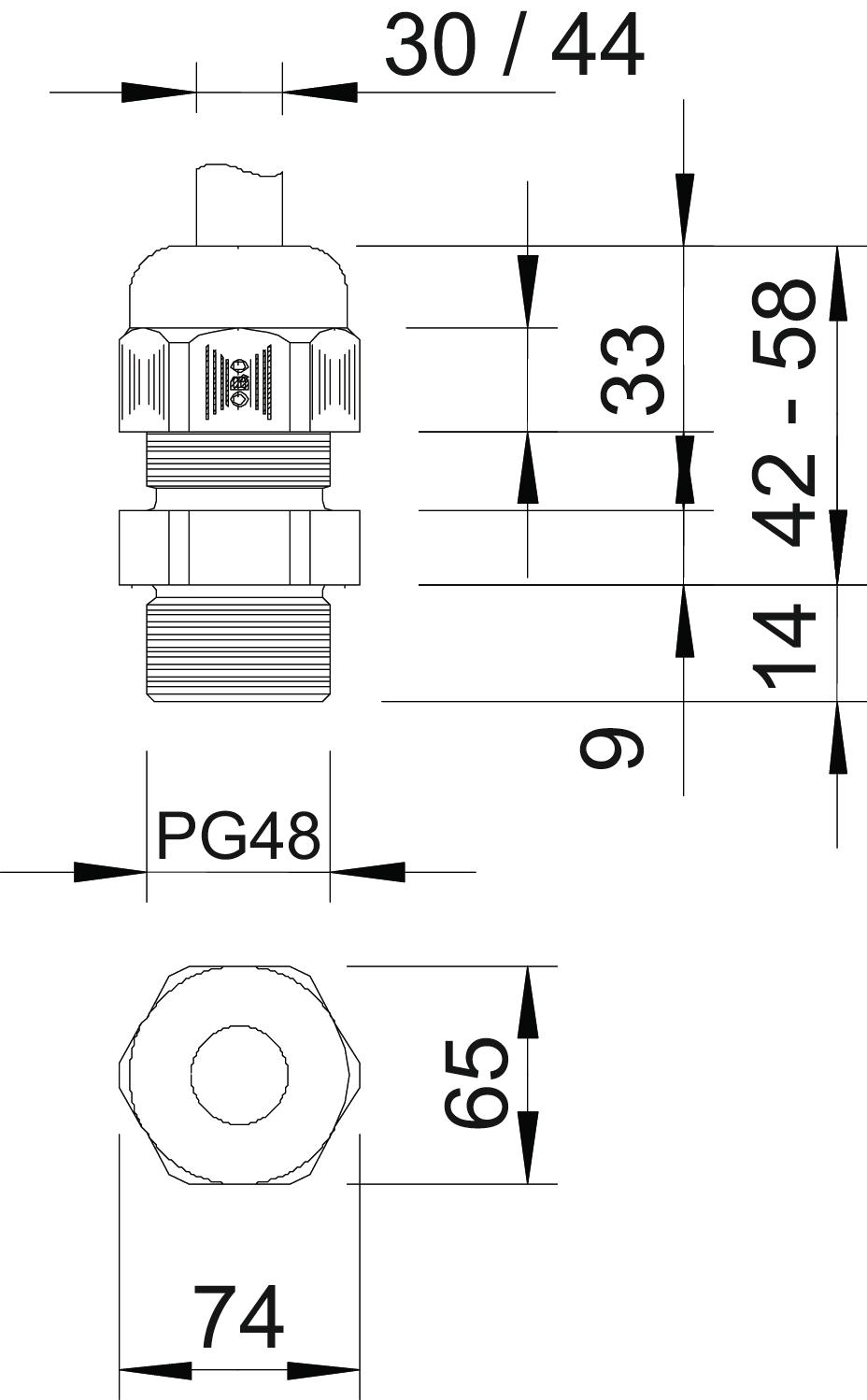

Bend protection no Colour Light grey; RAL 7035 Dimension PG48 Dimension E 74 mm Dimension L max. 58 mm Dimension L min. 42 mm Dimension L1 14 mm Dimension L2 9 mm Dimension L3 33 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Hexagonal corner dimension 74 mm Impact-resistant no Material Polyamide Nominal thread size 48 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 44 mm Sealing area D, min. 30 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread Pg 48 Thread increase 1,41 mm Thread length 14 mm Thread type PG Type of seal Sealing ring Unstable torque 5 Nm Version for Straight WAF 65 With locknut no - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Locknut, PG thread
116 PG48 2043483 25 piece - Downloads
-
Data sheet V-TEC PG48 LGR / 2024802 , 0.27MB , pdfEU declaration of conformity V-TEC PG48 LGR / 2024802 , 0.06MB , pdfREACH Declaration of conformity V-TEC PG48 LGR / 2024802 , 0.12MB , pdfRoHS Declaration of conformity V-TEC PG48 LGR / 2024802 , 0.12MB , pdfLabel approval DNV symbol approval, V-TEC VM , 0.03MB , pdf
