Cable tray BKRS 100 FS 3000 | 500 | 2 | no | Steel | Strip galvanized

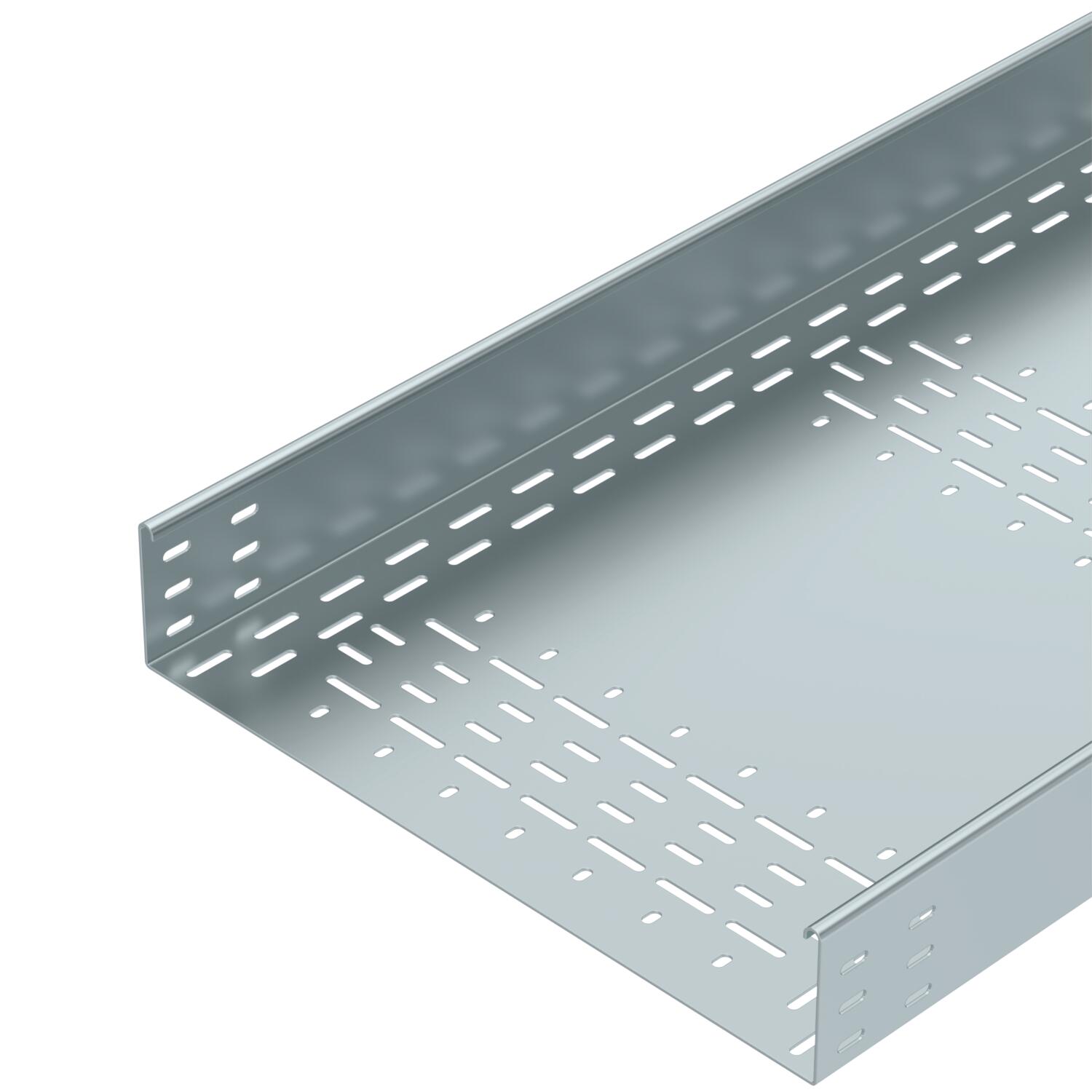

Cable tray BKRS 100 FS

Item no. 6062008 | EAN 4012196341900

Item no. / Types

Length	3000 mm

Width

Plate thickness	2 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

Heavy-duty, walkable cable tray system BKRS with base perforation, in 100 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	25,844 kg CO₂e / 1 Meter

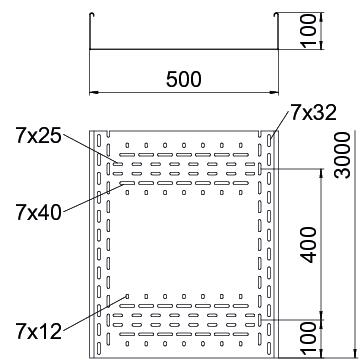

Dimension	100x500x3000
Dimension B	500 mm
Dimension H	100 mm
Dimension L	3000 mm
Height	100 mm
Height	4 in
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel

Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	2 mm
Plate thickness	0,08 in
Rustproof steel, pickled	no
Side perforation	no
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	432 cm²
Usable cross-section	43152 mm²
Wide-span version	no
Width	500 mm
Width	20 in
With cover	no

All types

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
BKRS 1010 FS	3000 mm	100 mm	2 mm	no	Steel	Strip galvanized	6062000	m	3 m
BKRS 1020 FS	3000 mm	200 mm	2 mm	no	Steel	Strip galvanized	6062002	m	3 m
BKRS 1030 FS	3000 mm	300 mm	2 mm	no	Steel	Strip galvanized	6062004	m	3 m
BKRS 1040 FS	3000 mm	400 mm	2 mm	no	Steel	Strip galvanized	6062006	m	3 m
BKRS 1050 FS	3000 mm	500 mm	2 mm	no	Steel	Strip galvanized	6062008	m	3 m
BKRS 1060 FS	3000 mm	600 mm	2 mm	no	Steel	Strip galvanized	6062010	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Support profile 100 FS	STP Z 1050 FS	6044589	piece	1 piece
BKRS FT Z support	ZST 100 BKRS FT	6044601	piece	25 piece

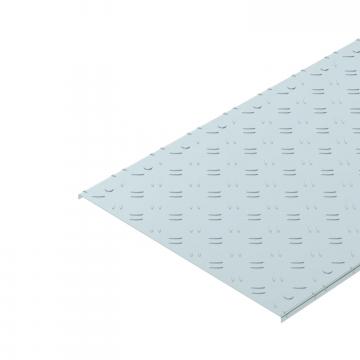

Chequer plate cover DBKR FS	DBKR 500 FS	6049127	m	3 m
Universal connector 100 FS	RUVK 100 FS	6067870	piece	10 piece
100 FS reducer/stop-end	RWEB 1050 FS	7111810	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Cover clamp G	DK DBKR G	6049280	piece	30 piece
Dust protection element and joint plate FS	SSE SSLB 500 FS	6049298	piece	1 piece
Barrier strip, Z-shaped 100 FS	TSG100Z BKRS FS	6062390	m	3 m
