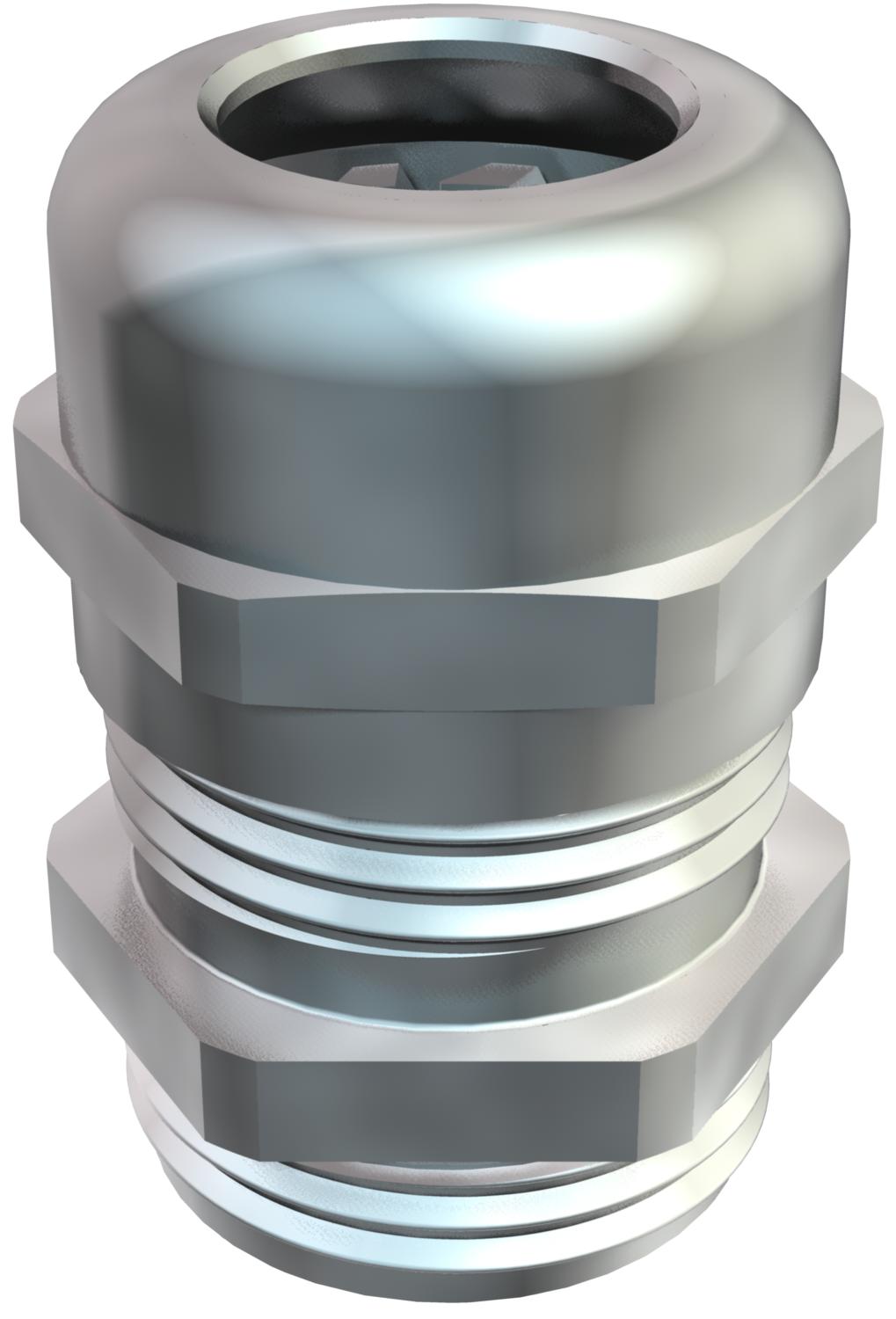

Cap nut cable gland, PG thread, nickel-plated
Item no. 2085631 | EAN 4012195190097
- Product description
-
Product descriptionCable gland of cap-nut design with large sealing area, and strain relief and torsion protection for high sealing demands with Pg connection thread to DIN 40430, polyamide terminal insert, sealing ring of chloroprene/nitrile rubber, with pre-mounted O ring on the connection thread.
Protection rating IP 68 at 5 bar: 1 hr, tested to DIN EN 62444.
"Normal" connection thread length, according to DIN 46320.
* Prices according to DEL notation.
-
- Technical data
-
Technical data

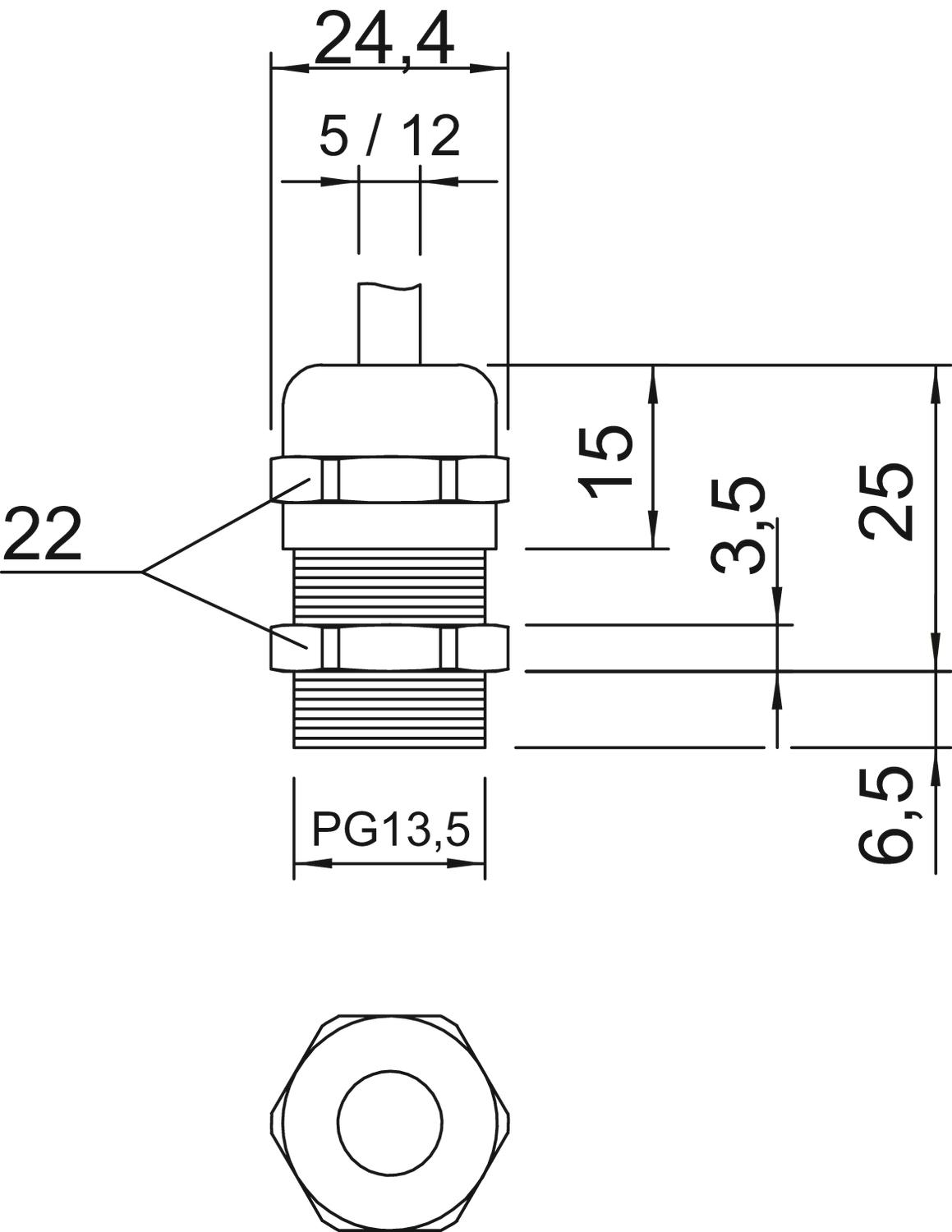

Bend protection no Dimension PG13,5 Dimension E 24,4 mm Dimension L max. 25 mm Dimension L1 6,5 mm Dimension L2 3,5 mm Dimension L3 15 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free no Impact-resistant no Material Brass Nominal thread size 13,5 Permitted temperature range, max. 100 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 12 mm Sealing area D, min. 5 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Surface Nickel-plated Thread Pg 13,5 Thread length 6,5 mm Thread type PG Type of seal Sealing ring Version for Straight WAF 22 With locknut no - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Locknut, PG thread
169 MS PG13.5 2091135 100 piece - Downloads
-
Data sheet V-TEC PG13 MS / 2085631 , 0.24MB , pdfEU declaration of conformity V-TEC PG13 MS / 2085631 , 0.06MB , pdfREACH Declaration of conformity V-TEC PG13 MS / 2085631 , 0.12MB , pdfRoHS Declaration of conformity V-TEC PG13 MS / 2085631 , 0.12MB , pdf
