Clamp clip 2056 F-foot, 1-fold, metal pressure sleeve, A2 16 | 22 | 3

Clamp clip 2056 F-foot, 1-fold, metal pressure sleeve, A2

Item no. 1187514 | EAN 4012196853731

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque	3 Nm

Back to overview

Product description

Product description

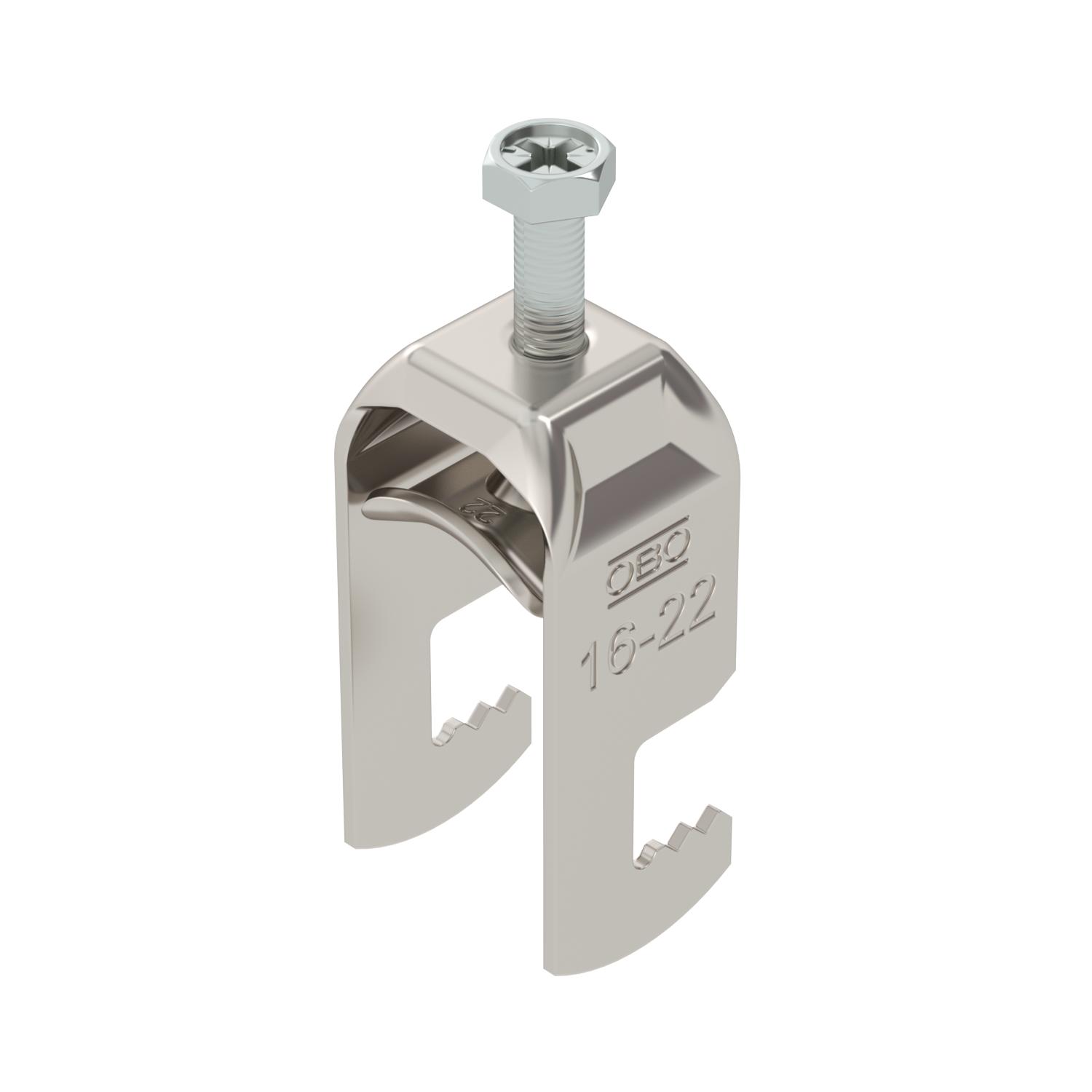

Clamp clip with F-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on flat bars. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	22 mm
Clamping range D, min.	16 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,3254 kg CO₂e / 1 Piece

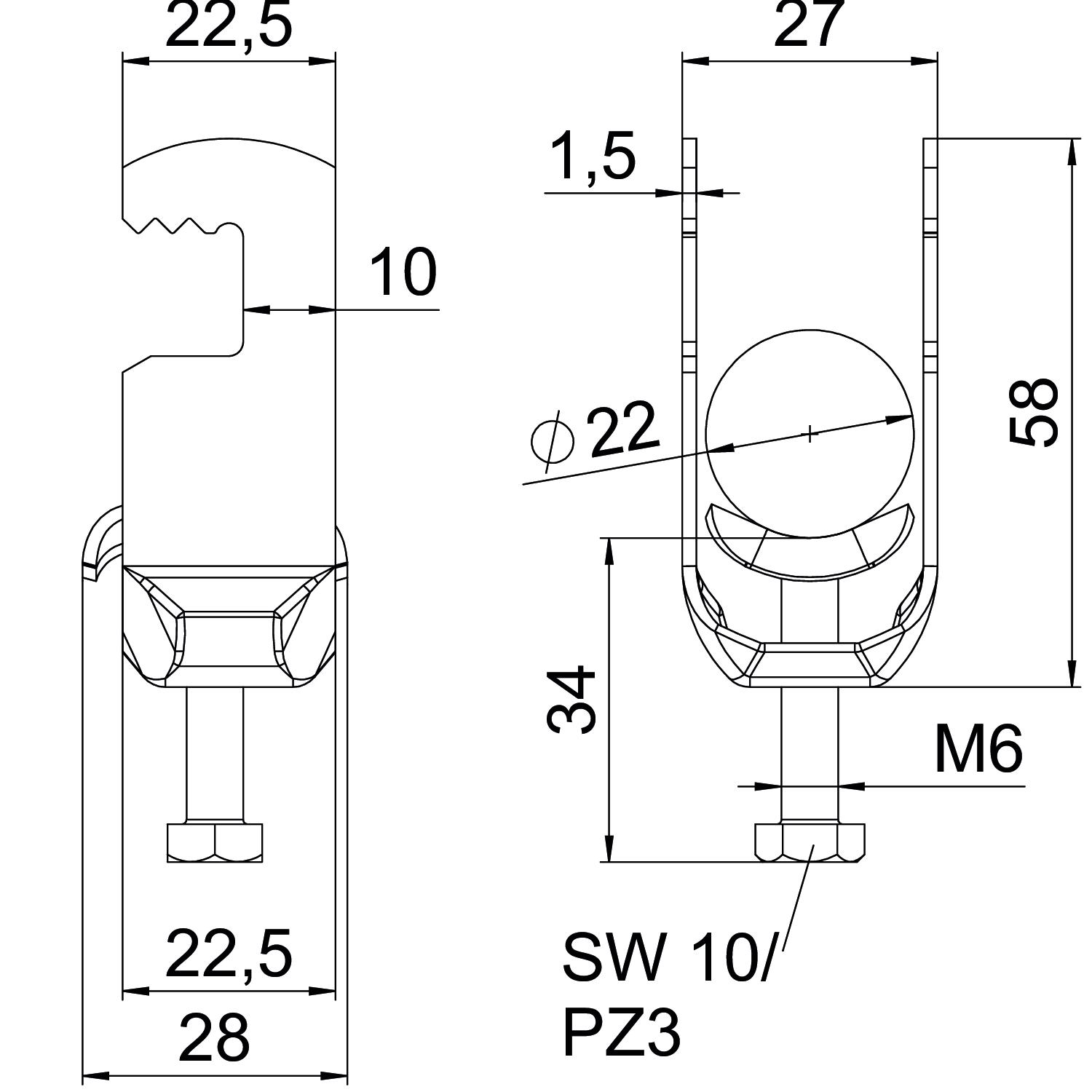

Dimension	16-22mm
Dimension A	22,5 mm
Dimension B	27 mm
Dimension C	28 mm
Dimension G (mm)	M6
Dimension H	58 mm
Dimension L	34 mm
Dimension t	1,5 mm
For pipe diameter, max.	22 mm
For pipe diameter, min.	16 mm
Halogen-free	yes
Height	58 mm
Length	22,5 mm

Length of external dimensions	28 mm
Material	Stainless steel
Material addition	Rustproof steel
Material of trough	Rustproof steel
Material quality of trough	Stainless steel 304 (1.4301)
Max. Tightening torque	3 Nm
Mounting type	Flat profile
Number of cables/pipes	1
Plate thickness	1,5 mm
Slot width	10 mm
Surface	Bright, treated
Surface addition	Untreated
Thread	M6
Width	27 mm
With counter-trough	no
With metal trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-F1-M-12 A2	8 mm	12 mm	3 Nm	1187502	piece	100 piece
BS-F1-M-16 A2	12 mm	16 mm	3 Nm	1187508	piece	100 piece
BS-F1-M-22 A2	16 mm	22 mm	3 Nm	1187514	piece	100 piece
BS-F1-M-28 A2	22 mm	28 mm	3 Nm	1187520	piece	1 piece
BS-F1-M-34 A2	28 mm	34 mm	3 Nm	1187526	piece	1 piece
BS-F1-M-40 A2	34 mm	40 mm	3 Nm	1187532	piece	1 piece
