Clamp clip 2056, F-foot, single, plastic pressure trough, ALU 34 | 40 | 3

Clamp clip 2056, F-foot, single, plastic pressure trough, ALU

Item no. 1188246 | EAN 4012197416591

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Back to overview

Product description

Product description

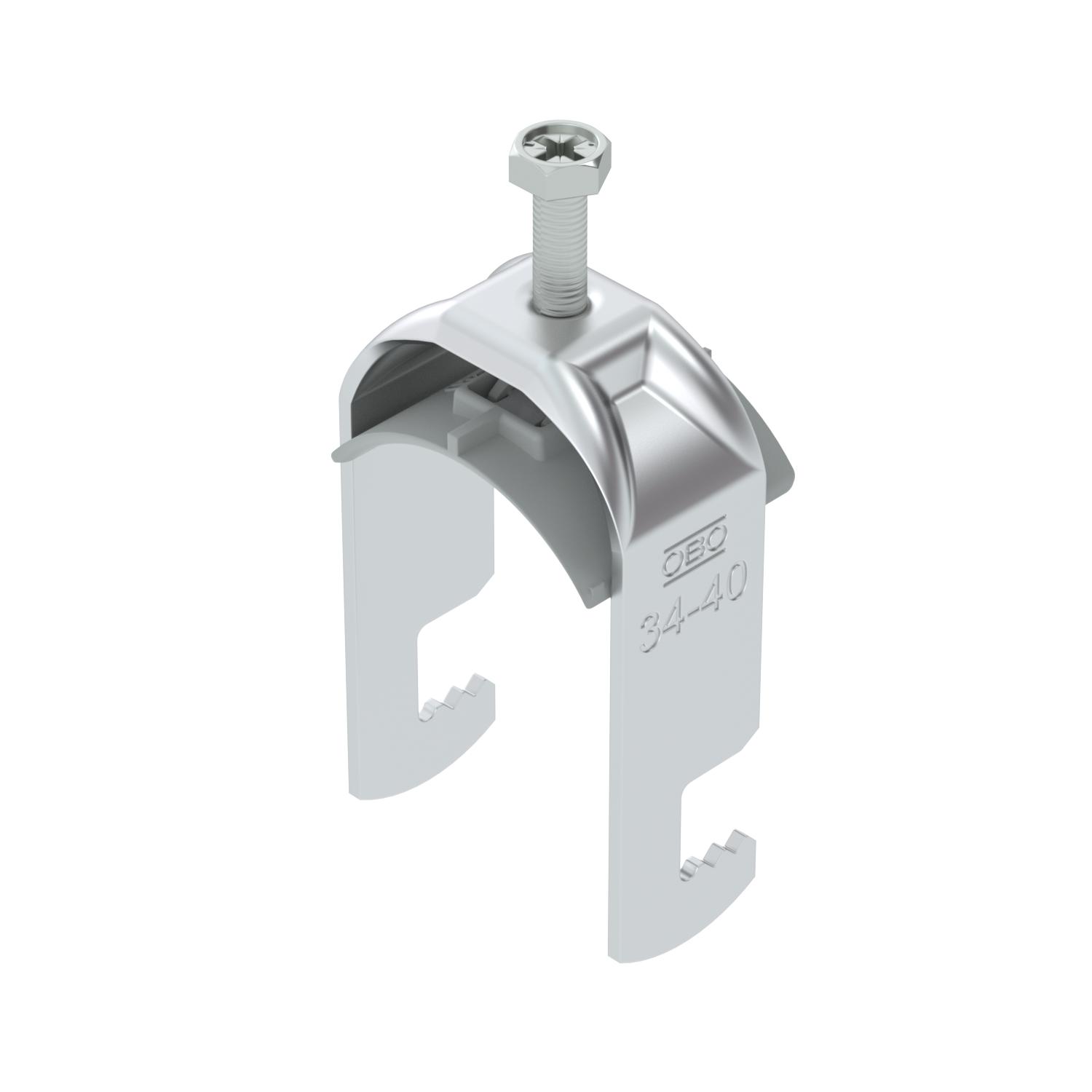

Clamp clip with F-foot, plastic pressure trough made of polypropylene. For vertical and horizontal mounting of 1 single cable on flat bars. With 1-start screw thread on pressure trough, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for mounting indoors and outdoors. We recommend the use of a counter-trough.

Technical data

Technical data

Clamping range D, max.	40 mm
Clamping range D, min.	34 mm
Dimension	34-40mm

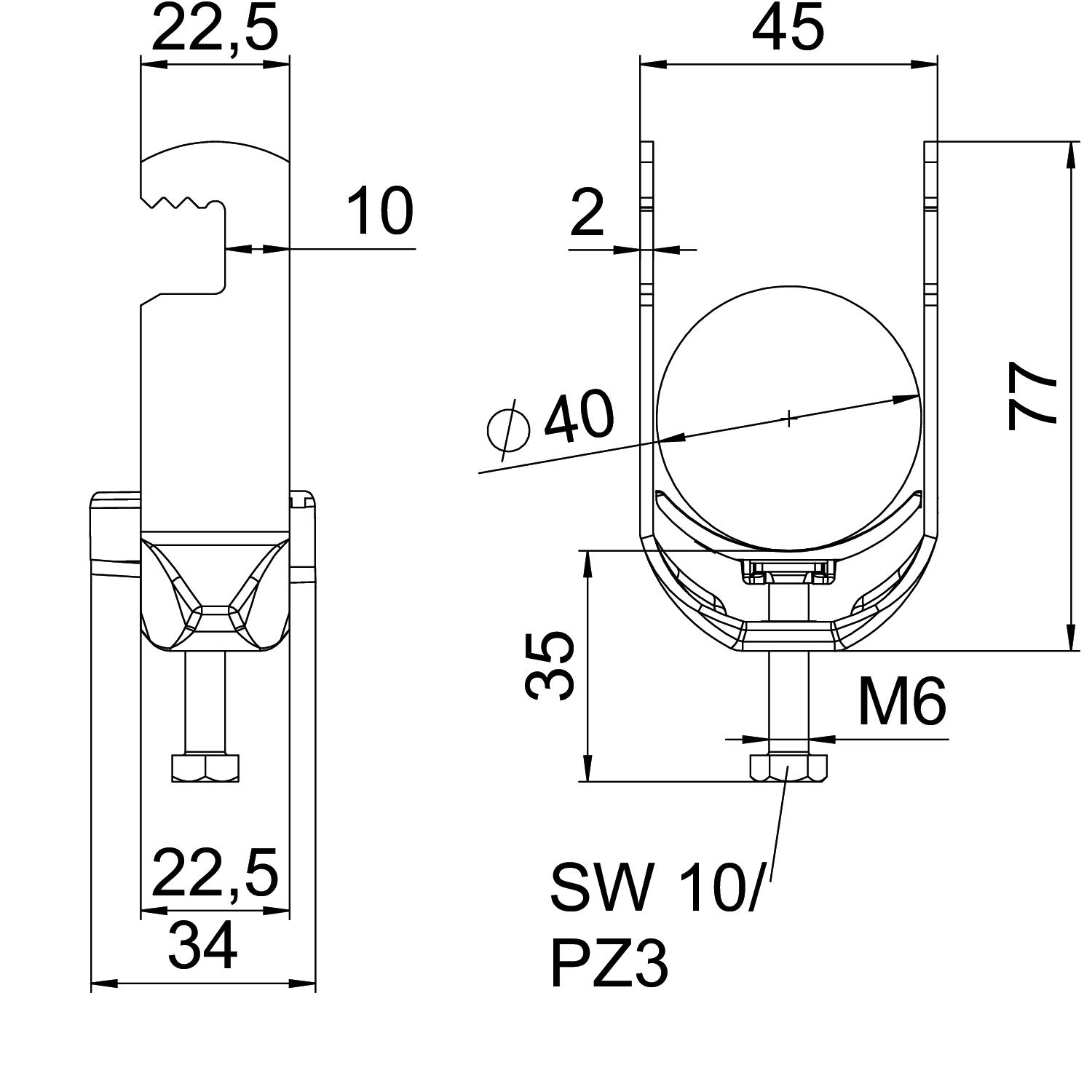

Dimension A	22,5 mm
Dimension B	45 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	77 mm
Dimension L	35 mm
Dimension t	2 mm
For pipe diameter, max.	40 mm
For pipe diameter, min.	34 mm
Halogen-free	yes
Height	77 mm

Length	22,5 mm
Length of external dimensions	34 mm
Material	Aluminium
Material addition	Aluminium
Max. Tightening torque	3 Nm
Mounting type	Flat profile
Number of cables/pipes	1
Plate thickness	2 mm
Slot width	10 mm
Surface addition	Untreated
Thread	M6
Width	45 mm
With plastic trough	yes
