Note: This article is discontinued. You can find the current article here: 1186702 / Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, FT

Clamp clip, single, FT plastic pressure trough

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Suitable for all C profile rails with slot width 18 mm and 22 mm.

Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.

Technical data

Clamping range D, max.	12 mm
Clamping range D, min.	8 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,06 kg CO₂e / 1 Piece

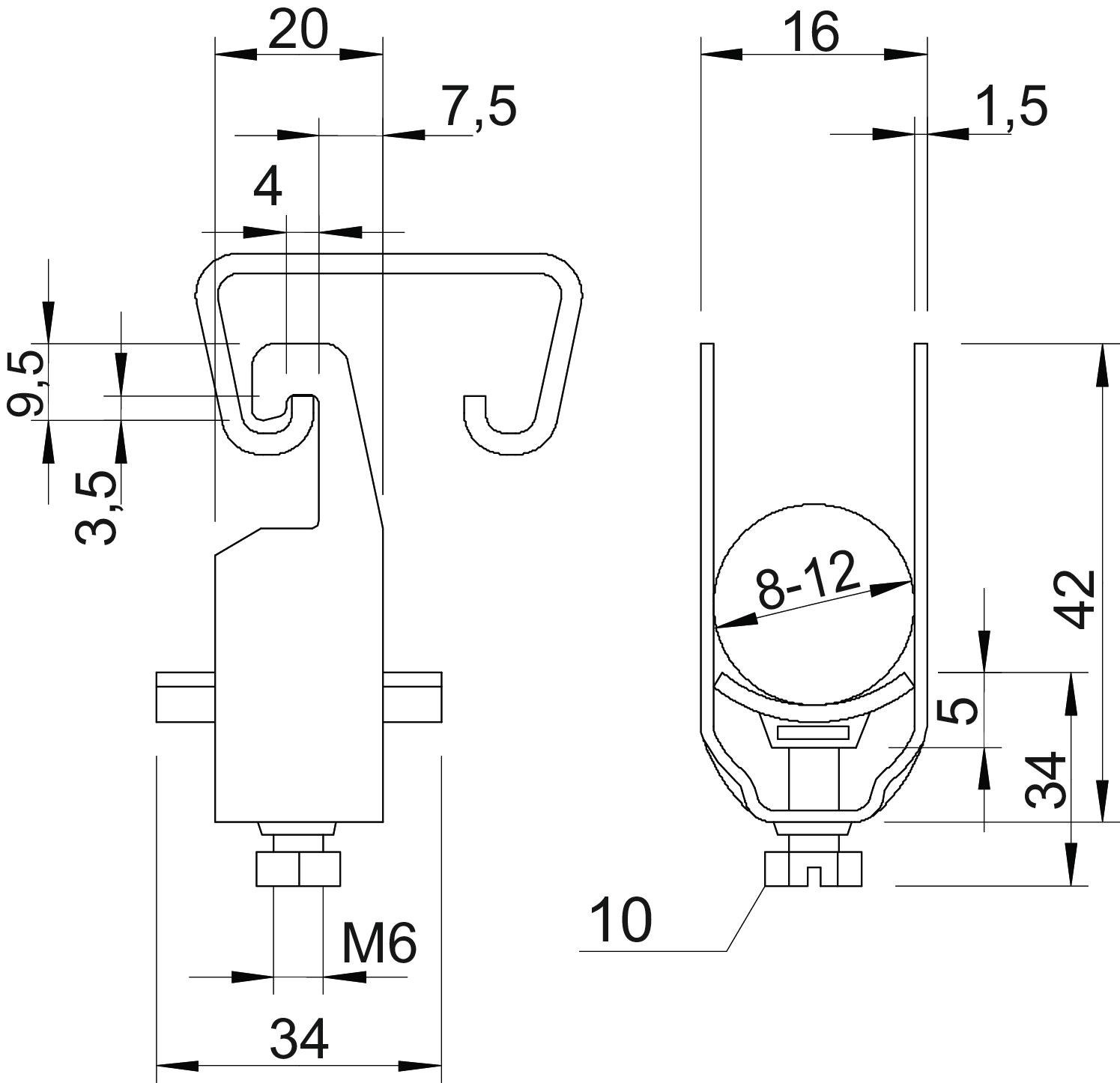

Dimension	8-12mm
Dimension A	20 mm
Dimension B	16 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	42 mm
Dimension L	34 mm
Dimension t	1,5 mm
Dimension x	5 mm
for 1 cable H	42 mm
for 1 cable L	34
for 2 cable H	56 mm
for 2 cable L	34 mm
for 3 cable H	70 mm

for 3 cable L	47 mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Impact-resistant	no
Material	Steel
Material addition	Steel
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Surface	Hot-dip galvanised
Surface addition	hot galvanised
With counter-trough	no
With metal trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
2056U 12 FT	8 mm	12 mm	3 Nm	1175122	piece	100 piece
2056U 16 FT	12 mm	16 mm	3 Nm	1175165	piece	100 piece
2056U 22 FT	16 mm	22 mm	3 Nm	1175211	piece	100 piece
2056U 28 FT	22 mm	28 mm	3 Nm	1175289	piece	100 piece
2056U 34 FT	28 mm	34 mm	5 Nm	1175343	piece	100 piece
2056U 40 FT	34 mm	40 mm	5 Nm	1175408	piece	100 piece
2056U 46 FT	40 mm	46 mm	5 Nm	1175467	piece	100 piece
2056U 52 FT	46 mm	52 mm	5 Nm	1175521	piece	100 piece
2056U 58 FT	52 mm	58 mm	5 Nm	1175580	piece	100 piece
2056U 64 FT	58 mm	64 mm	5 Nm	1175645	piece	100 piece
2056U 70 FT	64 mm	70 mm	5 Nm	1175696	piece	50 piece
2056U 76 FT	70 mm	76 mm	5 Nm	1175769	piece	25 piece
2056U 82 FT	76 mm	82 mm	5 Nm	1175823	piece	25 piece
2056U 90 FT	82 mm	90 mm	5 Nm	1175904	piece	25 piece
2056U 100 FT	90 mm	100 mm	5 Nm	1175998	piece	25 piece
