Note: This article is discontinued. You can find the current article here: 1187032 / Clamp clip 2056 N-foot, 1-fold, metal pressure sleeve, FT

Clamp clip, single, metal pressure trough

Item no. 1155466 | EAN 4012195061151

Item no. / Types
Back to overview
Product description
Product description
Suitable for all C profile rails with slot width 11–12 mm; at least 6.5 mm clear internal height and at least 18.5 mm clear internal width;
metal troughs have strongly rounded edges on all sides, so that there is no risk of cable damage.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Clamp clip for C profile rail, slot width 11–12 mm
  • Slot width 11–12 mm
  • CO₂ footprint (PCF)
Technical data

Technical data

Clamping range D, max. 40 mm
Clamping range D, min. 34 mm
CO2 Footprint (GWP) Cradle-to-Gate 0,1509 kg CO₂e / 1 Piece

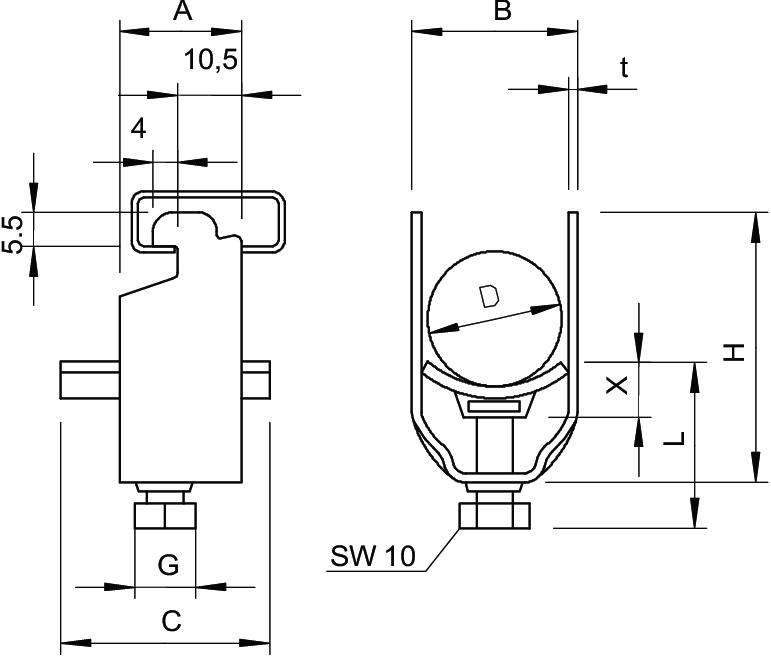

Dimension 34-40mm
Dimension A 20 mm
Dimension B 45 mm
Dimension C 35 mm
Dimension G (mm) M8
Dimension H 66 mm
Dimension L 37 mm
Dimension t 2 mm
Dimension x 5 mm
for 1 cable H 66 mm
for 1 cable L 37
for 2 cable H 110 mm
for 2 cable L 56 mm
for 3 cable H 155 mm
for 3 cable L 71 mm
For pipe diameter, max. 40 mm
For pipe diameter, min. 40 mm
for rail with slot width (with interval), max. 12 mm
for rail with slot width (with interval), min. 11 mm
Halogen-free no
Impact-resistant no
Material Steel
Material addition Steel
Material of trough Steel
Max. Tightening torque 5 Nm
Mounting type Profile rail
Number of cables/pipes 1
Surface Hot-dip galvanised
Surface addition hot galvanised
With counter-trough no
With metal trough yes
With plastic trough no
All types

All types

Types Clamping range D, min. Clamping range D, max. Max. Tightening torque Item no. Quantity SSU
2056N M 40 FT 34 40 5 1155466
100 piece
Downloads

Download

EU declaration of conformity 2056N M 40 FT / 1155466 , 0.10MB , pdf
Download

2056N M 40 FT / 1155466
