Note: This article is discontinued.
You can find the current article here: 1187002 / Clamp clip 2056 N-foot, 1-fold, metal pressure sleeve, FT
- Product description
-
Product descriptionSuitable for all C profile rails with slot width 11–12 mm; at least 6.5 mm clear internal height and at least 18.5 mm clear internal width;
metal troughs have strongly rounded edges on all sides, so that there is no risk of cable damage.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
-
- Technical data
-
Technical data

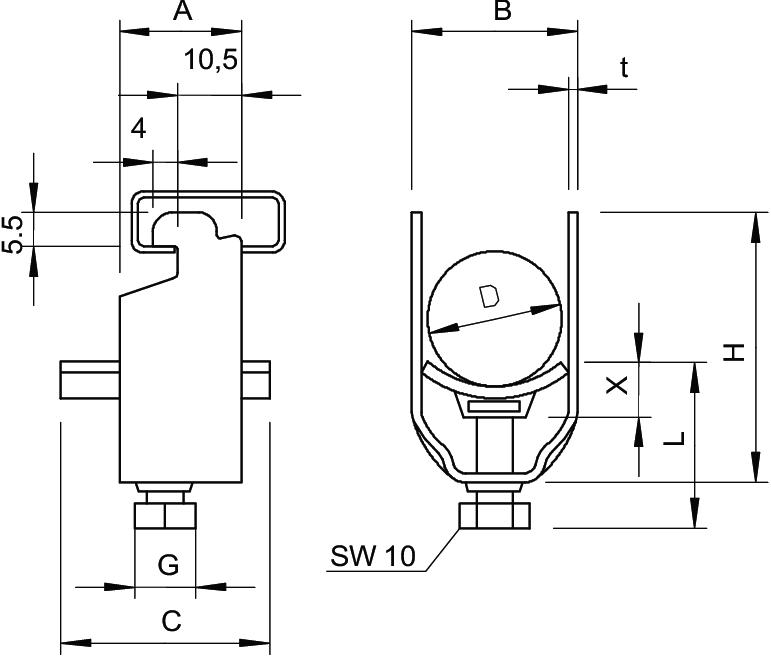

Clamping range D, max. 12 mm Clamping range D, min. 8 mm CO2 Footprint (GWP) Cradle-to-Gate 0,0579 kg CO₂e / 1 Piece Dimension 8-12mm Dimension A 20 mm Dimension B 16 mm Dimension C 30 mm Dimension G (mm) M6 Dimension H 34 mm Dimension L 32,5 mm Dimension t 1,5 mm Dimension x 3,5 mm for 1 cable H 34 mm for 1 cable L 32,5 for 2 cable H 49 mm for 2 cable L 45,5 mm for 3 cable H 65 mm for 3 cable L 45,5 mm for rail with slot width (with interval), max. 12 mm for rail with slot width (with interval), min. 11 mm Halogen-free no Impact-resistant no Material Steel Material addition Steel Material of trough Steel Max. Tightening torque 3 Nm Mounting type Profile rail Number of cables/pipes 1 Surface Hot-dip galvanised Surface addition hot galvanised With counter-trough no With metal trough yes With plastic trough no - All types
-
All types
- Downloads
-
Data sheet 2056N M 12 FT / 1155407 , 0.17MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 2056N M 12 FT / 1155407 , 0.10MB , pdfREACH Declaration of conformity 2056N M 12 FT / 1155407 , 0.12MB , pdfRoHS Declaration of conformity 2056N M 12 FT / 1155407 , 0.13MB , pdf
