Note: This article is discontinued. You can find the current article here: 1186204 / Clamp clip 2056 H-foot, 3-fold, plastic pressure sleeve, FT

Clamp clip, triple, FT plastic pressure trough 8 | 12 | 3

Clamp clip, triple, FT plastic pressure trough

Item no. 1162128 | EAN 4012195066972

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Back to overview

Product description

Product description

Suitable for all C profile rails with slot width 16–17 mm.

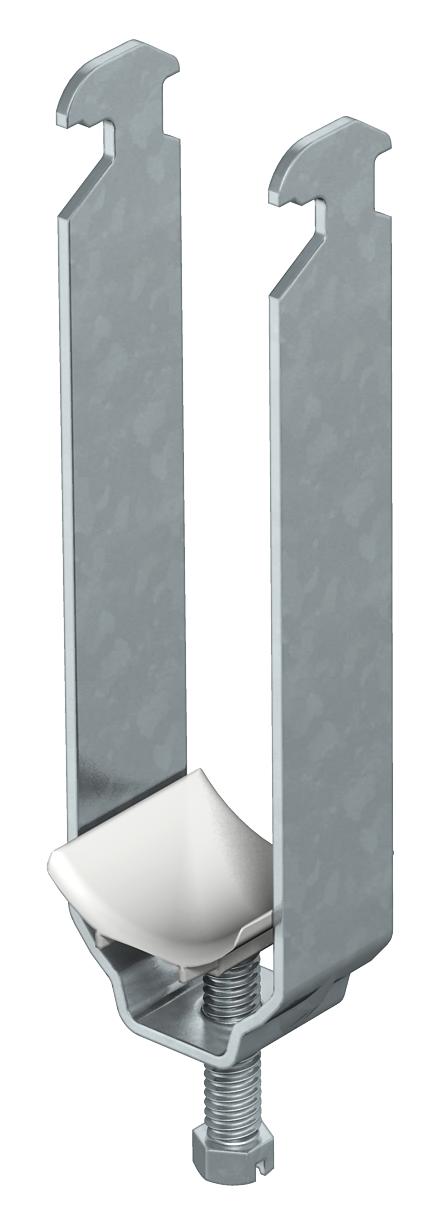

Hot-dip galvanised steel clamp and bolt, polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.

Technical data

Technical data

Clamping range D, max.	12 mm
Clamping range D, min.	8 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,104 kg CO₂e / 1 Piece

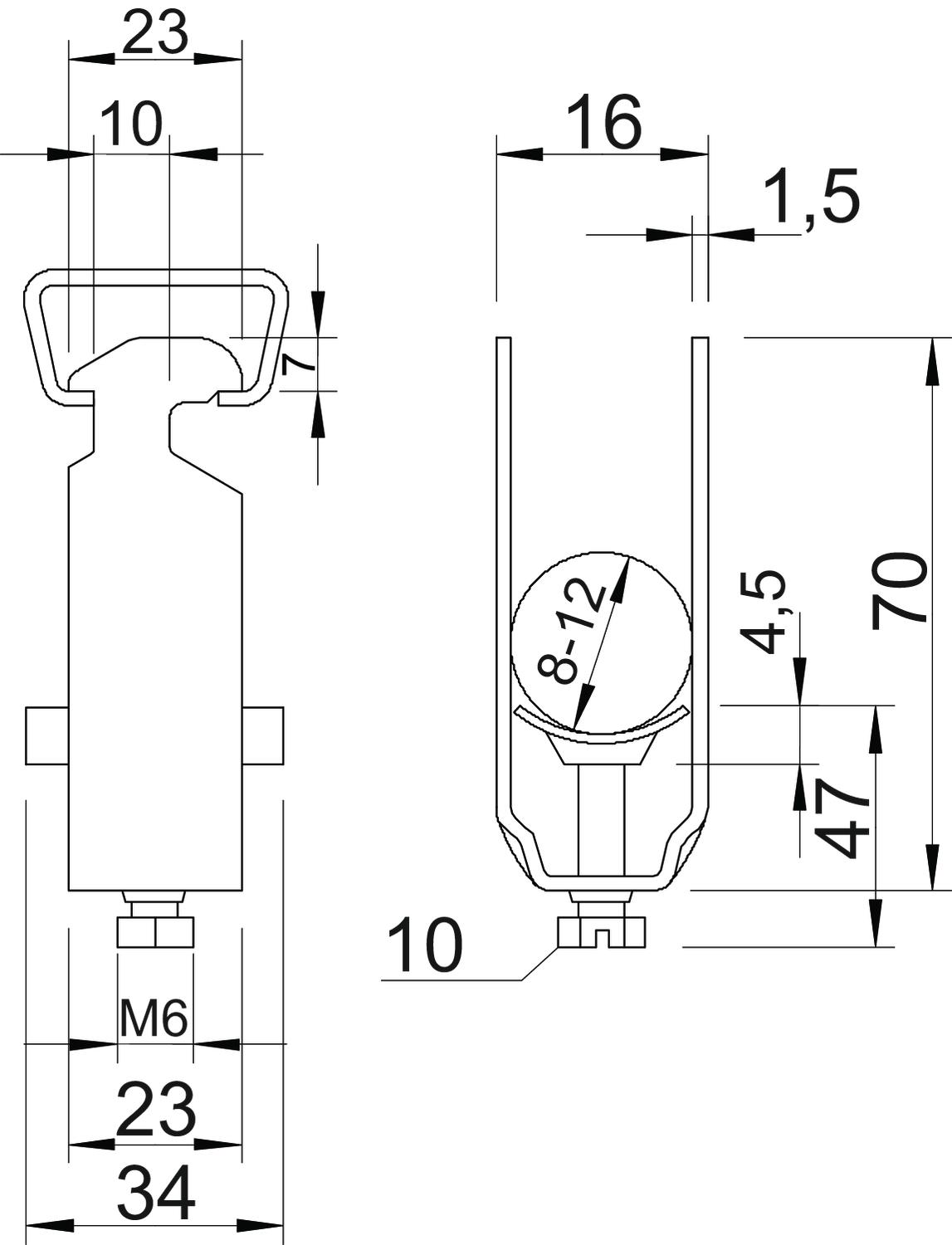

Dimension	8-12mm
Dimension A	23 mm
Dimension B	16 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	70 mm
Dimension L	47 mm
Dimension t	1,5 mm
Dimension x	5 mm
for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm

Halogen-free	yes
Impact-resistant	no
Material	Steel
Material addition	Steel
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	3
Surface	Hot-dip galvanised
Surface addition	hot galvanised
With counter-trough	no
With metal trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
2056 3 12 FT	8 mm	12 mm	3 Nm	1162128	piece	50 piece
2056 3 16 FT	12 mm	16 mm	3 Nm	1162160	piece	50 piece
2056 3 22 FT	16 mm	22 mm	3 Nm	1162225	piece	50 piece
2056 3 28 FT	22 mm	28 mm	3 Nm	1162284	piece	50 piece
2056 3 34 FT	28 mm	34 mm	5 Nm	1162349	piece	50 piece
2056 3 40 FT	34 mm	40 mm	5 Nm	1162403	piece	50 piece
2056 3 46 FT	40 mm	46 mm	5 Nm	1162462	piece	25 piece
