Note: This article is discontinued.

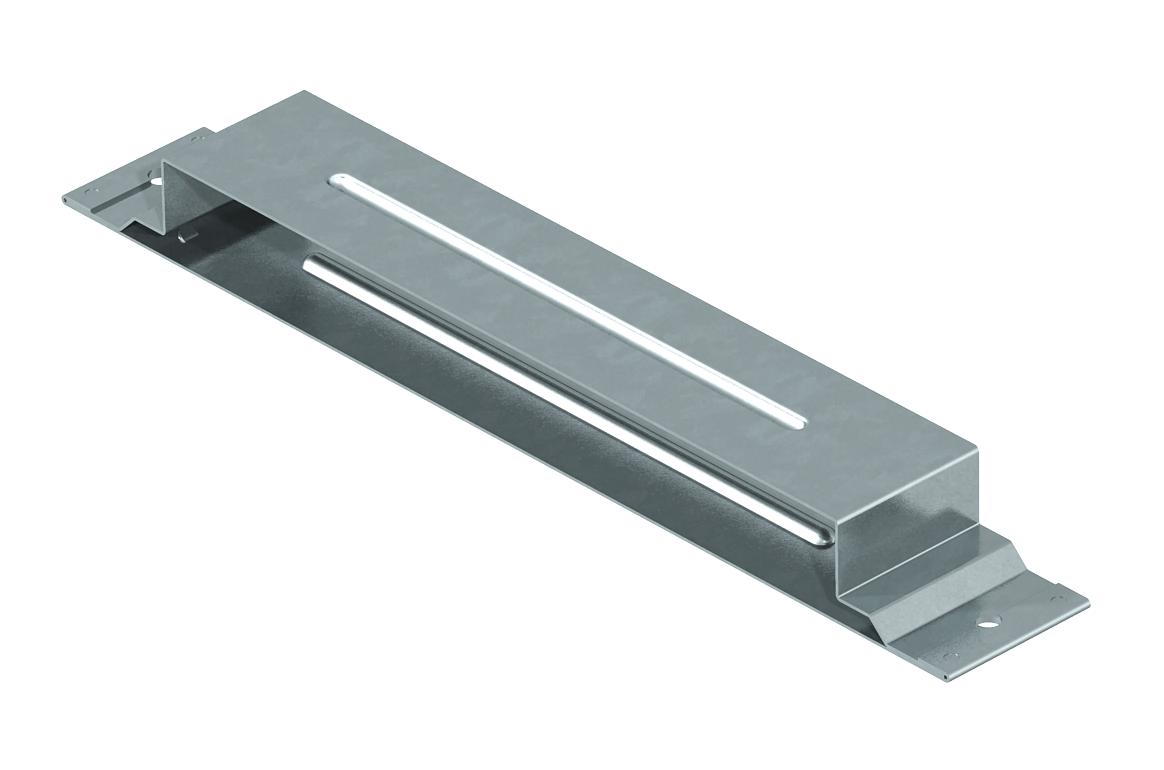

Connection shackle, height 28 mm
Item no. 7400960 | EAN 4012195432845
- Product description
-
Product descriptionDuct connectors for conductive mounting of screed-covered underfloor installation duct.
-
- Technical data
-
Technical data

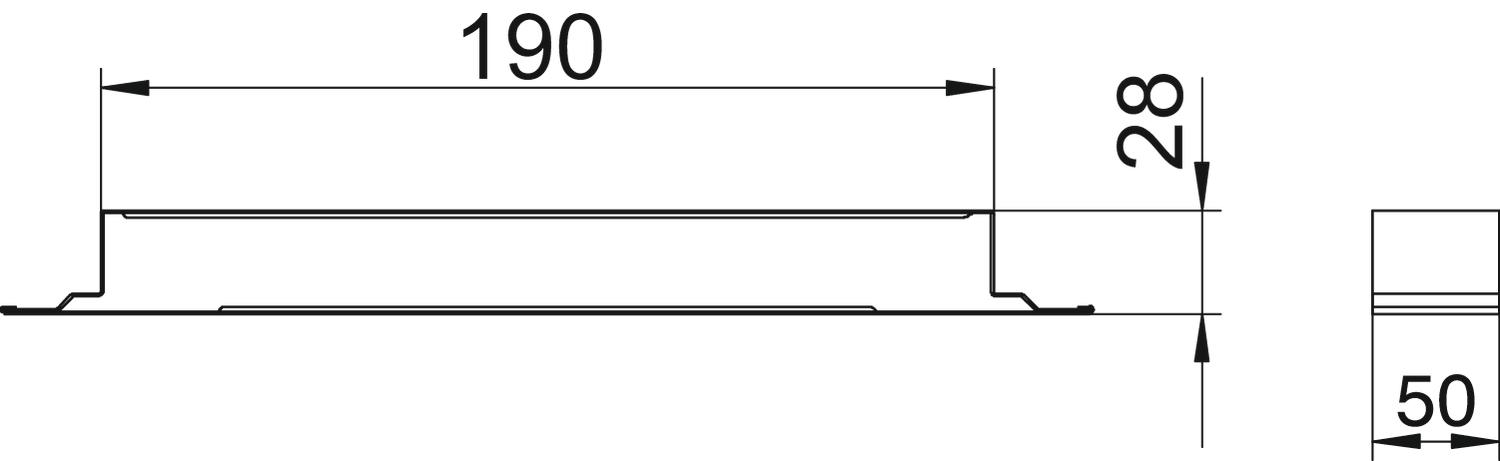

Dimension 50x190x28 Dimension a 190 mm Dimension h 28 mm Duct height, min. 28 mm Floor plate yes Height 28 mm Material Steel Seal installation option no Suitable for expansion joint yes Surface Strip galvanized Version for Strap Width 190 mm With equipotential bonding yes - All types
- Downloads
-
Data sheet VL 19028E / 7400960 , 0.10MB , pdfEU declaration of conformity VL 19028E / 7400960 , 0.13MB , pdfLabel approval VDE symbol approval, EÜK , 0.12MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfNo invitation to tender text is available for this product.
