- Product description
-

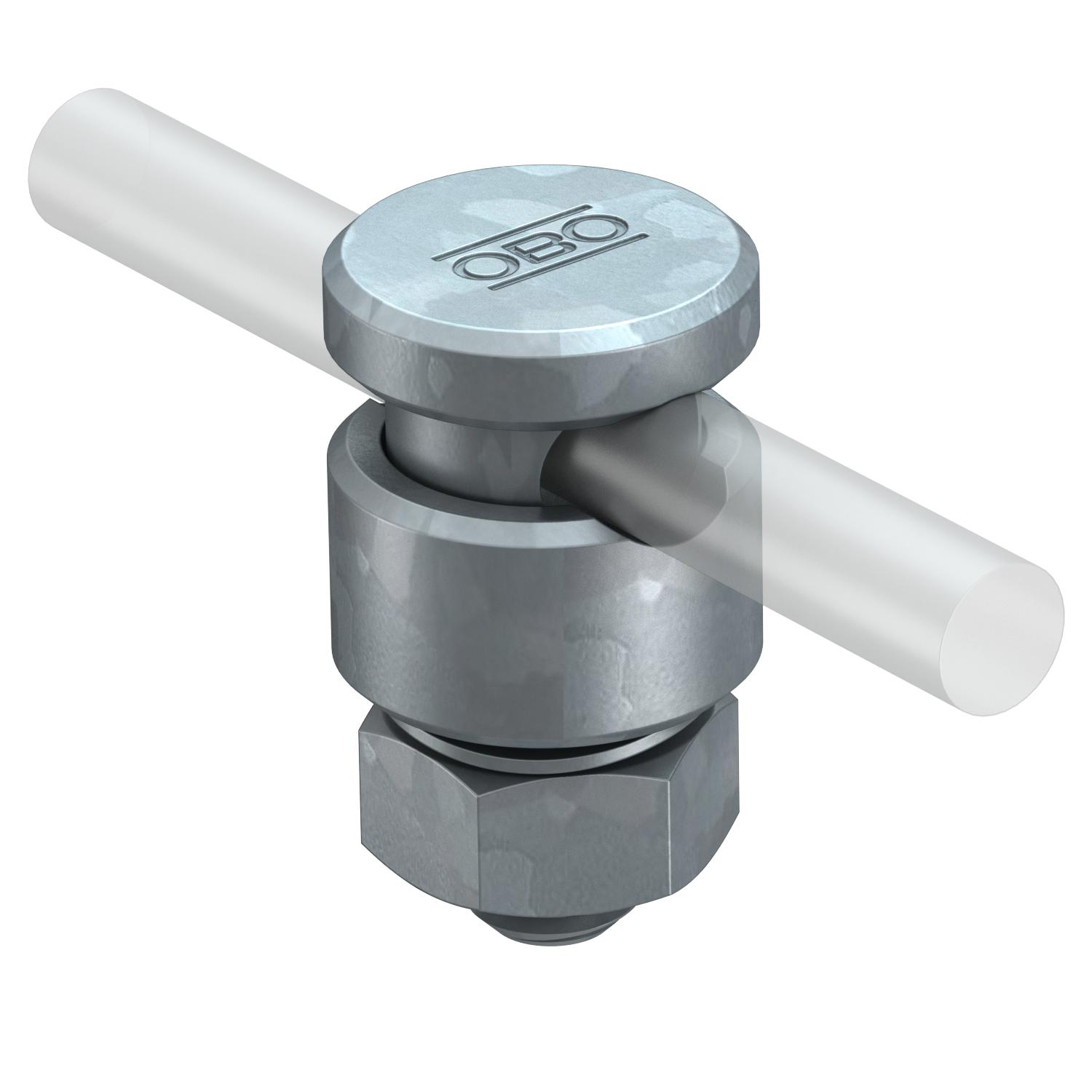

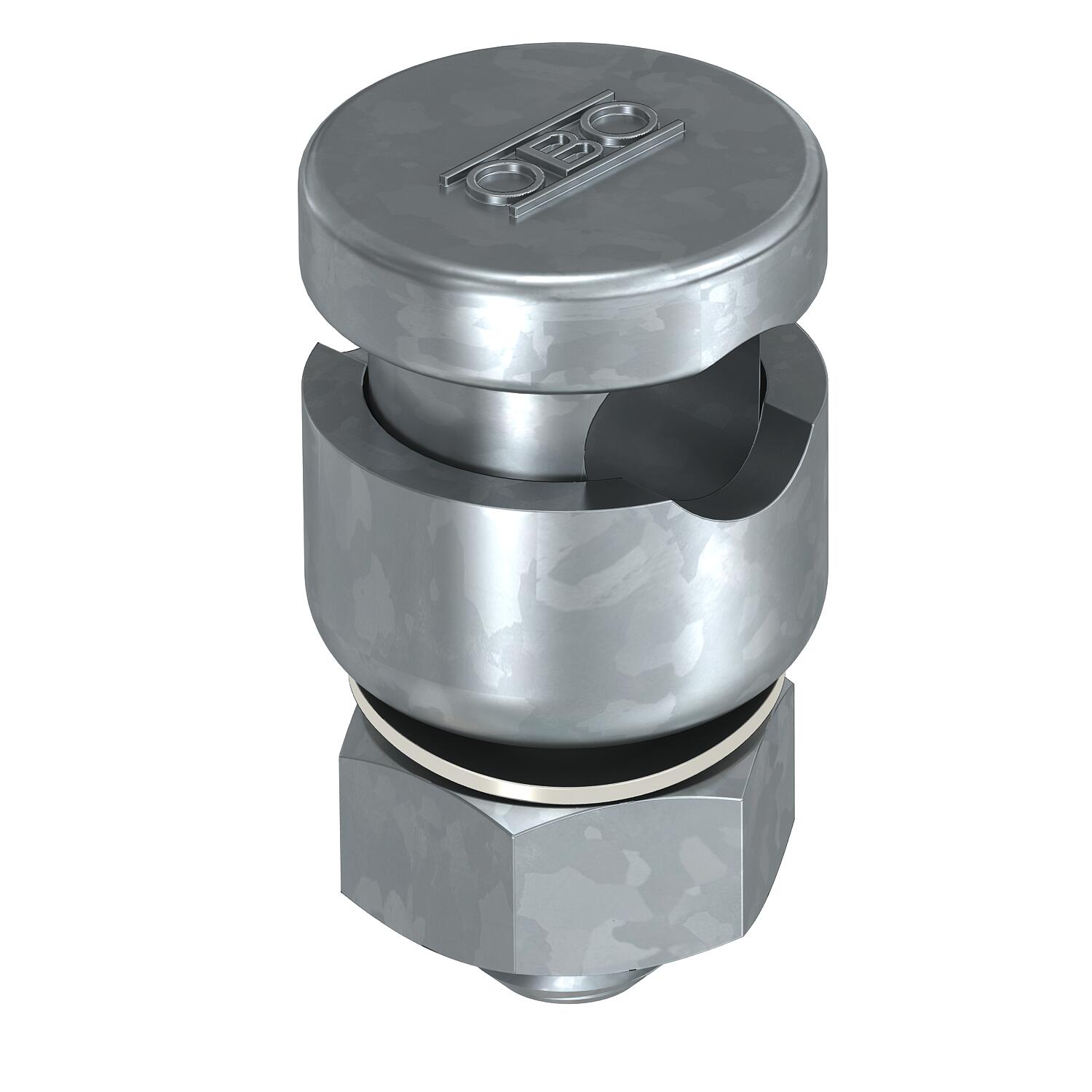

Product description• With 1 Fix-Kontakt clamping bolt, nut and spring washer
• With pre-mounted pressure trough
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material Steel Suitable for connection Miscellaneous Surface Hot-dip galvanised Type of connector Connectors Type of fastening screw Clamping screw - All types
- Downloads
-
Data sheet 5001 N-FT / 5304164 , 0.18MB , pdfEU declaration of conformity 5001 N-FT / 5304164 , 0.06MB , pdfREACH Declaration of conformity 5001 N-FT / 5304164 , 0.27MB , pdfRoHS Declaration of conformity 5001 N-FT / 5304164 , 0.12MB , pdfMounting instructions Mounting instructions, 5001 N-FT; 5001 N-VA; 5001 N-CU , 2.00MB , pdf
