Note: This article is discontinued. You can find the current article here: 1198052 / Universal counter-trough, plastic

Counter-trough, plastic 16–17 mm slot width

Item no. / Types

Dimension B

Dimension H

Dimension L	40 mm

Clamping range D, min.

Clamping range D, max.

Product description

Product description

Counter trough 46–52 mm

Technical data

Clamping range D, max.	52 mm
Clamping range D, min.	46 mm
Colour	Light grey; RAL 7035
Counter-trough/clip version	Counter sleeve
CO₂ Footprint (GWP) Cradle-to-Gate	0,015 kg CO₂e / 1 Piece
Dimension	46-52mm

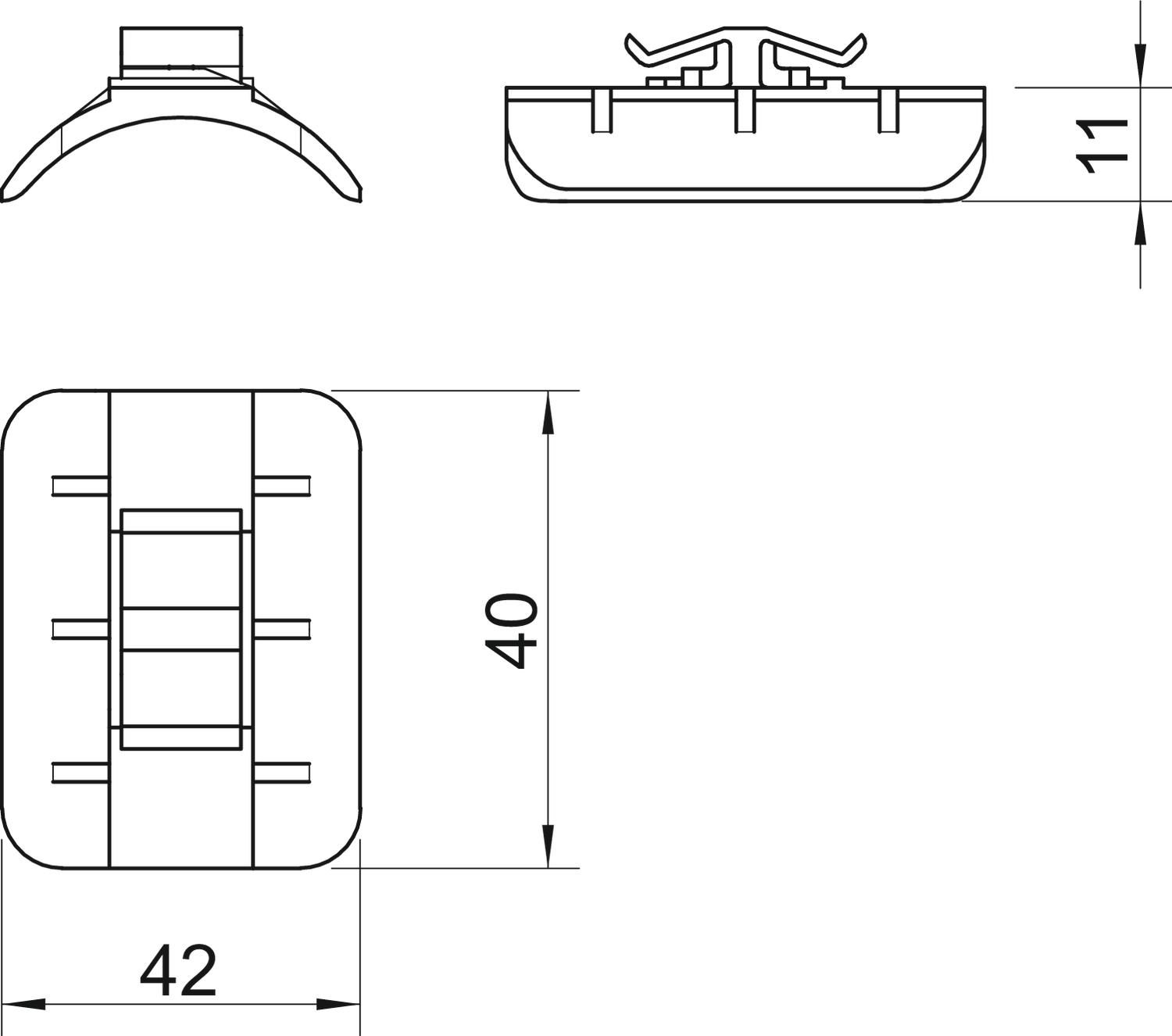

Dimension B	42 mm
Dimension H	11 mm
Dimension L	40 mm
Halogen-free	yes
Material	Polypropylene
Suitable for max. cable diameter	52 mm

All types

All types

Types	Dimension B	Dimension H	Dimension L	Clamping range D, min.	Clamping range D, max.	Item no.	Quantity	SSU
2058 34 LGR	30 mm	9.5 mm	40 mm	28 mm	34 mm	1195344	piece	100 piece
2058 40 LGR	35 mm	10.8 mm	40 mm	34 mm	40 mm	1195409	piece	100 piece
2058 46 LGR	40 mm	12.2 mm	40 mm	40 mm	46 mm	1195468	piece	100 piece
2058 52 LGR	42 mm	11 mm	40 mm	46 mm	52 mm	1195522	piece	100 piece
2058 58 LGR	45 mm	11.5 mm	40 mm	52 mm	58 mm	1195581	piece	100 piece

Downloads
