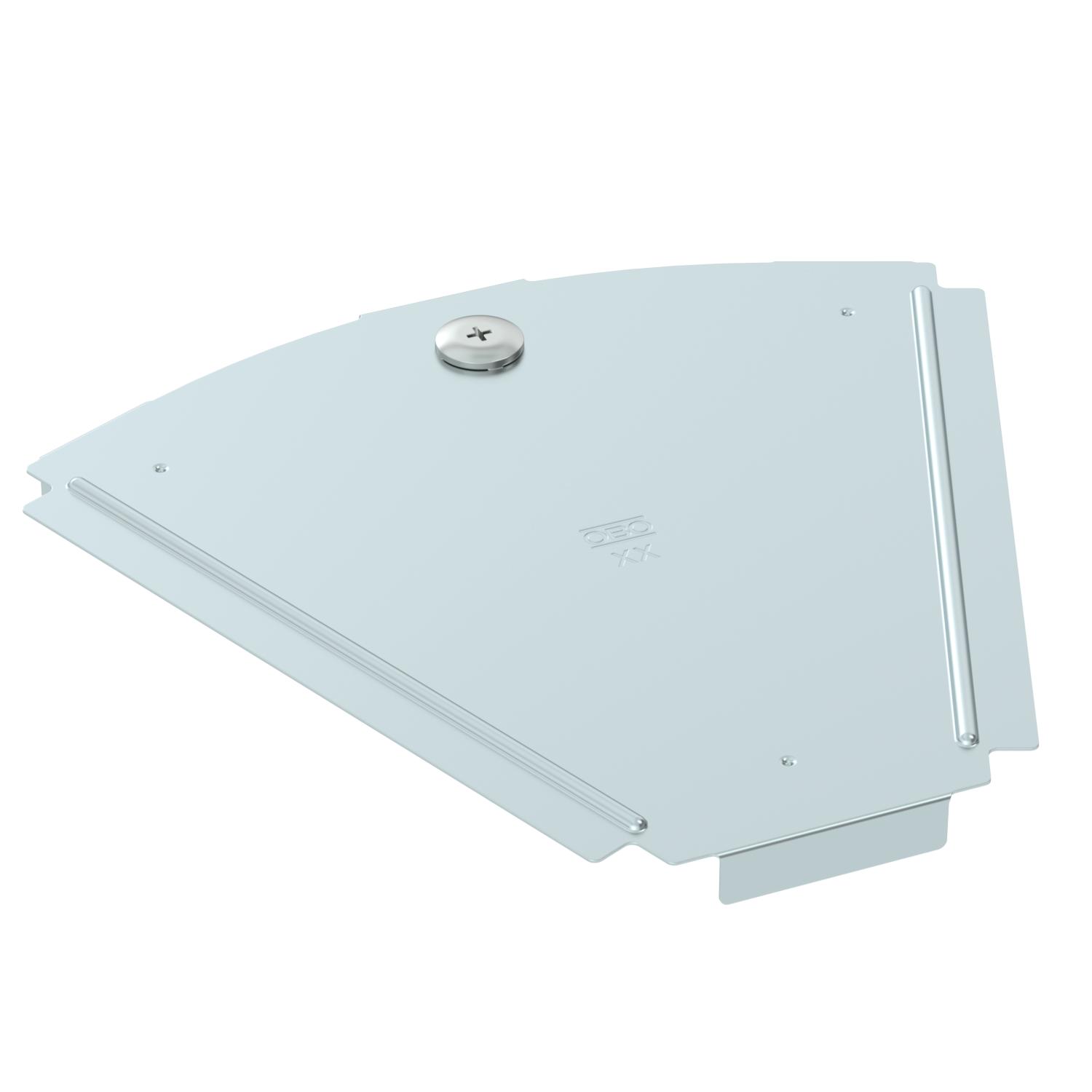

Cover, 45° bend DD
Item no. 6036454 | EAN 4012197406578
- Product description
-
Product description
Cover for 45° bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.
-
- Technical data
-
Technical data

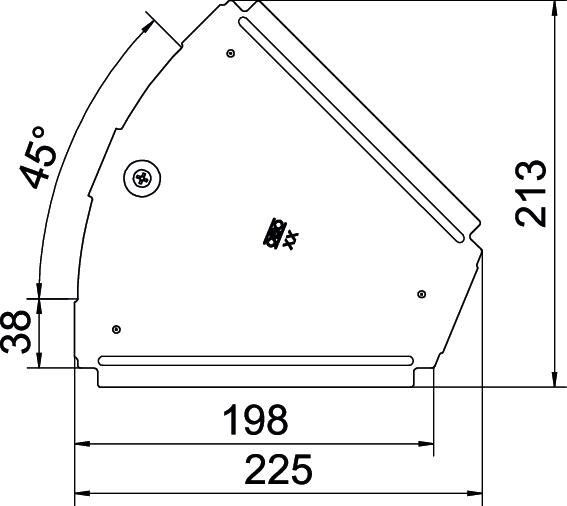

Bend (angle) 45° Change of direction Horizontal Dimension B200mm Fastening type Sash lock Hinged no Length 225 mm Maintain electrical functions no Material Steel Number of turn buckles 1 St. Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,75 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanised zinc/aluminium, Double Dip Width 200 mm - All types
