Cover for add-on tee, BKRS

Item no. 6049423 | EAN 4012197309756

Item no. / Types

Width

Plate thickness	2 mm

Product description

Product description

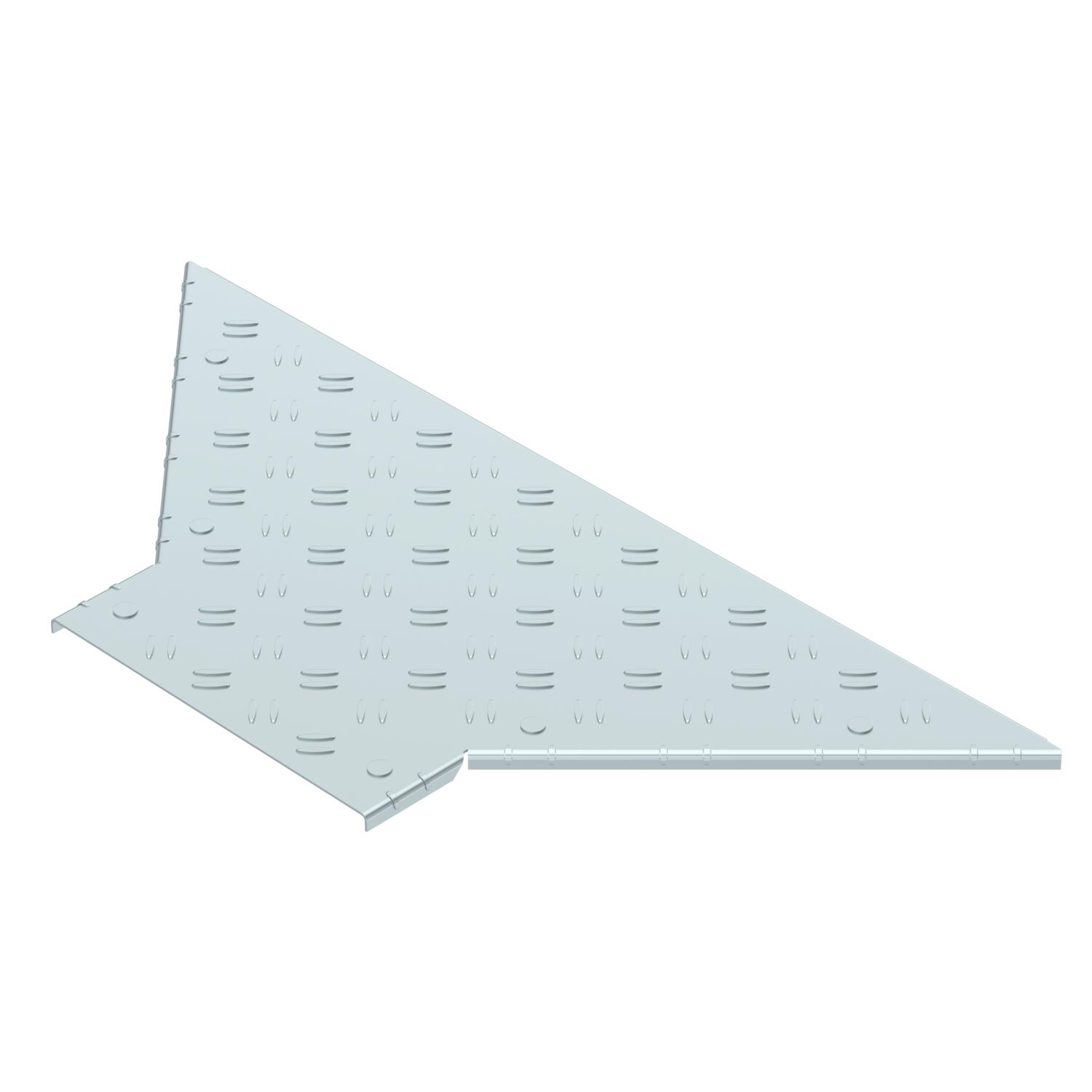

Unperforated cover with chequer plate for add-on tee fitting for BKRS walkable cable tray system. Suitable for mounting in indoor areas. To protect the cables against damage and soiling. With pre-marked break-out openings for fastening with turn buckles. Turn buckles not contained in scope of supply.

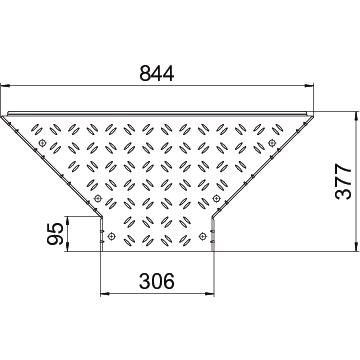

Technical data

Technical data

Colour	zinc
Dimension	B300mm
Dimension B	300 mm
Fastening type	On top
Height	16 mm
Length	286 mm
Material	Steel
Material thickness	2 mm
Permitted temperature range, max.	120 °C

Permitted temperature range, min.	-20 °C
Plate thickness	2 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Surface	Strip galvanized
Wide-span version	no
Width	846 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
DFAA BKRS 200 FS	746 mm	2 mm	6049421	piece	1 piece
DFAA BKRS 300 FS	846 mm	2 mm	6049423	piece	1 piece
DFAA BKRS 400 FS	946 mm	2 mm	6049425	piece	1 piece
DFAA BKRS 500 FS	1046 mm	2 mm	6049427	piece	1 piece
DFAA BKRS 600 FS	1146 mm	2 mm	6049429	piece	1 piece
