Cross-over 60 FS

Item no. 7027313 | EAN 4012197338480

Item no. / Types

Width

Product description

Product description

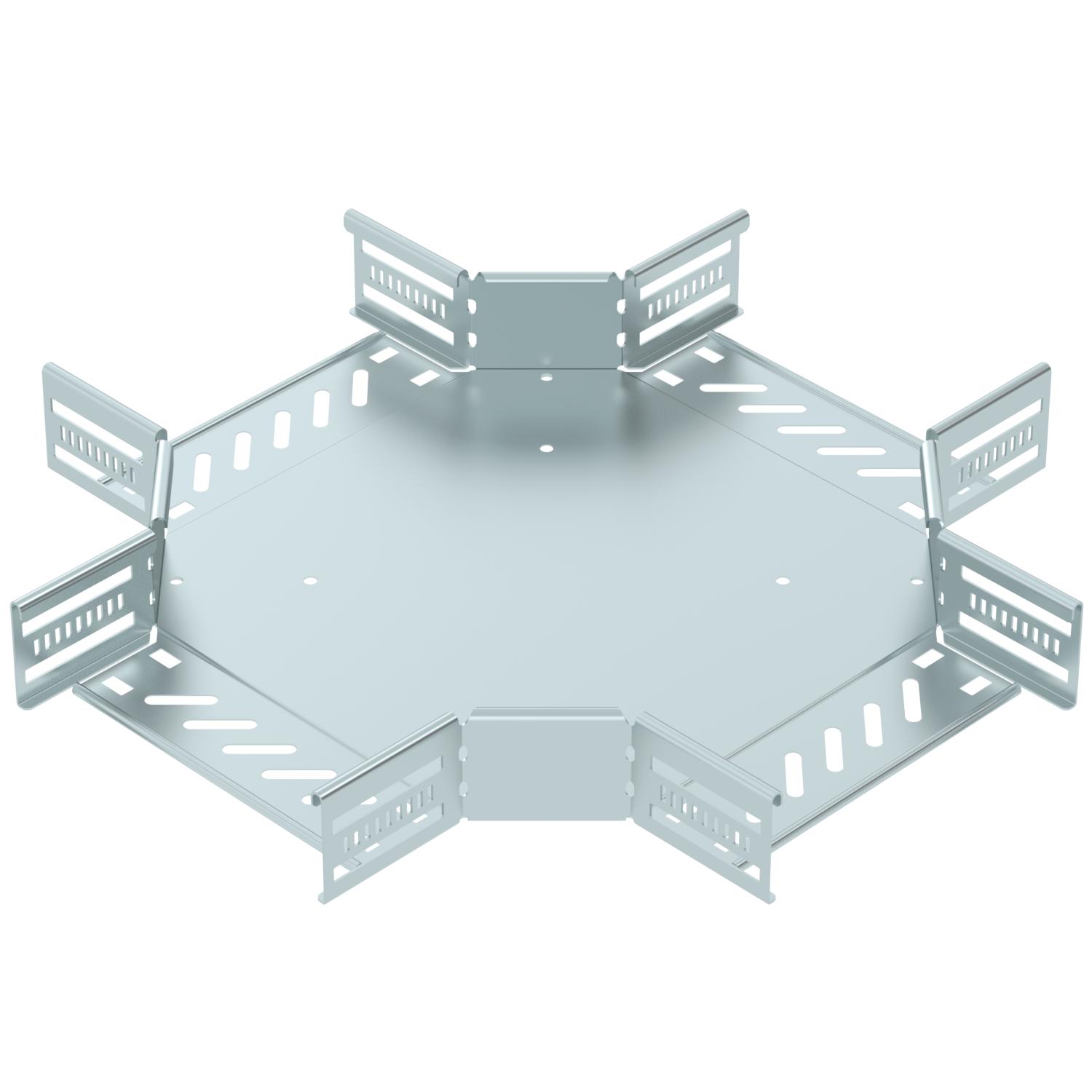

Cross-over for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.

Technical data

Technical data

Colour	zinc
Connector version	Integrated connector

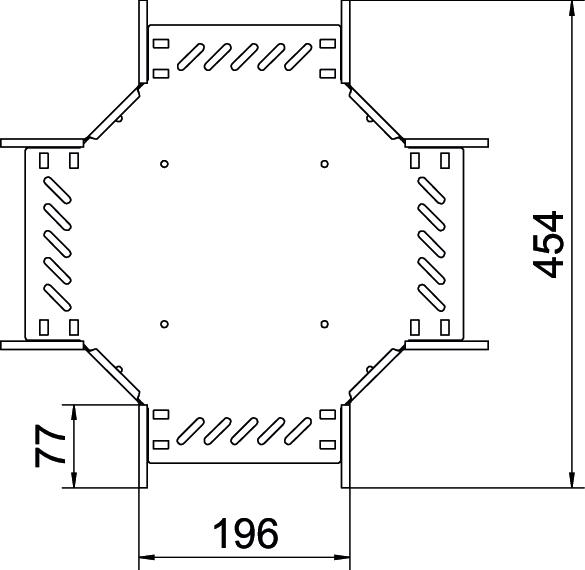

Dimension	60x200
Dimension B	200 mm
Height	60 mm
Maintain electrical functions	yes
Material	Steel
Material thickness, floor plate	0,8 mm
NATO hole pattern	no
Permitted temperature range, max.	120 °C

Permitted temperature range, min.	-20 °C
Plate thickness	0,8 mm
Rail thickness	1,25 mm
Recommended quantity of bolts	24 St.
Rustproof steel, pickled	no
Surface	Strip galvanized
Type of connector, cable support system	screwed/clamped
Wide-span version	no
Width	200 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
RK 610 FS	100 mm	7027311	piece	1 piece
RK 620 FS	200 mm	7027313	piece	1 piece
RK 630 FS	300 mm	7027315	piece	1 piece
RK 640 FS	400 mm	7027317	piece	1 piece
RK 650 FS	500 mm	7027319	piece	1 piece
RK 660 FS	600 mm	7027321	piece	1 piece
