Cross-over 60 FT
Item no. 7027417 | EAN 4012197339173
- Product description
-

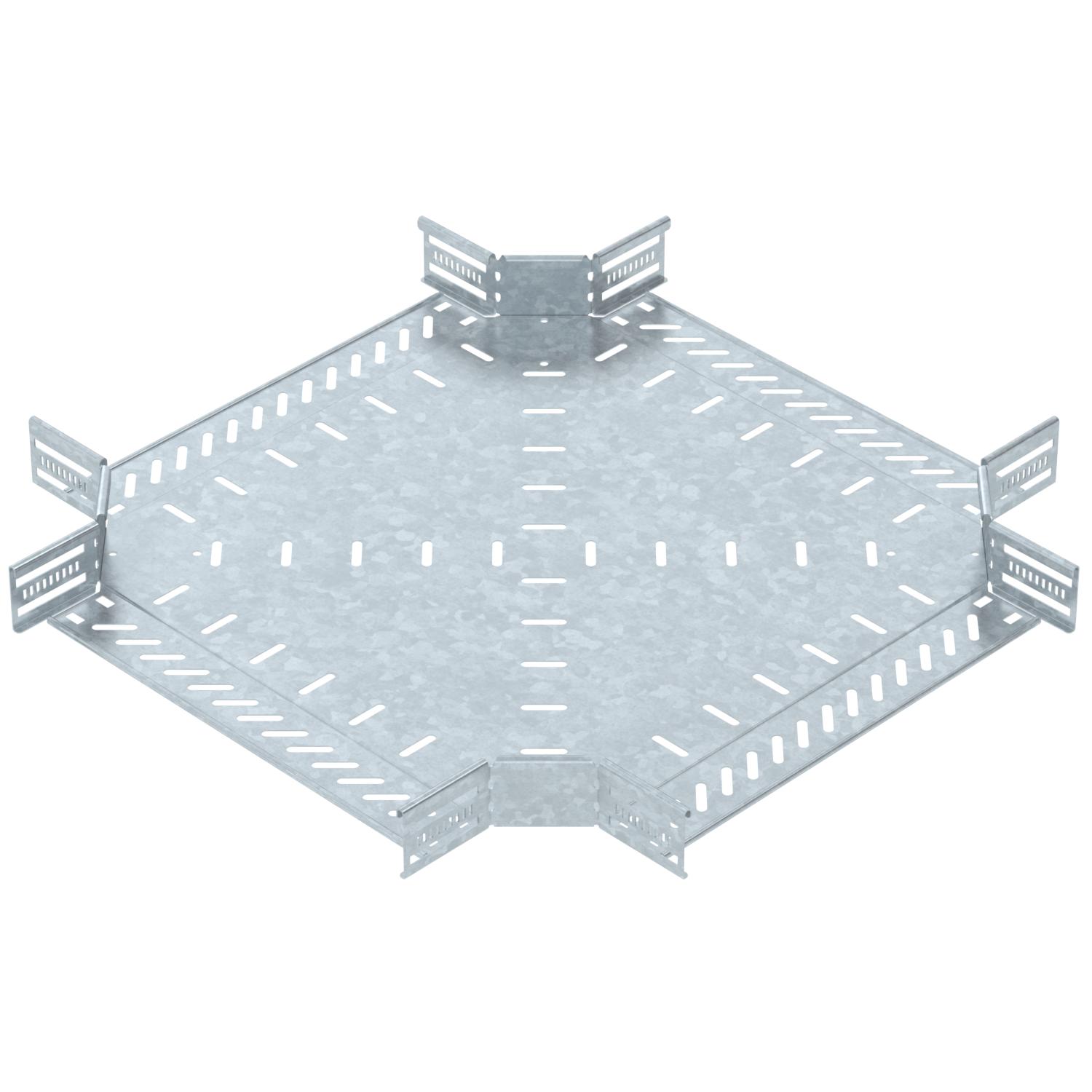

Product descriptionCross-over for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
- Technical data
-
Technical data

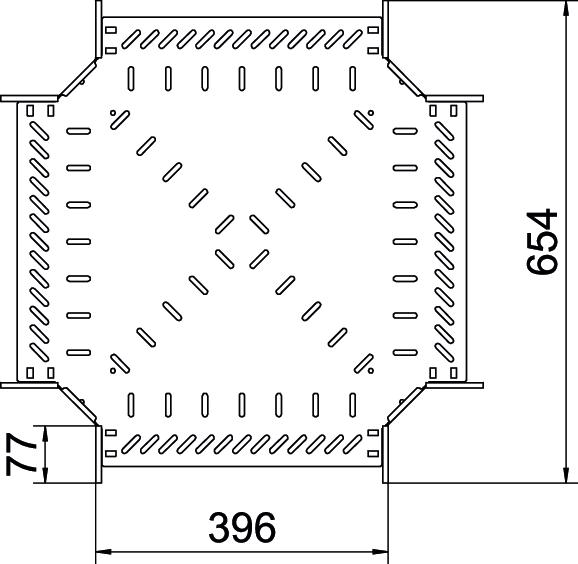

Colour zinc Connector version Integrated connector Dimension 60x400 Dimension B 400 mm Height 60 mm Maintain electrical functions yes Material Steel Material thickness, floor plate 1 mm NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 1 mm Rail thickness 1,25 mm Recommended quantity of bolts 28 St. Rustproof steel, pickled no Surface Hot-dip galvanised Type of connector, cable support system screwed/clamped Wide-span version no Width 400 mm - All types
- Downloads
-
Data sheet RK 640 FT / 7027417 , 0.20MB , pdfEU declaration of conformity RK 640 FT / 7027417 , 0.15MB , pdfREACH Declaration of conformity RK 640 FT / 7027417 , 0.12MB , pdfRoHS Declaration of conformity RK 640 FT / 7027417 , 0.13MB , pdfSelection aid Selection aid cable trays, screwable , 2.17MB , pdfSelection aid Selection aid for cable trays, Magic , 0.25MB , pdfMounting instructions Latchable Magic cable tray systems , 11.60MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Screwable cable trays with fittings for screwing and clamping , 5.42MB , pdf
