Flat conductor, copper

Item no. 5021830 | EAN 4012196431199

5021830 / FL 25-CU
25 mm
3 mm
Product description

Product description

• Can be used as a conductor and earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Complies with the requirements of VDE 0185-305 (IEC 62305)
• For lightning protection, earthing systems and ring equipotential bonding
  • Lightning current-tested
Technical data

Technical data

Cross-section 75 mm²

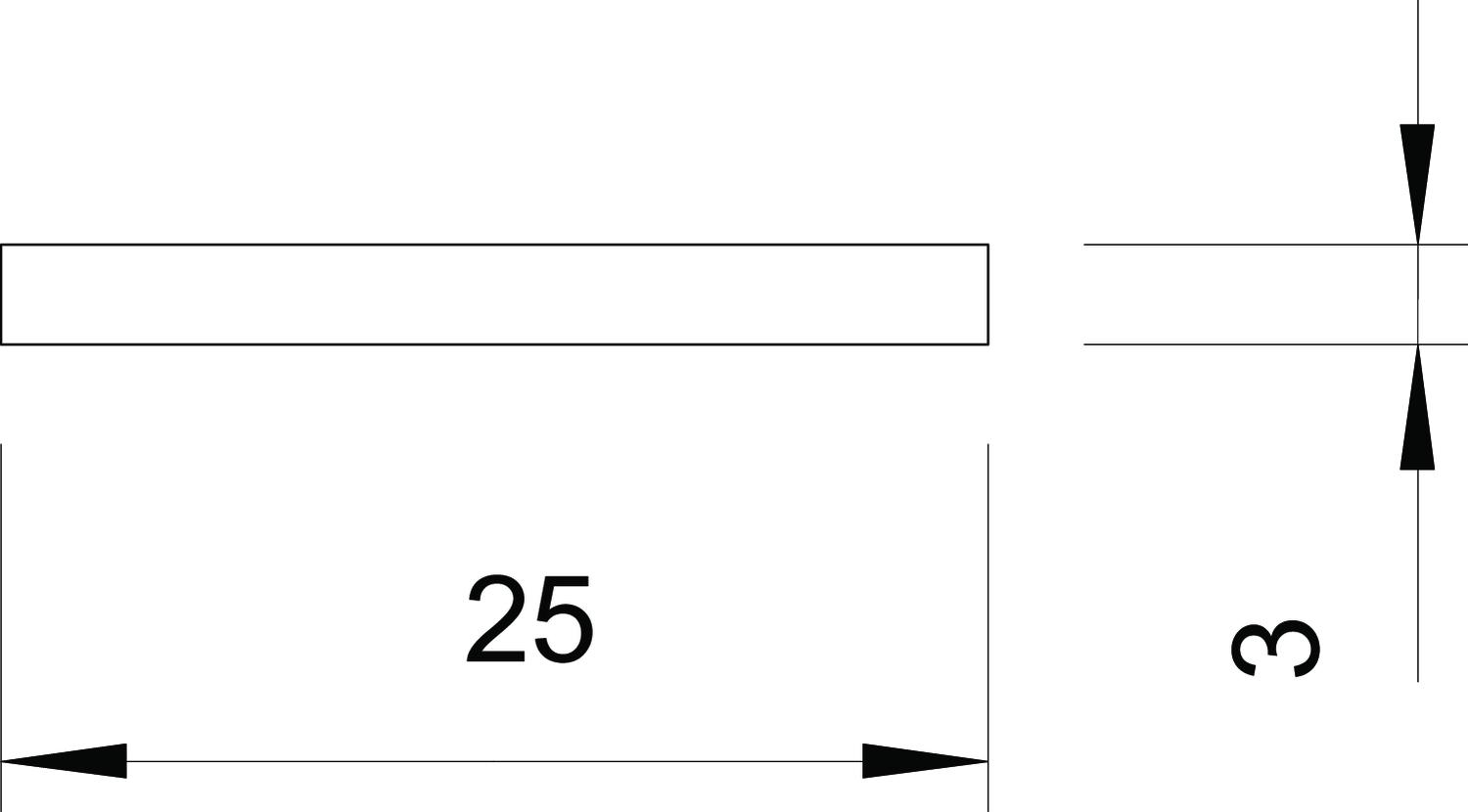

Dimension 25x3
Dimension B 25 mm
Dimension H 3 mm
Height 3 mm
Length 50 mm
Length tolerance ± 5 %
Material Copper
Nomal ring (approx. m) 50
Normal ring (ca. kg) 33
Width 25 mm
All types

All types

Types Width Height Item no. Quantity SSU
FL 25-CU 25 mm 3 mm 5021830
50 m
