Frame cassette for cord outlet, RKS, nominal size 250-3, stainless steel 15 | 13
morepic-1 morepic-2

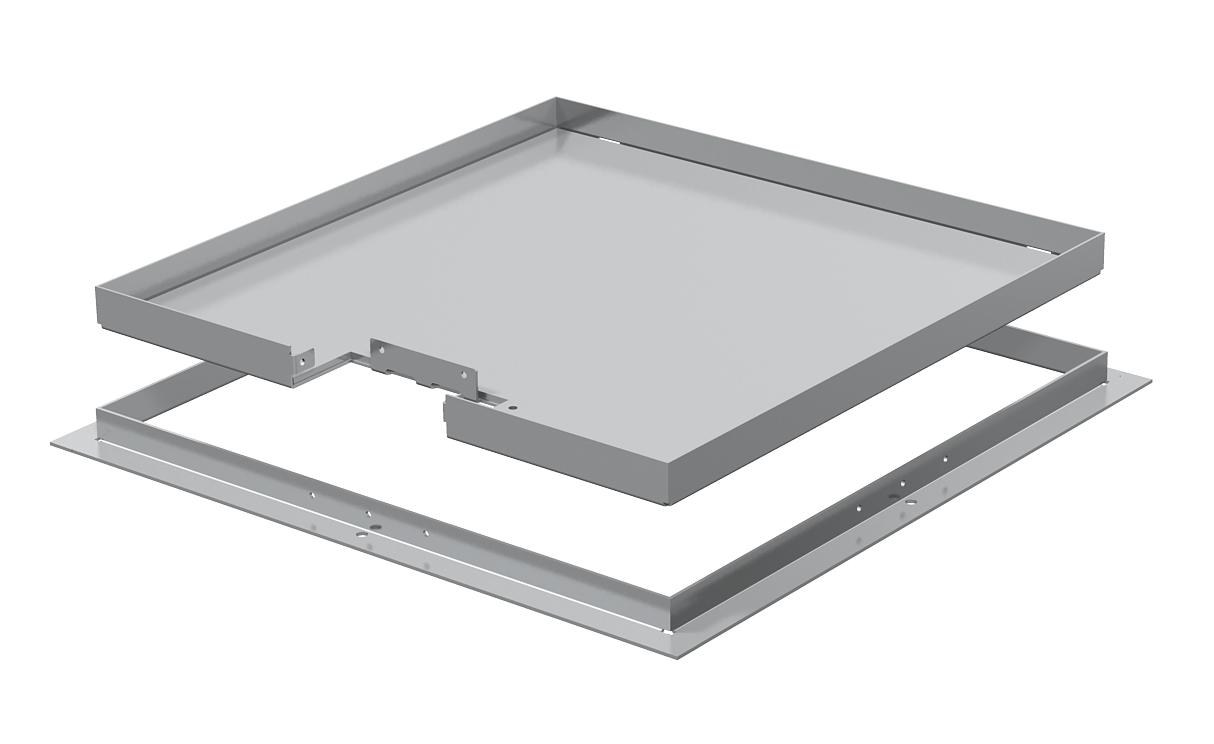

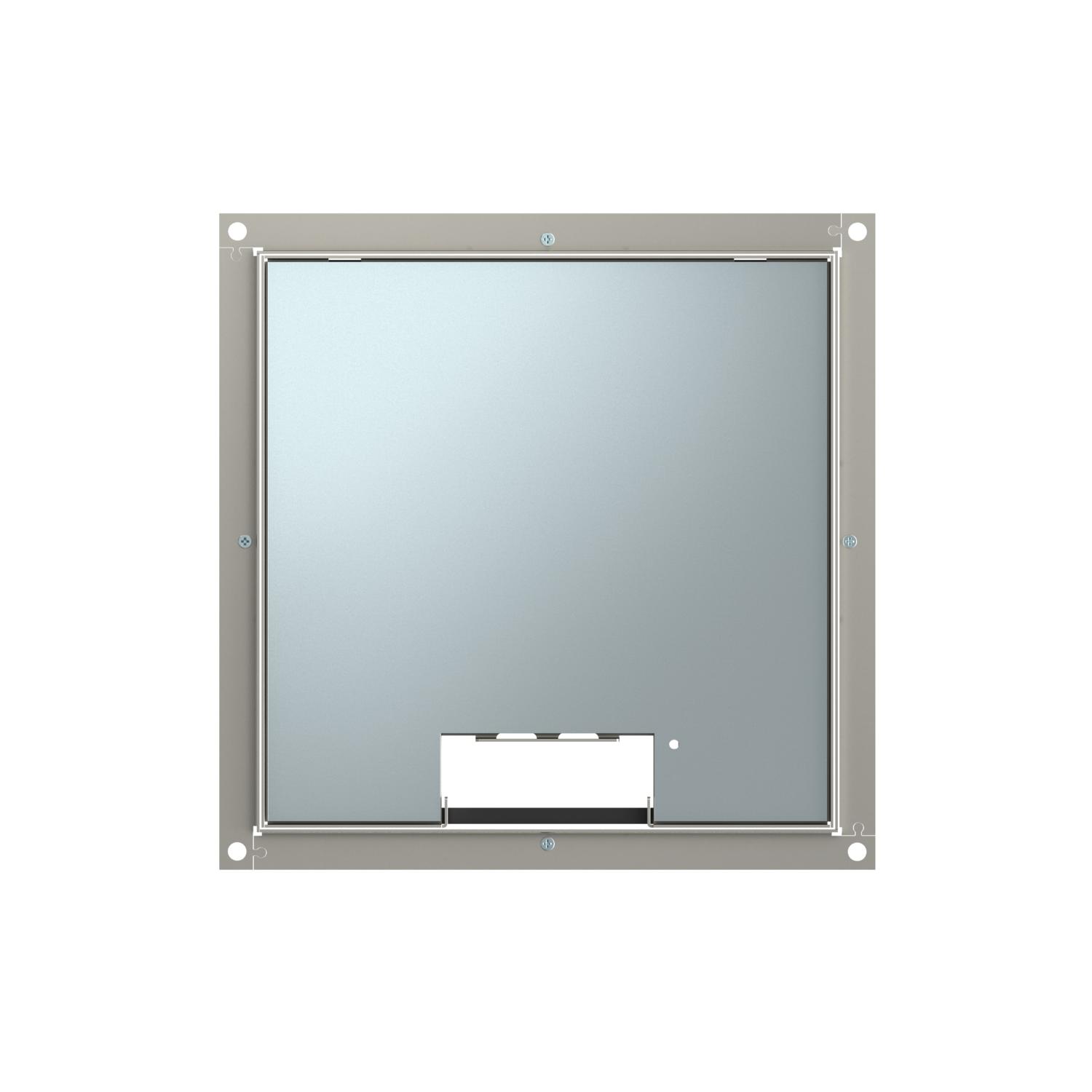

Frame cassette for cord outlet, RKS, nominal size 250-3, stainless steel

Item no. 7406550 | EAN 4012195108795

7406550 / RKS 2V2 15
15 mm
13 mm
Product description
Product description
Frame cassette for cord outlet, for UZD250-3, for the installation of accessories in dry or wet-cleaned floors for indoor use.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cable outlet version Swivellable cord outlet
Device support to accept mounting boxes no

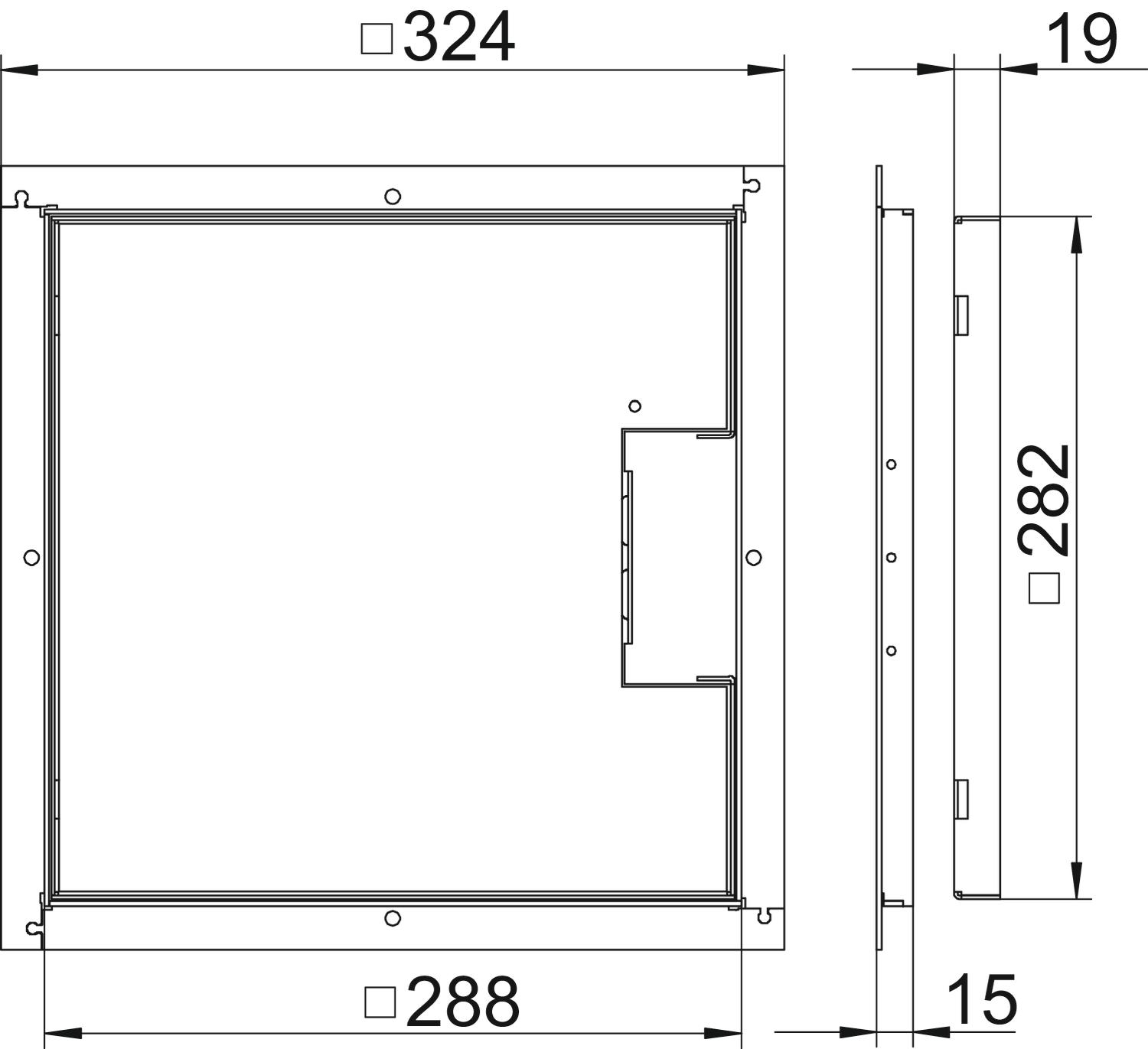

Dimension 282x282x15
Dimension A 324 mm
Dimension B 288 mm
Dimension C 282 mm
Dimension h 15 mm
Floor care Dry
Floor covering thickness 13 mm
Material Stainless steel
Number of cable outlets 1
All types

All types

Types Dimension h Floor covering thickness Item no. Quantity SSU
RKS 2V2 15 15 mm 13 mm 7406550
1 piece
Downloads

Download

Download

Download

Download

No invitation to tender text is available for this product.
