Note: This article is discontinued.
You can find the current article here: 7408725 / UT4 universal support, without cover plate, system length 208 mm
GB3 mounting box, system length 208 mm
Item no. 7407324 | EAN 4012195111412
- Product description
-

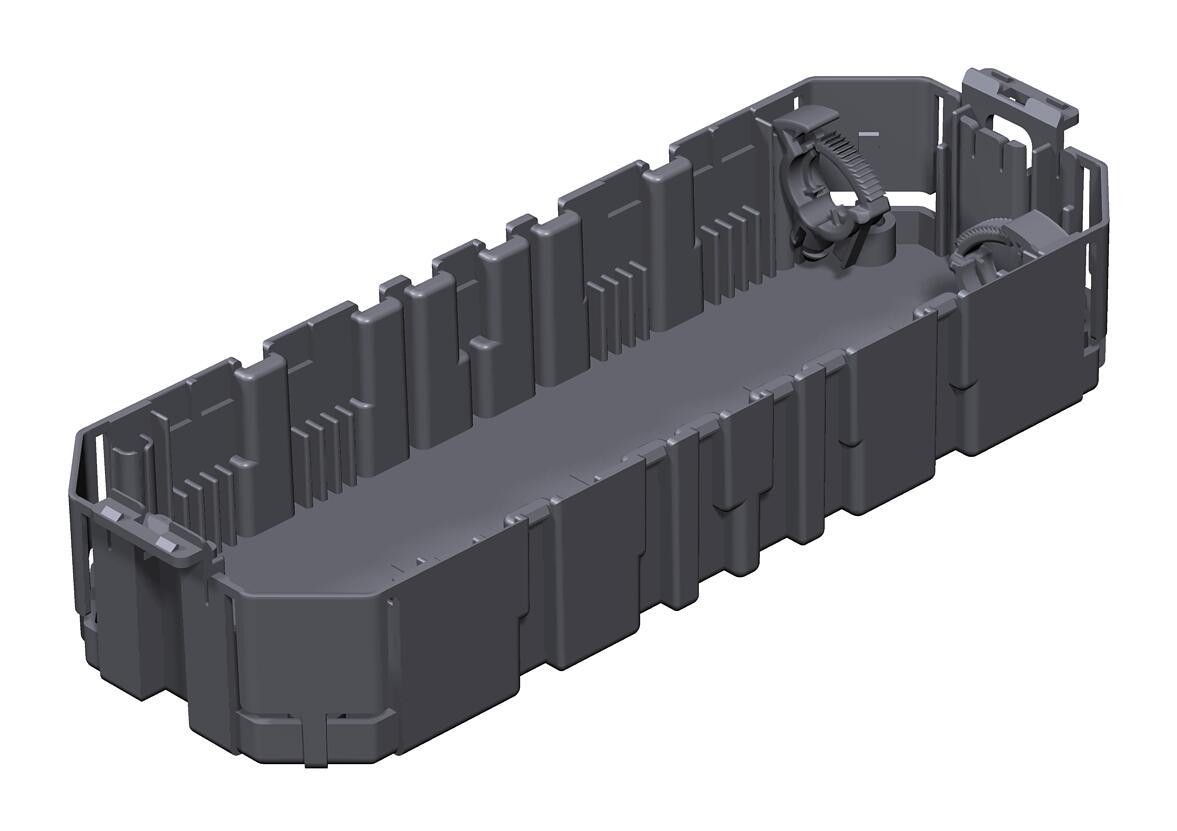

Product descriptionEmpty mounting box with two strain reliefs for incoming and outgoing cables. Suitable for the installation of up to three standard or up to four Modul 45® accessories in cover plates.
-
- Technical data
-
Technical data

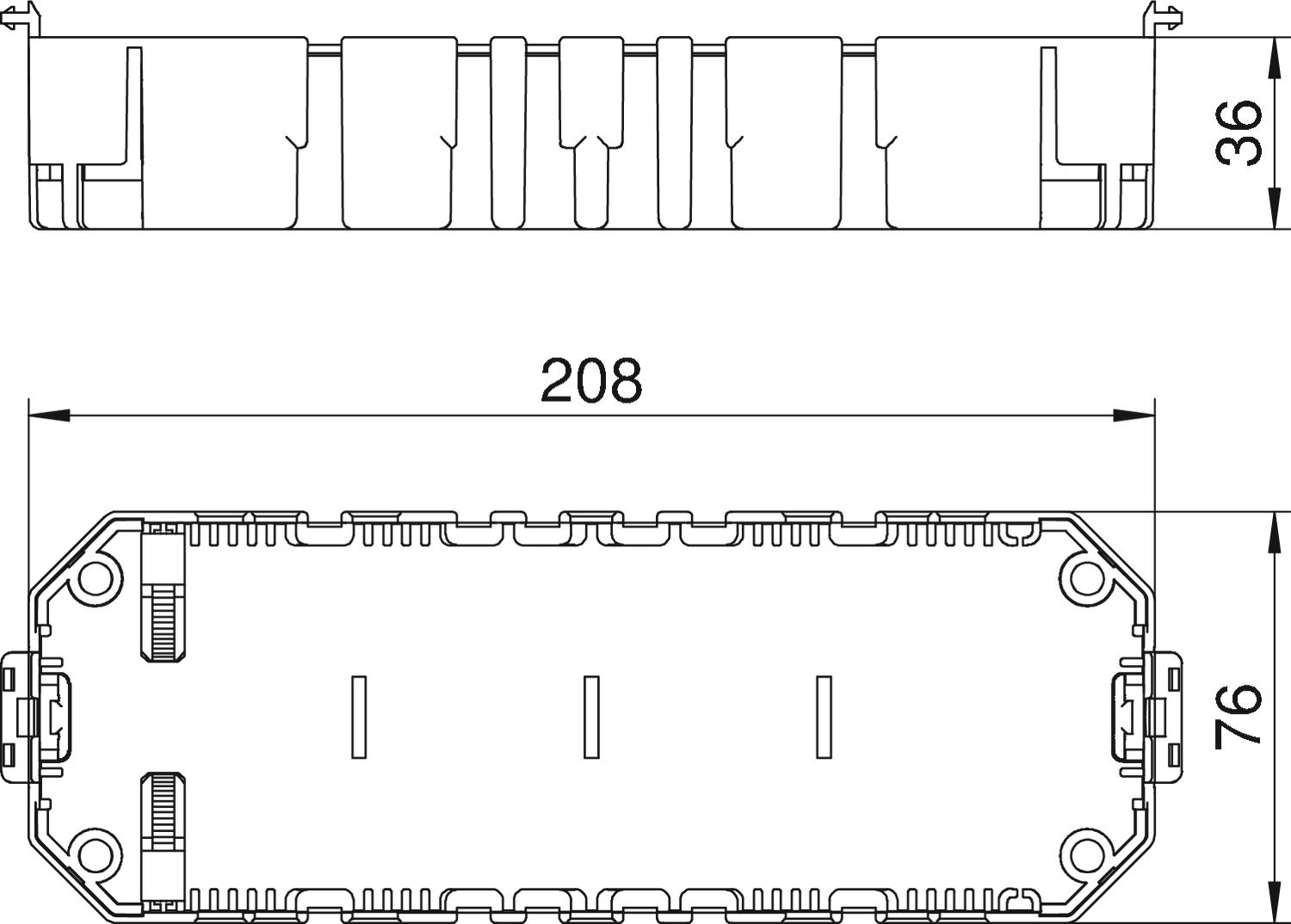

Accessory mounting type Lock Colour Graphite black; RAL 9011 Depth 36 mm Dimension 208x76x39 Floor plate no Length 208 mm Material Polyamide No. of entries 4 Number of installable devices 4 Number of strain reliefs 2 Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes Version for Socket shape Width 76 mm - All types
- Downloads
-
Data sheet GB3 / 7407324 , 0.17MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
