GES2 service outlet with handle clamp 5 | 2 | Iron grey; RAL 7011

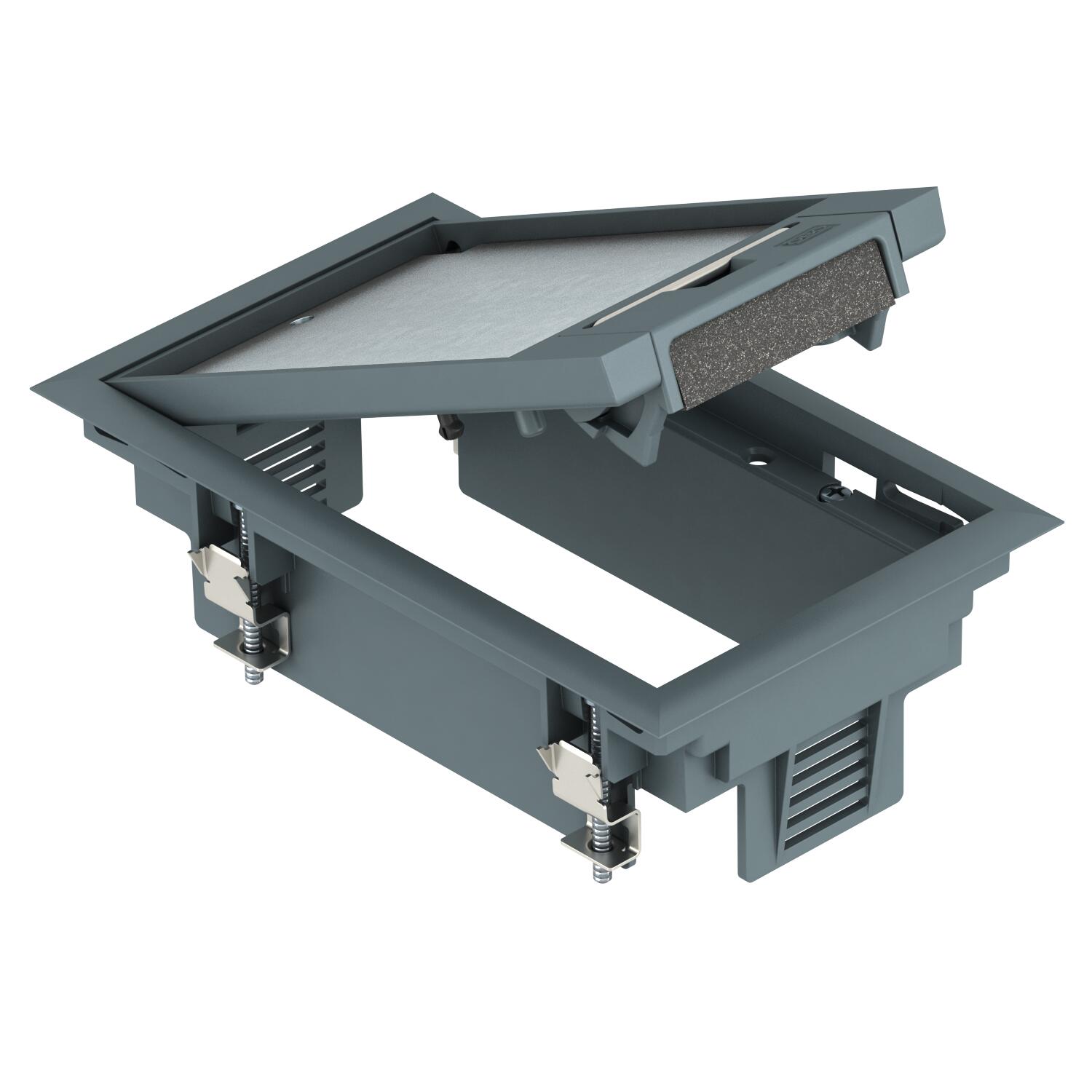

GES2 service outlet with handle clamp

Item no. 7405116 | EAN 4012195102182

Item no. / Types	7405116 / GES2 U 7011

Floor covering thickness	5 mm

Nominal size for device installation units	2

Colour	Iron grey; RAL 7011

Product description

Product description

Service outlet with handle clamp for up to 3 individual Modul 45 devices in one UT3 universal support, use in duct systems and system floors for indoor use.
Service outlet with handle clamp, 1-compartment, for the installation of MT2 mounting support.

Technical data

Technical data

Approvals	VDE
Cable outlet version	Swivellable cord outlet
Colour	Iron grey; RAL 7011
Device support to accept mounting boxes	yes

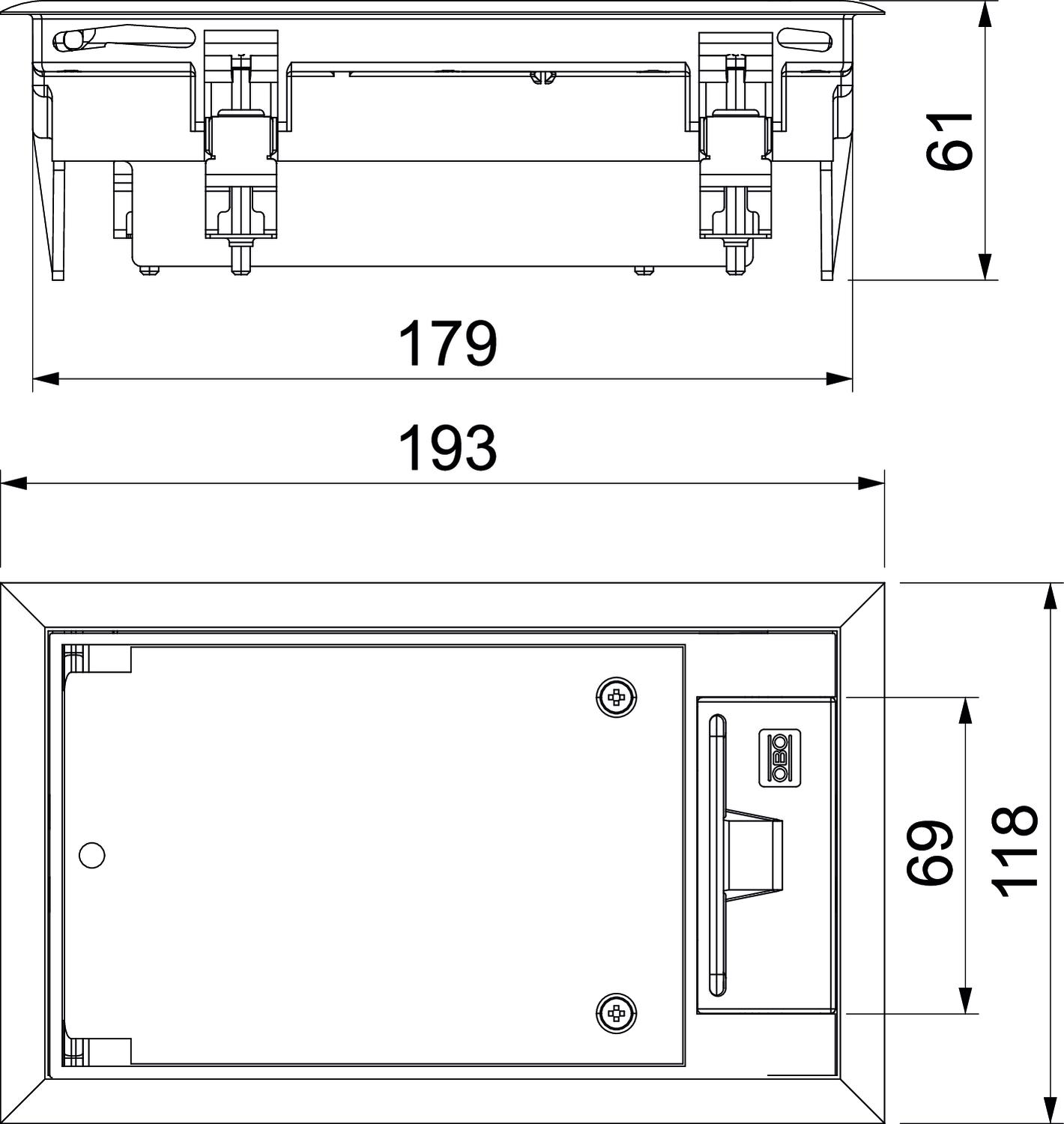

Dimension	192x118x70
Dimension h	73 mm
Floor care	Dry
Floor covering thickness	5 mm
Floor height, min.	73 mm
Frame version	Carpet protection frame
Heavy-duty version	no
Installation depth	73 mm
Installation system type	UT3
Length of external dimensions	194 mm
Length of installation dimensions	180 mm
Material	Polyamide
Nominal size for device installation units	2
Number of installable devices	3
Number of mounting boxes	1

Opening mechanism	Handle
Protection rating (IP) when unused	IP40
Protection rating (IP) when used	IP20
Protection rating IK code	IK08
Seal installation option	no
Suitable for cavity floor installation	no
Suitable for outdoor use	no
Suitable for raised floor installation	no
Suitable for screed-covered underfloor ducts	yes
Suitable for screed-flush closed underfloor ducts	no
Suitable for underfloor ducts	yes
Suitable for wet care	no
Version for	Rectangular
Vertical load, large area	to 3,000 N
Vertical load, small area	to 3,000 N
Wide external dimensions	118 mm
Wide installation dimensions	104 mm
With floor covering recess	yes
