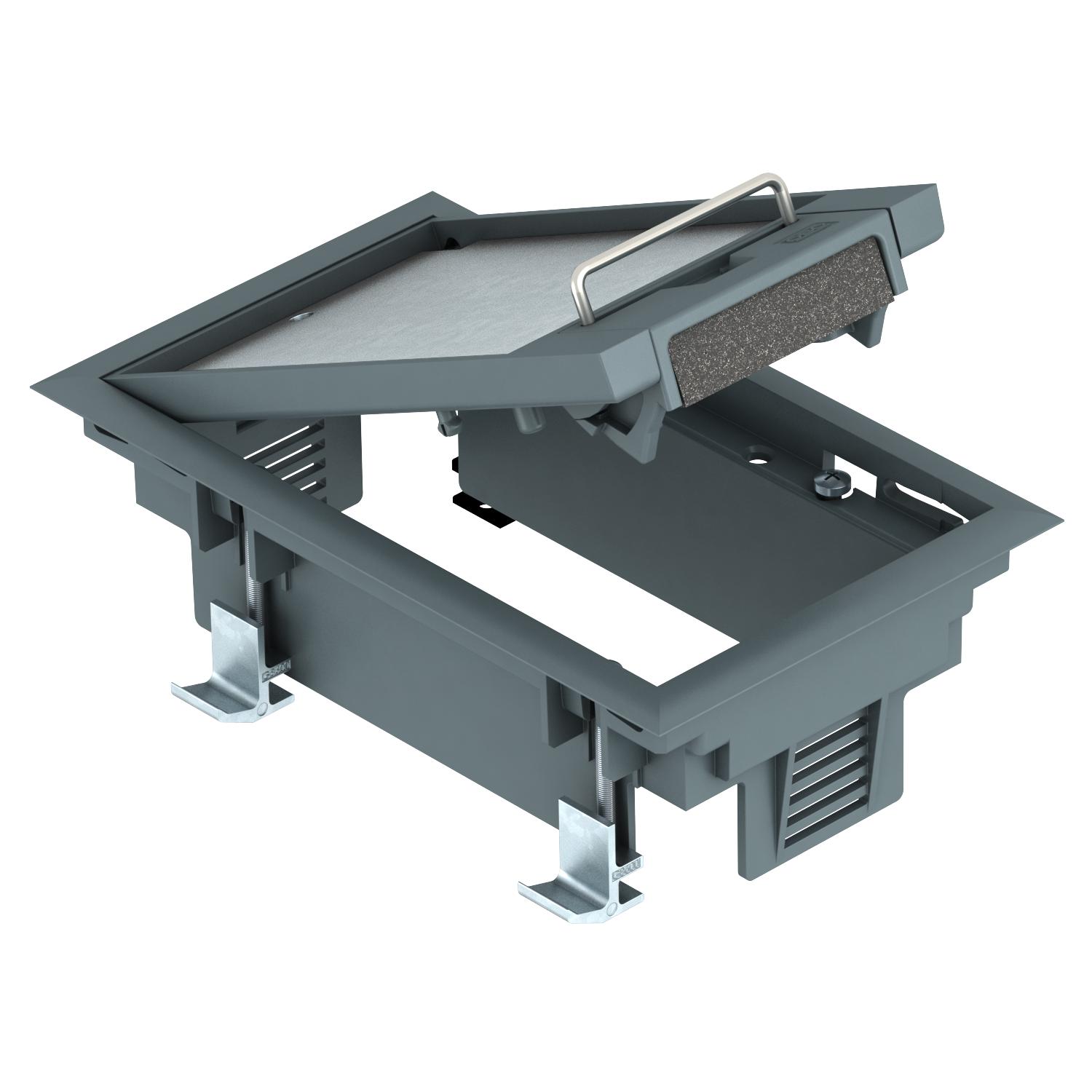

GES2DB service outlet with handle clamp
Item no. 7405100 | EAN 4012195102113
- Product description
-
Product descriptionService outlet with handle clamp for up to 3 individual Modul 45 devices in one UT3 universal support, use in duct systems and system floors for indoor use.
Service outlet with handle clamp, 1-compartment, for the installation of MT2 mounting support.
-
- Technical data
-
Technical data

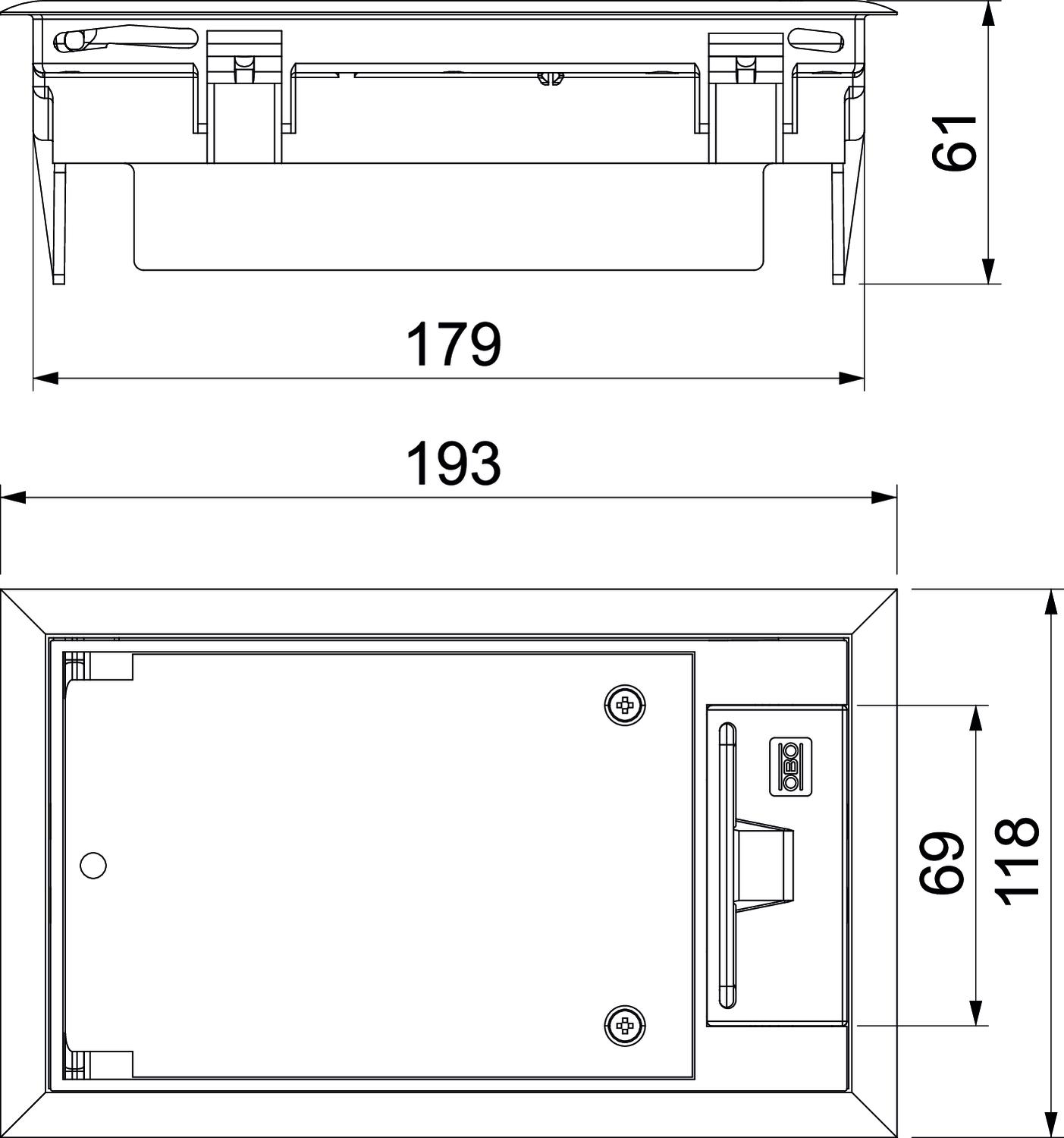

Approvals VDE Cable outlet version Swivellable cord outlet Colour Iron grey; RAL 7011 CO₂ Footprint (GWP) Cradle-to-Gate 1,342 kg CO₂e / 1 Piece Device support to accept mounting boxes yes Dimension 192x118x91 Dimension h 73 mm Floor care Dry Floor covering protection frame yes Floor covering thickness 5 mm Floor height, min. 73 mm Frame version Carpet protection frame Heavy-duty version no Installation depth 73 mm Installation system type UT3 Length of external dimensions 194 mm Length of installation dimensions 180 mm Material Polyamide Nominal size for device installation units 2 Number of installable devices 3 Number of mounting boxes 1 Opening mechanism Handle Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK08 Seal installation option no Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts no Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts no Suitable for wet care no Version for Rectangular Vertical load, large area to 3,000 N Vertical load, small area to 3,000 N Wide external dimensions 118 mm Wide installation dimensions 104 mm With floor covering recess yes - All types
-
System accessories
Products Types Item no. Quantity SSU
Ladder extensions
GES RV 7407536 2 piece - Downloads
-
Data sheet GES2 DB 7011 / 7405100 , 0.24MB , pdfEU declaration of conformity GES2 DB 7011 / 7405100 , 0.13MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
