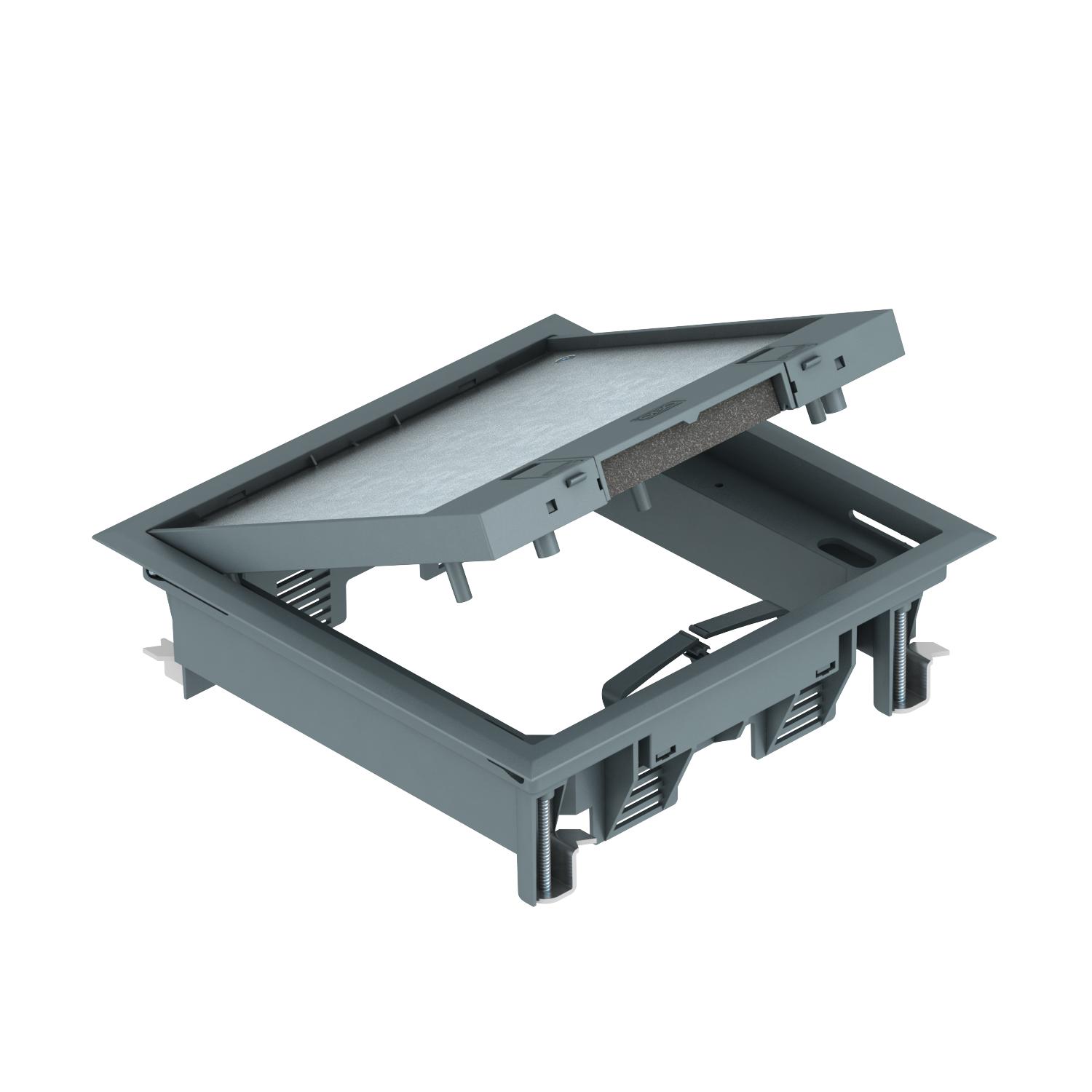

GES4 service outlet with locking slider
Item no. 7405145 | EAN 4012195890645
- Product description
-
Product descriptionService outlet with locking slider for up to 6 individual Modul 45 devices in 2 UT3 universal supports, use in trunking systems and system floors in indoor areas.
Floor covering recess in the hinged cover pre-adjusted to 5 mm, if necessary adjustable to 3, 8 or 10 mm.
Service outlet with locking slider, 2-compartment, for the installation of MT4 mounting support. Two type APMT2 cover plates can be installed.
Floor covering recess in the hinged cover pre-adjusted to 5 mm, if necessary adjustable to 3, 8 or 10 mm.
-
- Technical data
-
Technical data

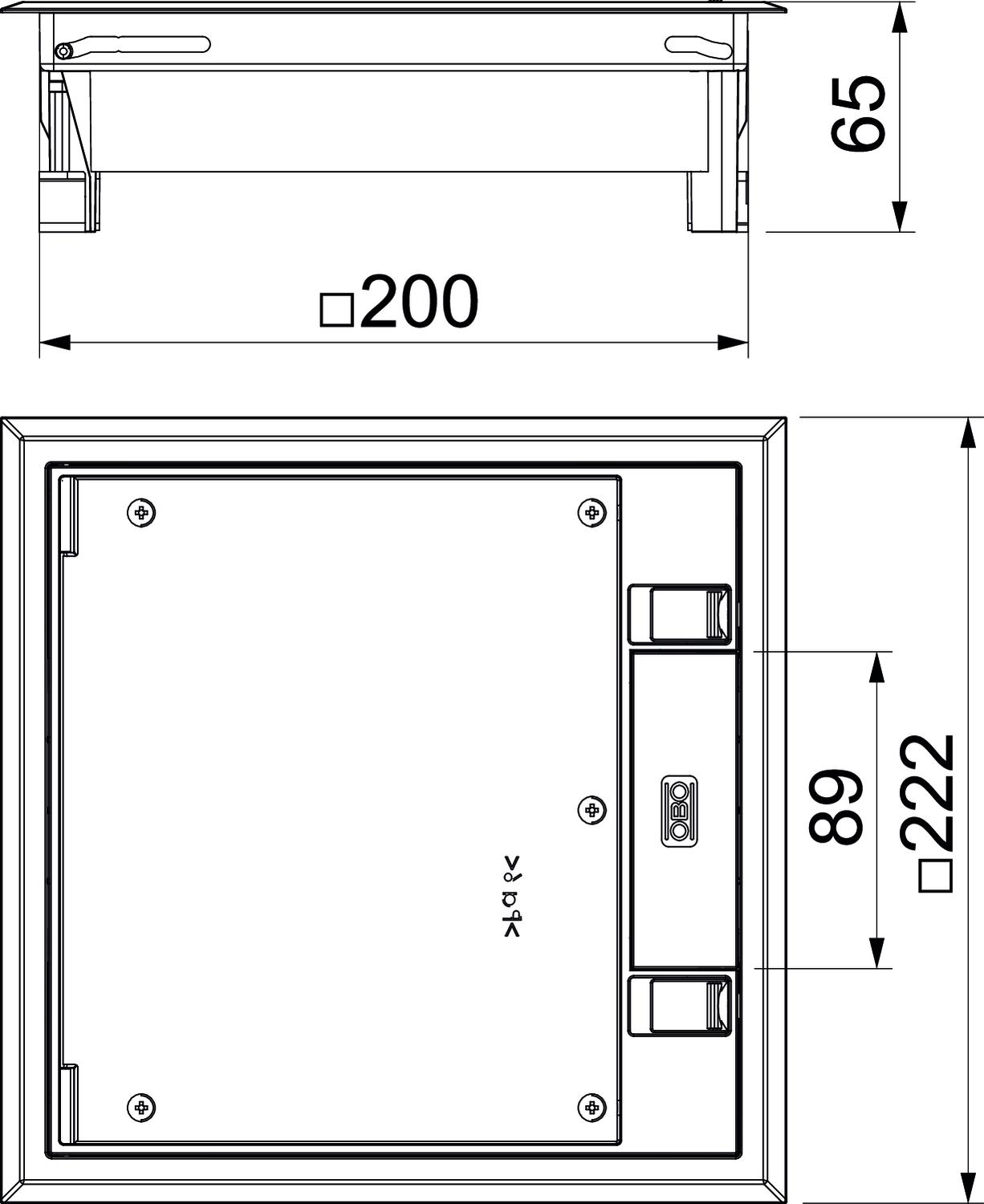

Approvals VDE Cable outlet version Swivellable cord outlet Colour Iron grey; RAL 7011 Device support to accept mounting boxes yes Dimension 222x222x65 Dimension h 73 mm Floor care Dry Floor covering protection frame yes Floor covering thickness 5 mm Floor height, min. 73 mm Frame version Carpet protection frame Heavy-duty version no Height 65 mm Installation depth 73 mm Installation system type UT3 Length 222 mm Length of external dimensions 222 mm Length of installation dimensions 201 mm Material Polyamide Nominal size for device installation units 4 Number of installable devices 6 Number of mounting boxes 2 Opening mechanism Locking slider Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK08 Screed height, min. 73 mm Seal installation option no Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts yes Suitable for wet care no Version for Square Vertical load, large area to 3,000 N Vertical load, small area to 2,000 N Wide external dimensions 222 mm Wide installation dimensions 201 mm Width 222 mm With floor covering recess yes - All types
-
System accessories
Products Types Item no. Quantity SSU
Ladder extensions
GES RV 7407536 2 piece - Downloads
-
Data sheet GES4-2U10T 7011 / 7405145 , 0.29MB , pdfEU declaration of conformity GES4-2U10T 7011 / 7405145 , 0.13MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfMounting instructions Mounting instructions GES 2U , 0.19MB , pdfNo invitation to tender text is available for this product.
