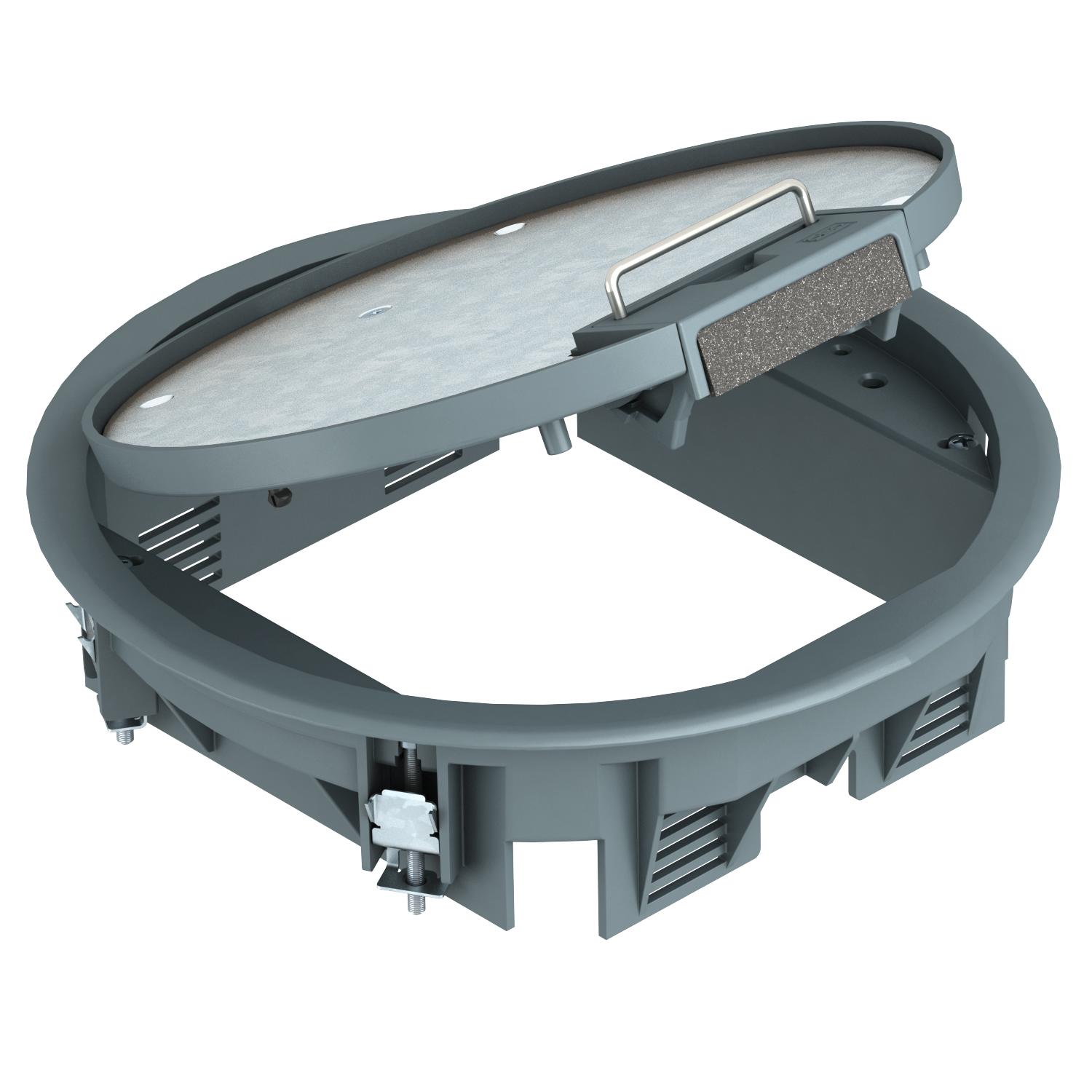

GESR4 service outlet with handle clamp 5 | R4 | Iron grey; RAL 7011

GESR4 service outlet with handle clamp

Item no. 7405436 | EAN 4012195103684

Item no. / Types

Floor covering thickness	5 mm

Nominal size for device installation units	R4

Colour

Product description

Product description

Service outlet with handle clamp for up to 6 individual Modul 45 devices in 2 UT3 universal supports, use in duct systems and system floors for indoor use.

Service outlet with handle clamp, 2-compartment, for the installation of MT4 mounting support. Two type APMT2 cover plates can be installed.

Technical data

Technical data

Approvals	VDE
Cable outlet version	Swivellable cord outlet
Colour	Iron grey; RAL 7011
Device support to accept mounting boxes	yes

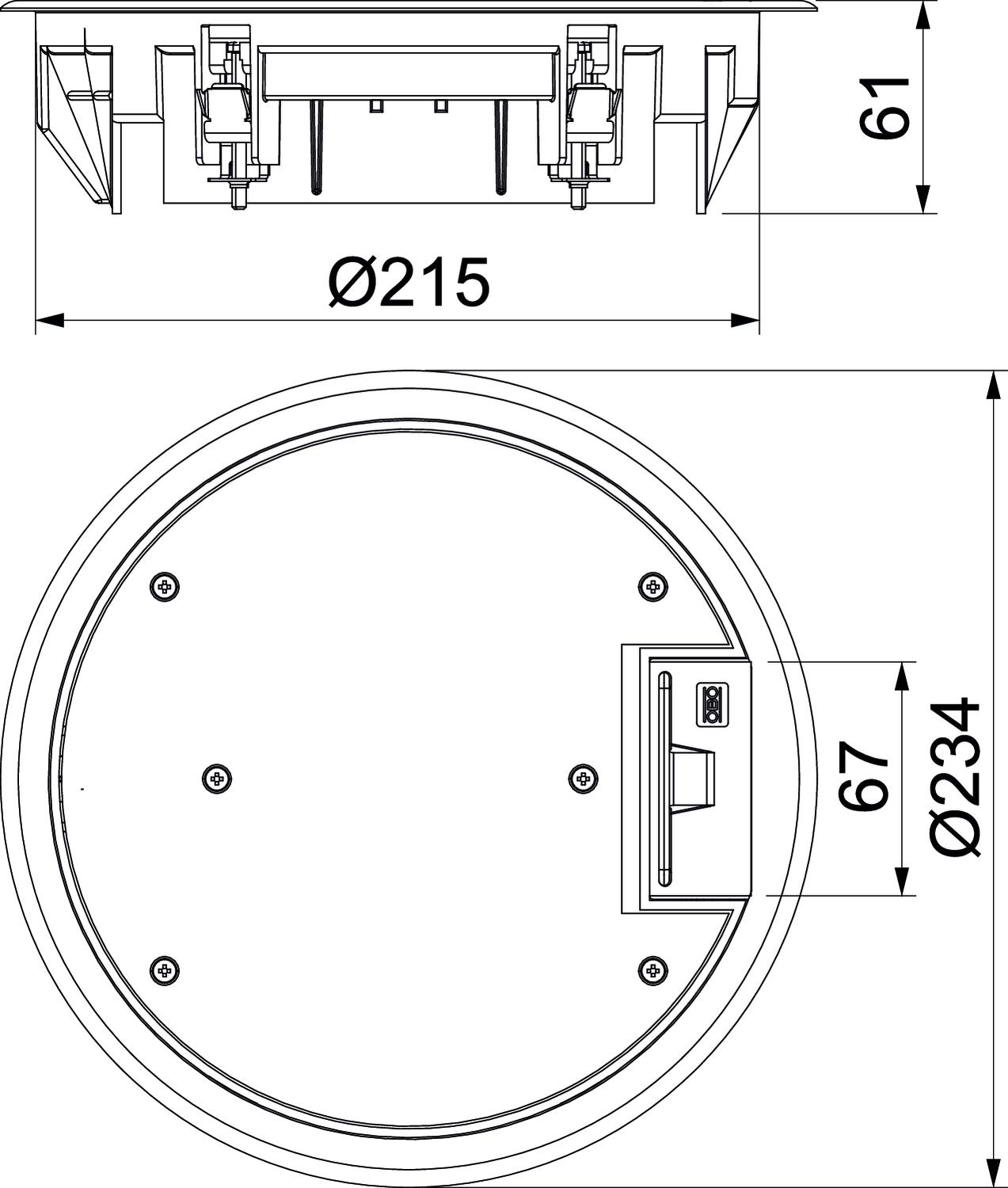

Dimension	Ø234x61
Dimension h	73 mm
External diameter	234 mm
Floor care	Dry
Floor covering protection frame	yes
Floor covering thickness	5 mm
Floor height, min.	73 mm
Frame version	Carpet protection frame
Heavy-duty version	no
Installation depth	73 mm
Installation diameter	215
Installation system type	UT3
Material	Polyamide
Nominal size for device installation units	R4

Number of installable devices	6
Number of mounting boxes	2
Opening mechanism	Handle
Protection rating (IP) when unused	IP40
Protection rating (IP) when used	IP20
Protection rating IK code	IK08
Seal installation option	no
Suitable for cavity floor installation	yes
Suitable for raised floor installation	yes
Suitable for screed-covered underfloor ducts	yes
Suitable for screed-flush closed underfloor ducts	yes
Suitable for underfloor ducts	yes
Suitable for wet care	no
Version for	Round
Vertical load, large area	to 5,000 N
Vertical load, small area	to 3,000 N
With floor covering recess	yes
