GTPL hat profile rail, perforated 2000 | Perforated | Steel | Electrogalvanized, transparently passivated
morepic-1 morepic-2 video-1

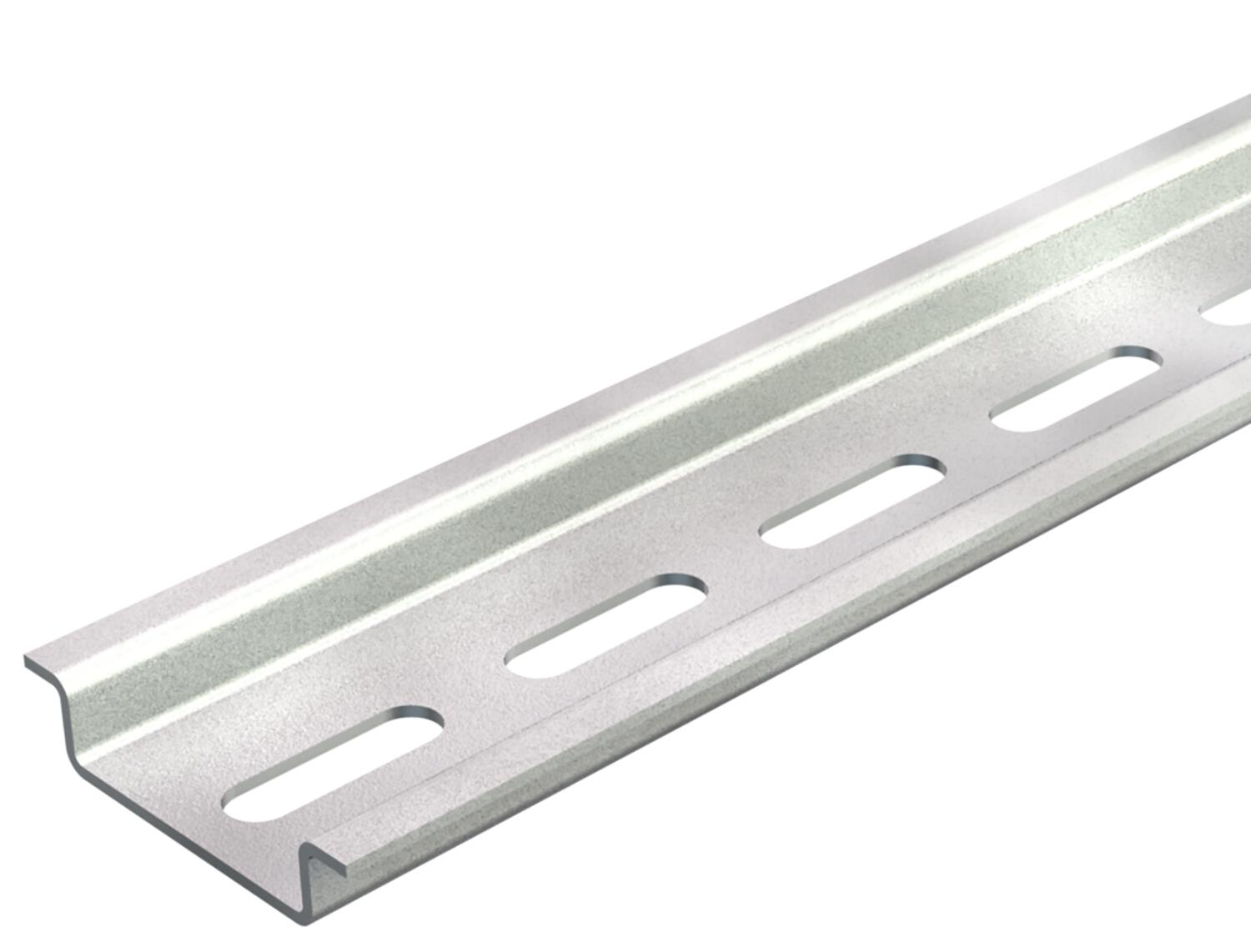

GTPL hat profile rail, perforated

Item no. 1115669 | EAN 4012195045496

2000 mm
Perforated
Steel
Product description

Product description

Hat profile rail 35 x 7.5 mm to DIN EN 60715 (formerly DIN EN 50022).
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • RoHS-conformant
  • Slot width 35 mm
  • Bolt-firing tool
  • Nail device
Technical data

Technical data

Bundle 50 m

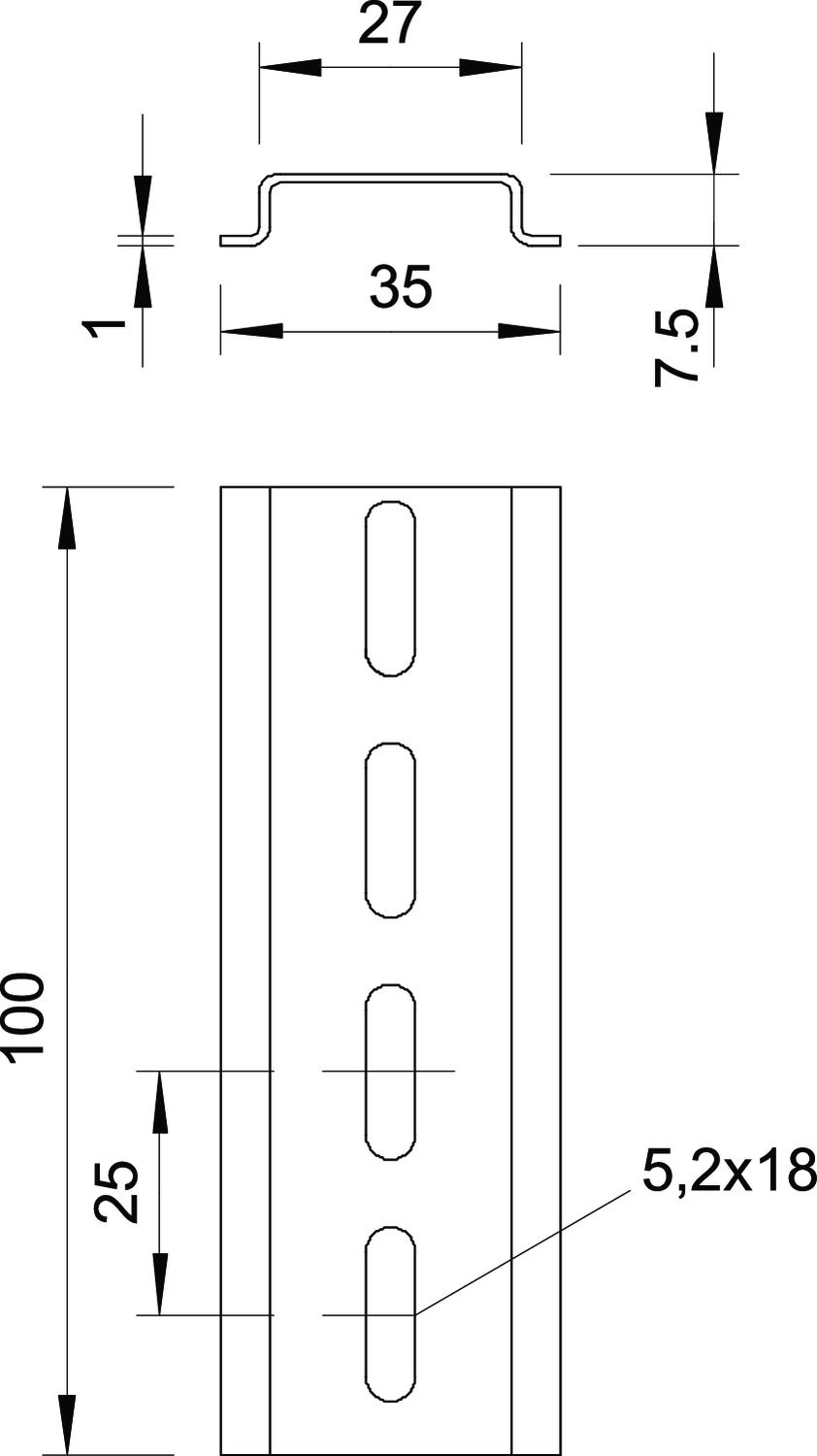

Dimension 2000x35x7,5
Drill hole spacing, centre 25 mm
Height 7,5 mm
Hole shape (ETIM) Long slot
Length 2000 mm
Material Steel
Material thickness 1 mm
Surface Electrogalvanized, transparently passivated
Version for Perforated
Version, rails Support rail DIN EN 60715
Width 35 mm
All types

All types

Types Length Version for Material Surface Item no. Quantity SSU
2069 2M GTPL 2000 mm Perforated Steel Electrogalvanized, transparently passivated 1115669
2 m
2069 L 2M FS 2000 mm Perforated Steel Strip galvanized 1115804
2 m
