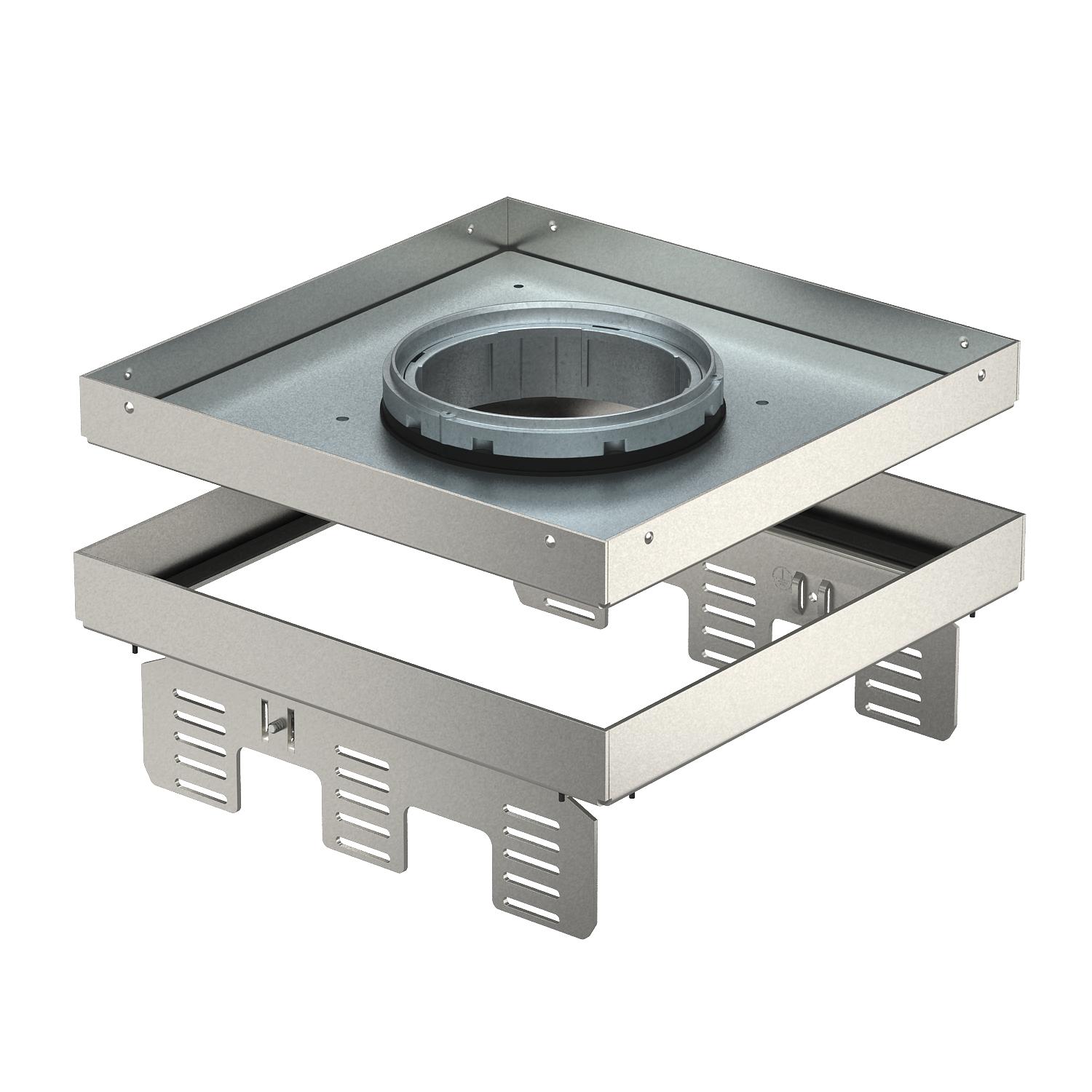

Height-adjustable cassette for tube body, RKFNUZD3, stainless steel
Item no. 7409378 | EAN 4012195869146
- Product description
-
Product descriptionHeight-adjustable cassette, decoupled from the floor, of nominal size 9, for tube bodies, for the installation of accessories in dry or wet-cleaned floors for indoor use, for mounting in underfloor boxes UZD250 or UZD350, either in conjunction with a mounting lid DUG../9 or in UGD250-3/9 or UGD350-3/9. Mounting takes place using height adjustment brackets (order separately) in the aluminium frame profile of the underfloor boxes.
Height-adjustable cassette for tube body, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of three UT4 universal supports for nine single accessories with support ring/support clamp or 12 Modul 45 devices. The tube body is not contained in the scope of delivery.
-
- Technical data
-
Technical data

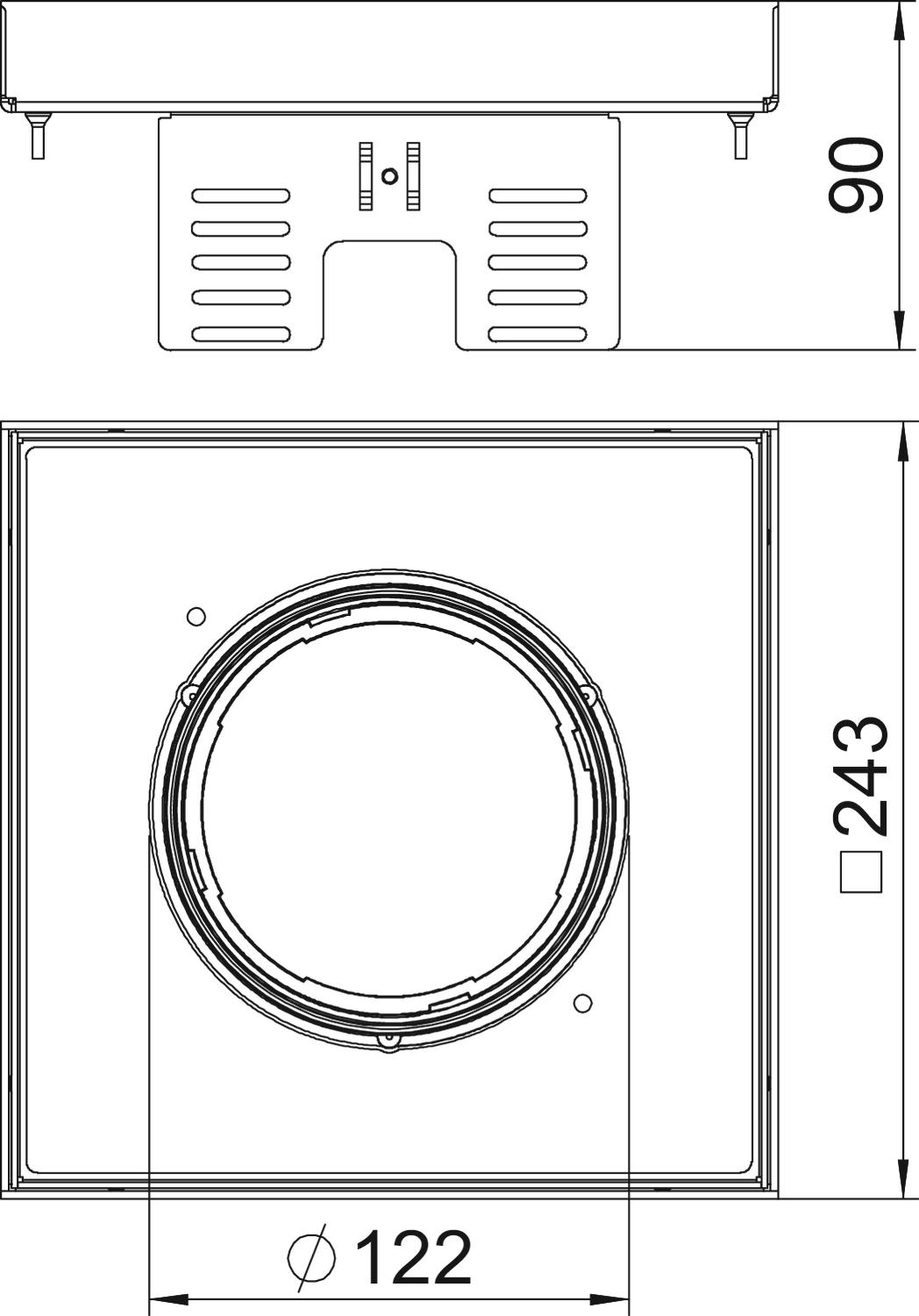

Approvals VDE Cable outlet version Lowerable tube body Decouplable yes Device support to accept mounting boxes no Dimension 243x243mm Dimension h 90 mm Floor care Wet Floor covering thickness 20 mm Floor height, min. 105 mm Heavy-duty version no Height 90 mm Installation depth 105 mm Installation system type UT4 Length 243 mm Length of installation dimensions 244 mm Material Stainless steel Nominal size for device installation units 9 Number of cable outlets 1 Number of installable devices 12 Protection rating (IP) when unused IP44 Protection rating (IP) when used IP20 Protection rating IK code IK10 Suitable for cavity floor installation yes Suitable for raised floor installation yes Version for Square Vertical load, large area to 5,000 N Wide installation dimensions 244 mm Width 243 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Tube body with cover plate, with handle clamp, for frame cassette and height-adjustable cassette
TUK2 GV 7428140 1 piece
Height adjustment bracket for installation in UZD/UGD250-3 for one square cassette
NW 250-3 QK 7410540 1 piece - Downloads
-
Data sheet RKFN2UZD3 9VS20 / 7409378 , 0.26MB , pdfEU declaration of conformity RKFN2UZD3 9VS20 / 7409378 , 0.11MB , pdfUK Declaration of Conformity RKFN2UZD3 9VS20 / 7409378 , 0.14MB , pdfLabel approval VDE symbol approval, RK RKN , 0.18MB , pdfMounting instructions Mounting instructions, cassettes RK(F) N2UZD3 , 0.10MB , pdfInstructions for use PF-G instructions for use , 2.00MB , pdfNo invitation to tender text is available for this product.
