Height-adjustable cassette for tube body, RKFNUZD3, stainless steel 105 | 90 | 20 | 4

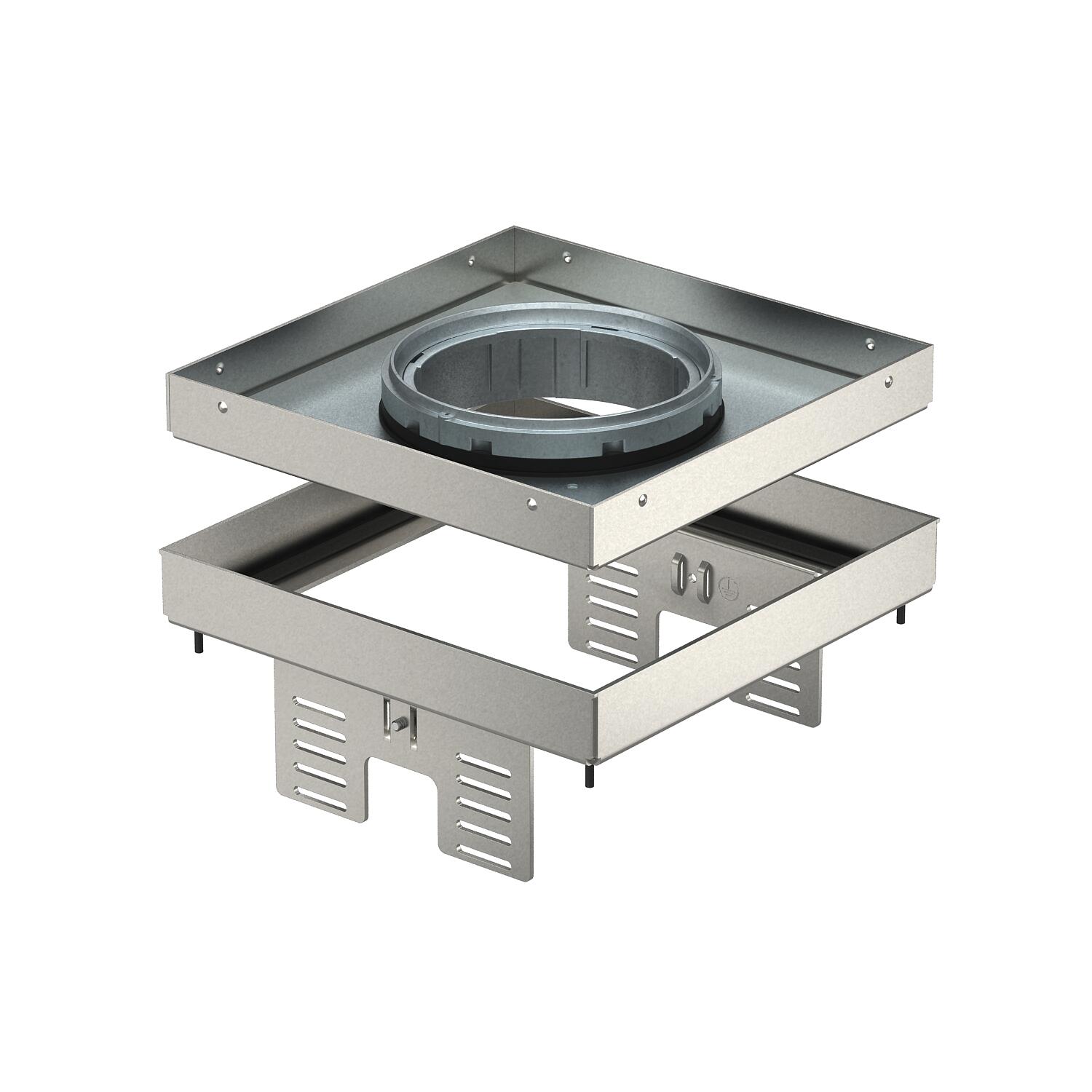

Height-adjustable cassette for tube body, RKFNUZD3, stainless steel

Item no. 7409372 | EAN 4012195869092

Item no. / Types	7409372 / RKFN2 UZD3 4VS20

Floor height, min.	105 mm

Dimension h	90 mm

Floor covering thickness	20 mm

Nominal size for device installation units	4

Product description

Product description

Height-adjustable cassette, decoupled from the floor, of nominal size 4, for tube bodies, for the installation of accessories in dry or wet-cleaned floors for indoor use, for mounting in underfloor boxes UZD250 or UZD350, either in conjunction with a mounting lid DUG../4 or in UGD250-3/4 or UGD350-3/4. Mounting takes place using height adjustment brackets (order separately) in the aluminium frame profile of the underfloor boxes.
Height-adjustable cassette for tube body, 2-compartment. 2 APMT2 cover plates can be installed. For the installation of two UT3 universal supports for four single accessories with support ring/support clamp or six Modul 45 devices. The tube body is not contained in the scope of delivery.

Technical data

Technical data

Approvals	VDE
Cable outlet version	Lowerable tube body
Decouplable	yes
Device support to accept mounting boxes	no

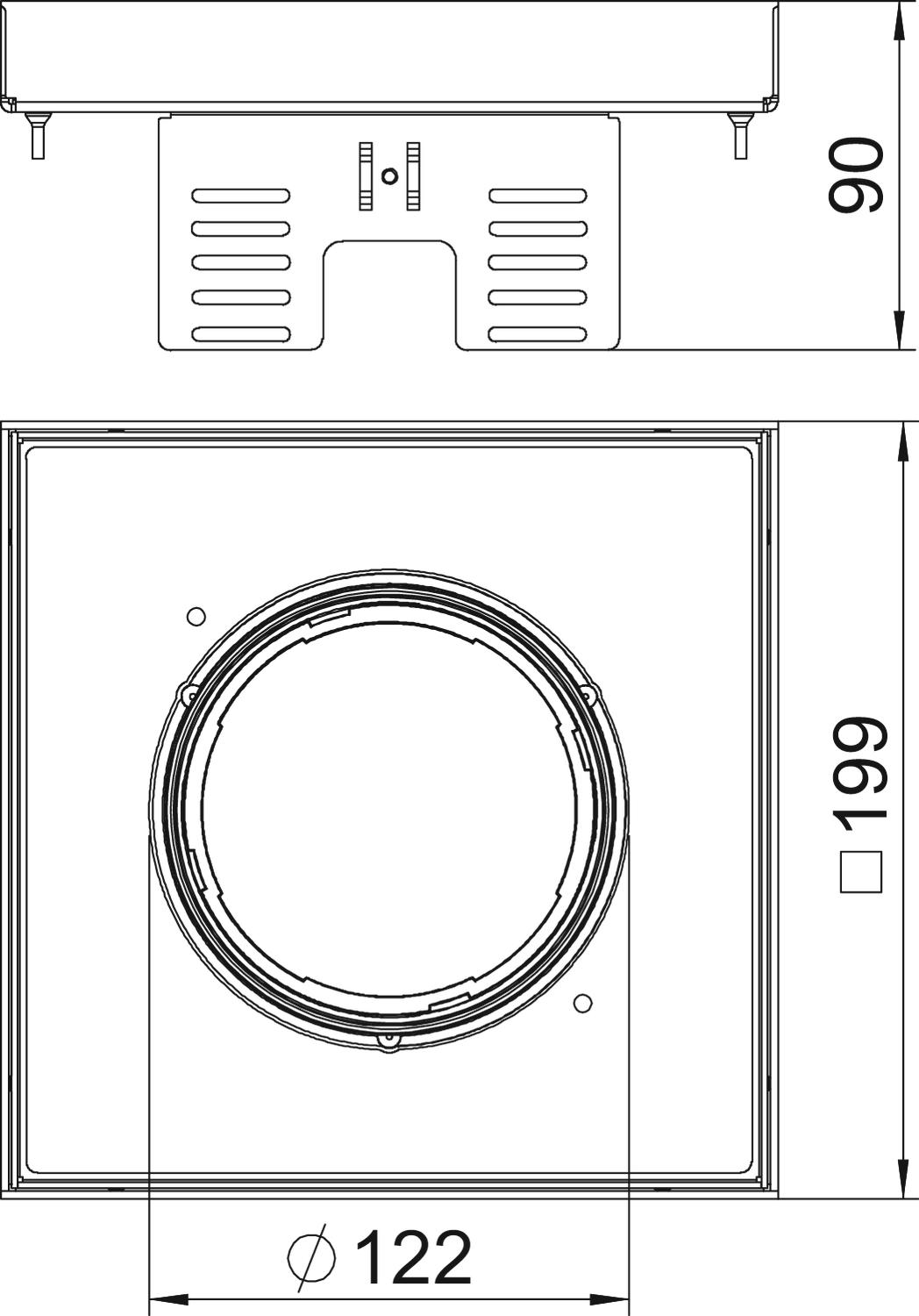

Dimension	200x200mm
Dimension h	90 mm
Floor care	Wet
Floor covering thickness	20 mm
Floor height, min.	105 mm
Heavy-duty version	no
Height	90 mm
Installation depth	105 mm
Installation system type	UT3
Length	199 mm

Length of installation dimensions	201 mm
Material	Stainless steel
Nominal size for device installation units	4
Number of cable outlets	1
Number of installable devices	6
Protection rating (IP) when unused	IP44
Protection rating (IP) when used	IP20
Protection rating IK code	IK10
Suitable for cavity floor installation	yes
Suitable for raised floor installation	yes
Version for	Square
Vertical load, large area	to 5,000 N
Wide installation dimensions	201 mm
Width	199 mm

All types

All types

Types	Floor height, min.	Dimension h	Floor covering thickness	Nominal size for device installation units	Item no.	Quantity	SSU
RKFN2 UZD3 4VS20	105 mm	90 mm	20 mm	4	7409372	piece	1 piece
