Height-adjustable cassette for tube body, RKFR, stainless steel
Item no. 7409422 | EAN 4012195869450
- Product description
-
Product description

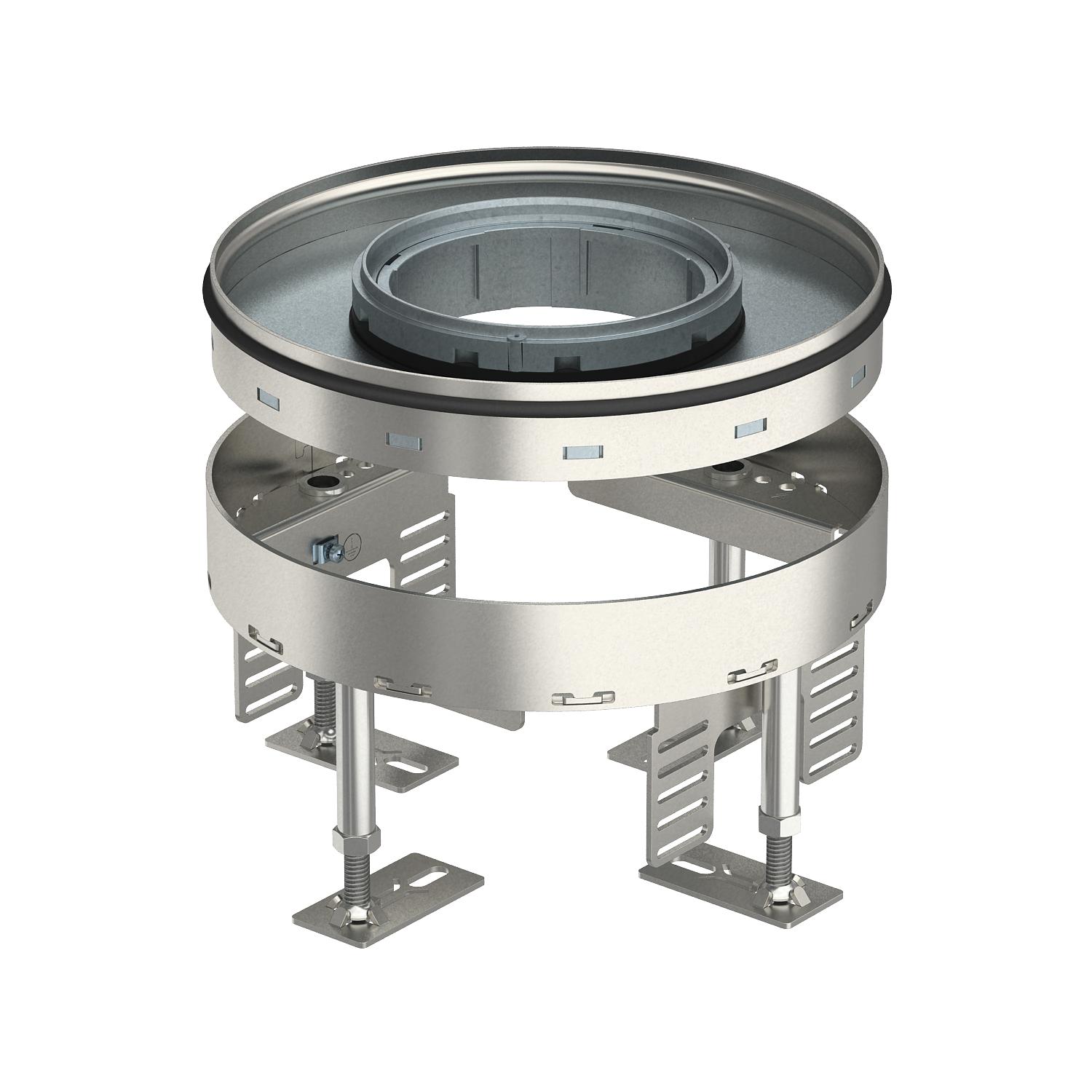

Height-adjustable cassette of nominal size R4 for tube body for installation of accessories in dry or wet-cleaned floors for indoor use.

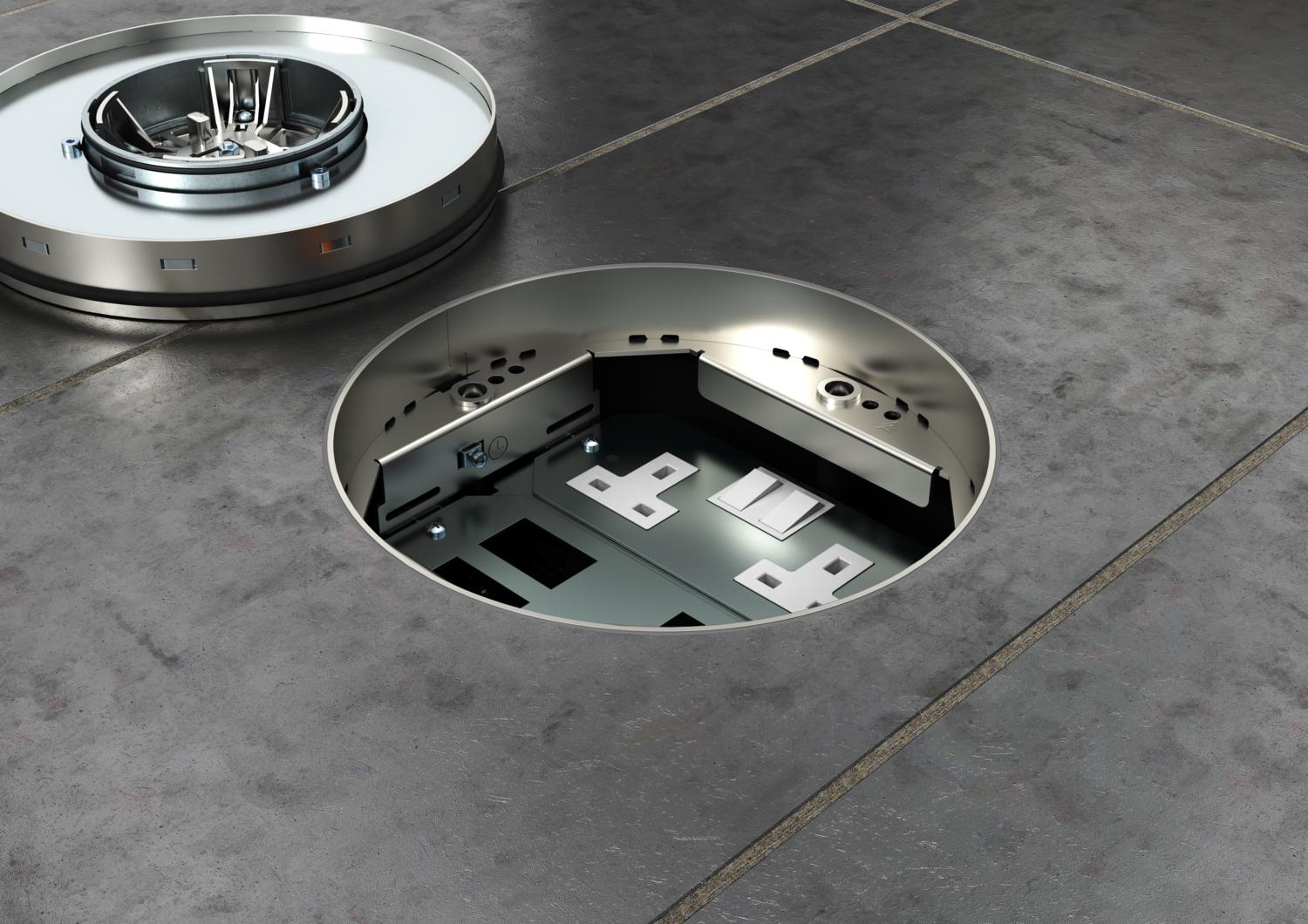

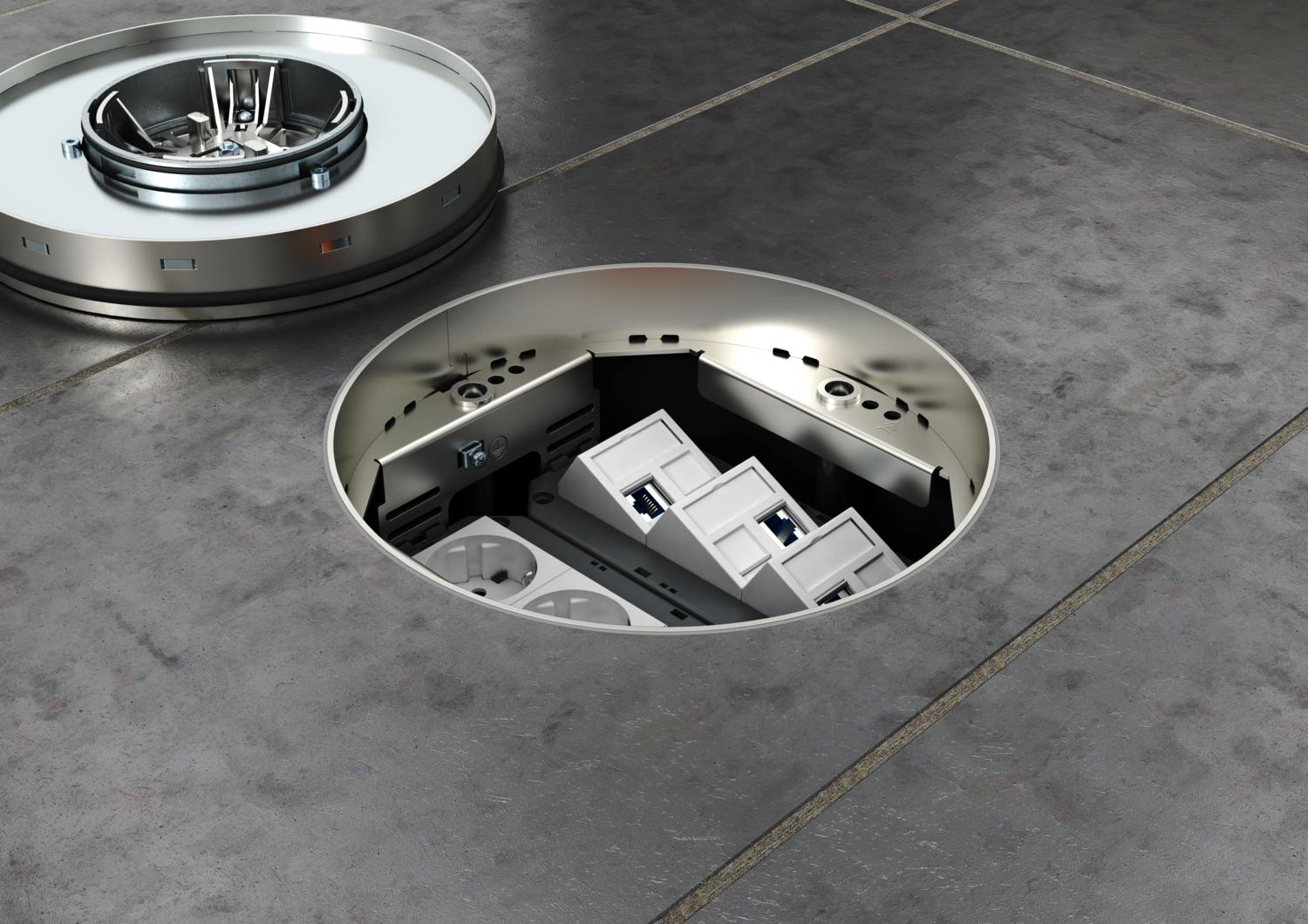

Height-adjustable cassette for tube body, 2-compartment. 2 APMT2 cover plates can be installed. For the installation of two UT3 universal supports for four single accessories with support ring/support clamp or six Modul 45 devices. The tube body is not contained in the scope of delivery.
-
- Technical data
-
Technical data

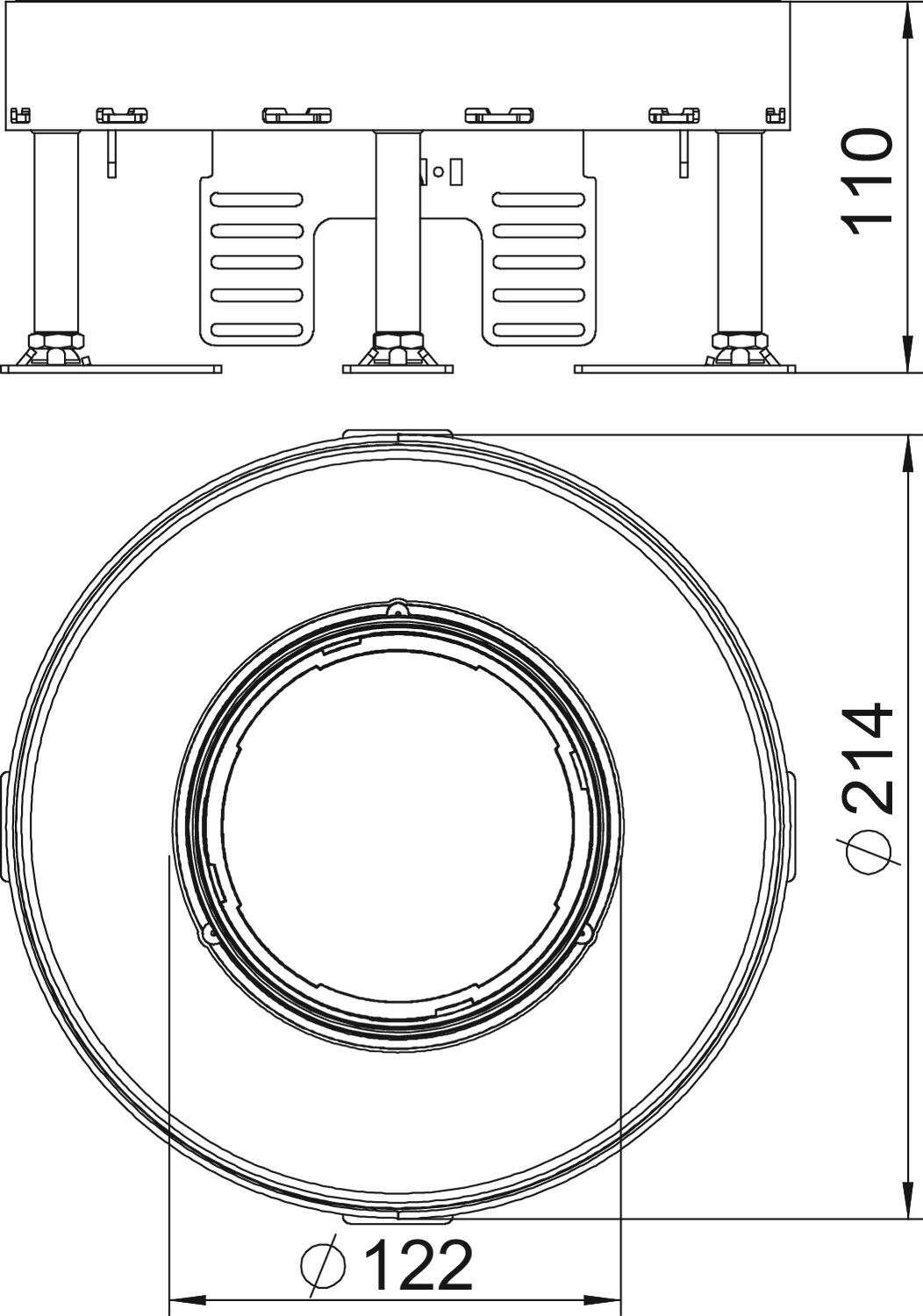

Approvals VDE Cable outlet version Lowerable tube body Decouplable no Device support to accept mounting boxes yes Dimension Ø215mm Dimension h 110 mm Floor care Wet Floor covering thickness 20 mm Floor height, max. 155 mm Floor height, min. 110 mm Heavy-duty version no Height-adjustment range, max. 155 mm Height-adjustment range, min. 110 mm Installation depth 110 mm Installation diameter 215 Installation system type UT3 Length 214 mm Material Stainless steel Nominal size for device installation units R4 Number of cable outlets 1 Number of installable devices 6 Number of mounting boxes 2 Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK10 Suitable for cavity floor installation yes Suitable for raised floor installation yes Version for Round Vertical load, large area to 10,000 N Vertical load, small area to 3,000 N Width 214 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Tube body with cover plate, with handle clamp, for frame cassette and height-adjustable cassette
TUK2 GV 7428140 1 piece - Downloads
-
Data sheet RKFR2 4 V20 / 7409422 , 0.24MB , pdfDeclaration of conformity RKFR2 4 V20 / 7409422 , 0.06MB , pdfLabel approval VDE symbol approval, RK RKN , 0.18MB , pdfInstructions for use PF-G instructions for use , 2.00MB , pdfNo invitation to tender text is available for this product.
