Height-adjustable cassette with cord outlet, RKSNUZD3, stainless steel | 110 | 25 | 95 | 9

Height-adjustable cassette with cord outlet, RKSNUZD3, stainless steel

Item no. 7409240 | EAN 4012195867333

Item no. / Types	7409240 / RKSN2 UZD3 9VS25

Floor height, min.	110 mm

Floor covering thickness	25 mm

Dimension h	95 mm

Nominal size for device installation units	9

Product description

Product description

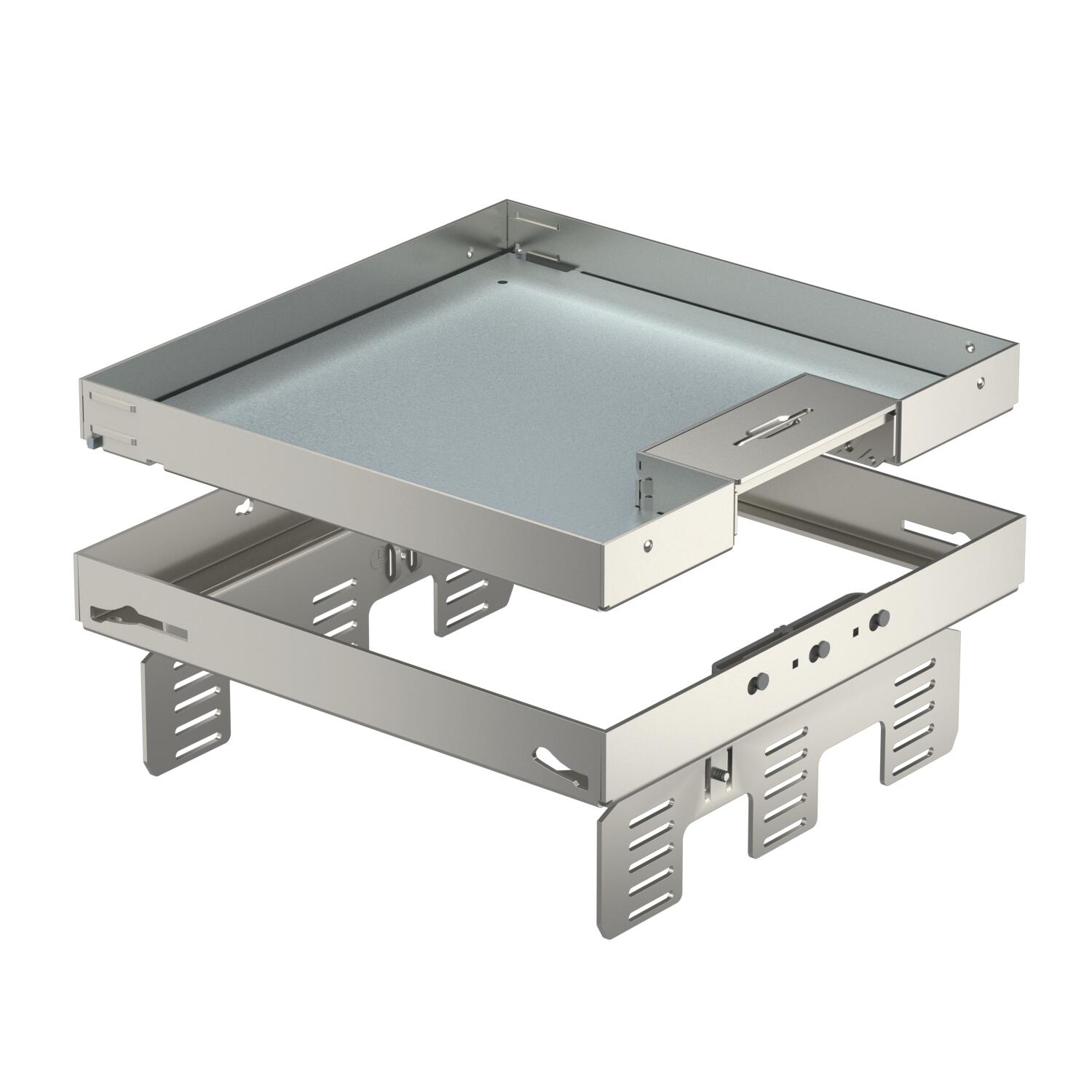

Height-adjustable cassette, decoupled from the floor, of nominal size 9, with cord outlet, for the installation of accessories in dry-cleaned floors indoors, for mounting in underfloor boxes UZD250 or UZD350, either in conjunction with a mounting cover DUG../9 or in UGD250-3/9 or UGD350-3/9. Mounting takes place using height-adjustment brackets (order separately) in the aluminium frame profile of the underfloor boxes.
Height-adjustable cassette for cord outlet, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of 3 UT4 universal supports for 9 individual installation devices with support ring/support clamp or 12 Modul 45 devices.

Technical data

Technical data

Approvals	VDE
Cable outlet version	Swivellable cord outlet
Decouplable	yes
Device support to accept mounting boxes	yes

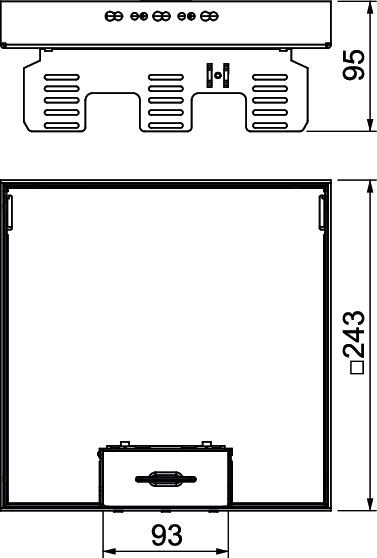

Dimension	243x243mm
Dimension h	95 mm
Floor care	Dry
Floor covering thickness	25 mm
Floor height, min.	110 mm
Heavy-duty version	no
Height	95 mm
Installation depth	110 mm
Installation system type	UT4
Length	243 mm
Length of installation dimensions	244 mm
Material	Stainless steel

Nominal size for device installation units	9
Number of cable outlets	1
Number of installable devices	12
Number of mounting boxes	3
Protection rating (IP) when unused	IP40
Protection rating (IP) when used	IP20
Protection rating IK code	IK10
Screed height, min.	110 mm
Standard	EN 50085-2-2
Suitable for cavity floor installation	yes
Suitable for raised floor installation	yes
Version for	Square
Vertical load, large area	to 10,000 N
Vertical load, small area	to 3,000 N
Wide installation dimensions	244 mm
Width	243 mm
