Note: This article is discontinued.

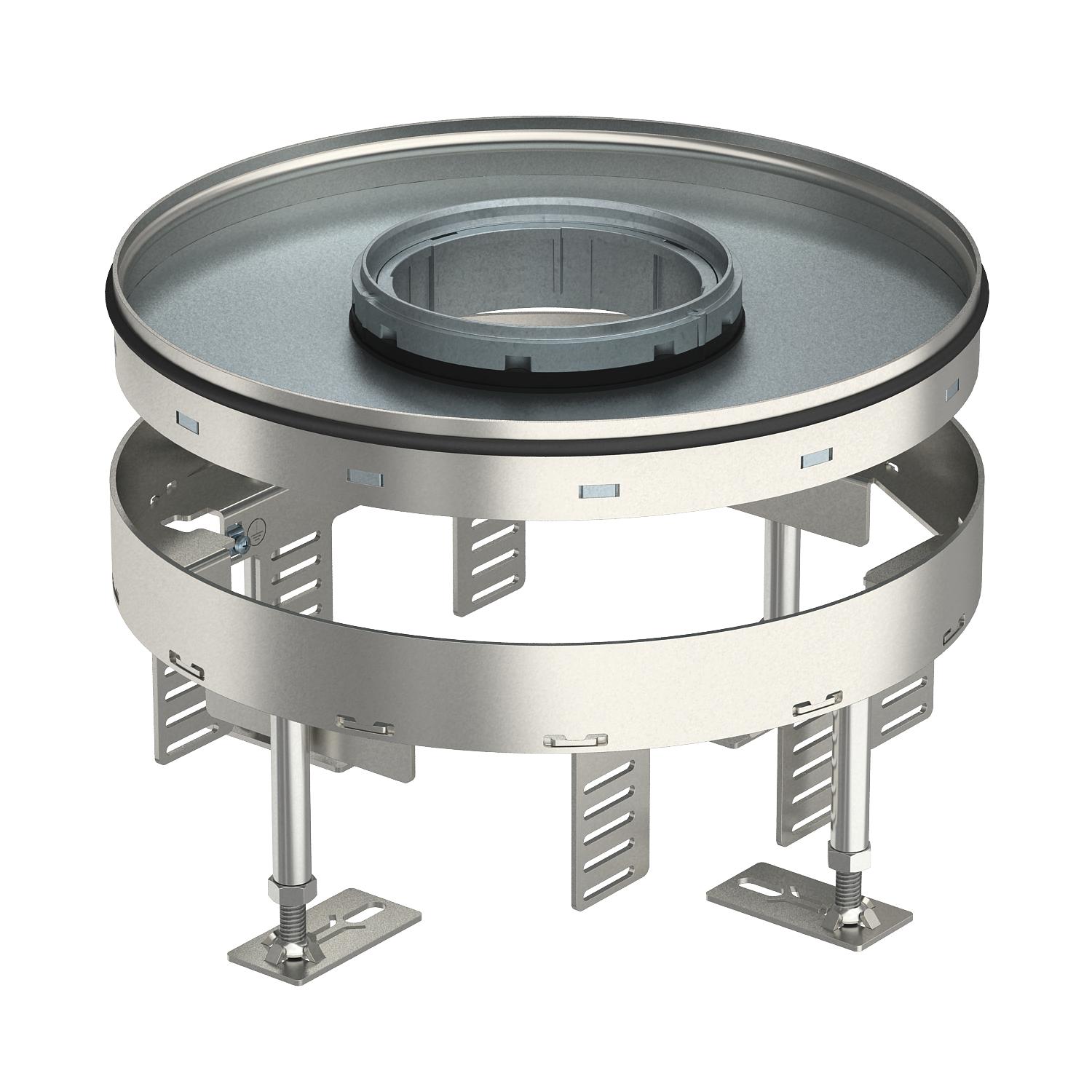

Height-adjustable heavy-duty cassette for tube body RKFRSL, nominal size R7, stainless steel
Item no. 7409466 | EAN 4012195869740
- Product description
-
Product descriptionRound heavy-duty cassette for tube body of nominal size R7 for the installation of accessories in trunking systems, raised and cavity floors, in dry or wet-cleaned floors indoors. Load class 2 to 20 kN.
Height-adjustable heavy-duty cassette with tube body with a load bearing capacity of 2-20 kN, 2-compartment. Two APMT2 cover plates and one APMT5 can be installed. For the installation of two UT3 and one UT4 universal support for seven single accessories with support ring/support clamp or 10 Modul 45 devices. The tube body is not contained in the scope of delivery.
-
- Technical data
-
Technical data

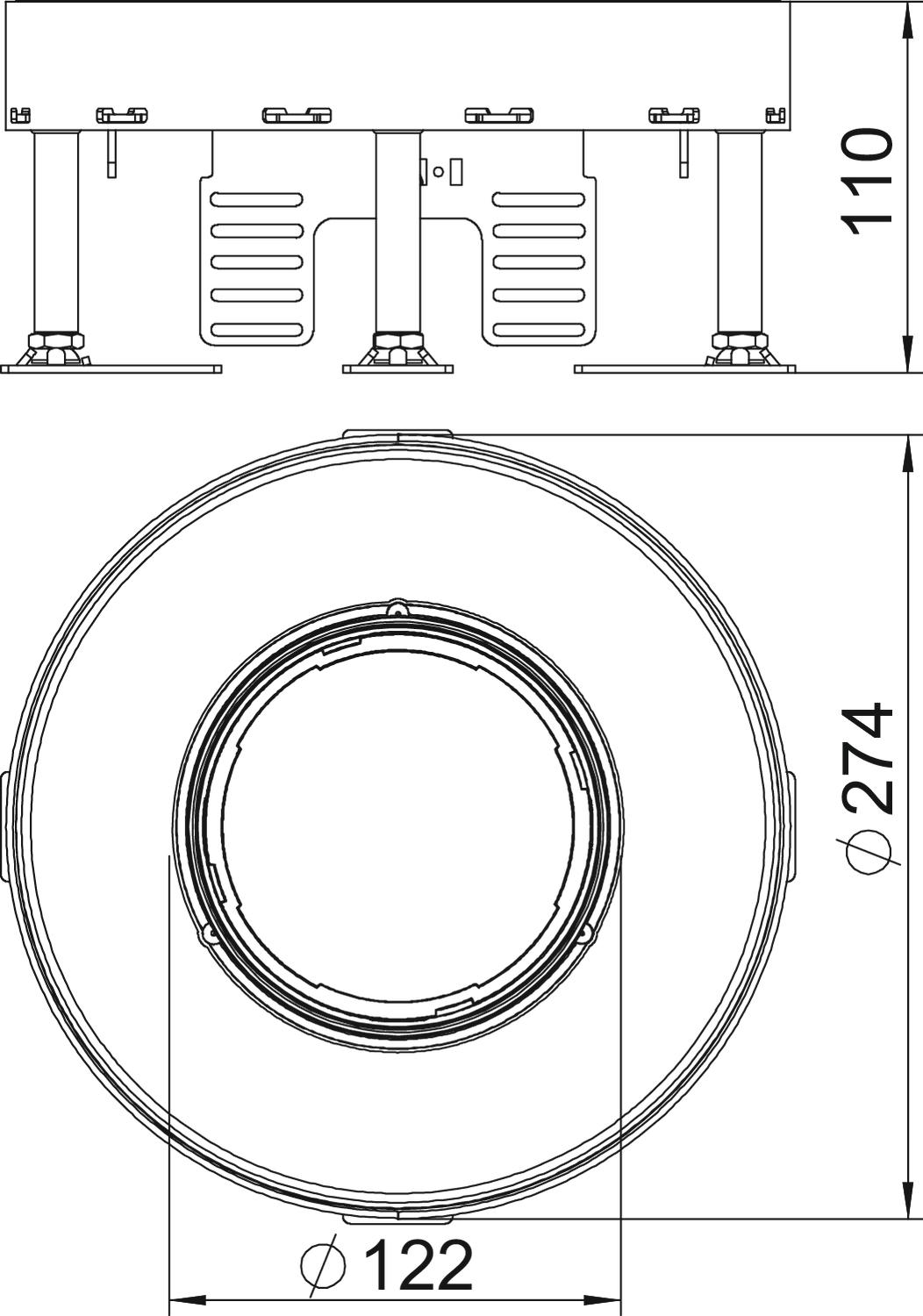

Cable outlet version Lowerable tube body Decouplable no Device support to accept mounting boxes yes Dimension Ø275mm Dimension h 110 mm Floor care Wet Floor covering thickness 20 mm Floor height, max. 155 mm Floor height, min. 105 mm Heavy load class 20 kN (OBO SL2) Heavy-duty version yes Height-adjustment range, max. 155 mm Height-adjustment range, min. 105 mm Installation depth 105 mm Installation diameter 275 Installation system type UT3 / UT4 Material Stainless steel Nominal size for device installation units R7 Number of cable outlets 1 Number of installable devices 10 Number of mounting boxes 3 Protection rating (IP) when unused IP44 Protection rating (IP) when used IP20 Protection rating IK code IK10 Suitable for cavity floor installation yes Suitable for raised floor installation yes Version for Round - All types
- Downloads
-
Data sheet RKFR2 7 SL2V2 20 / 7409466 , 0.22MB , pdfBrochure Heavy-duty systems , 2.10MB , pdfLabel approval Label approval Heavy-duty cassettes , 0.12MB , pdfSelection aid Selection aid, heavy-duty systems , 0.13MB , pdfMounting instructions Schwerlastsystem , 6.72MB , pdfMounting instructions RKRSL RKFRSL , 2.29MB , pdfNo invitation to tender text is available for this product.
