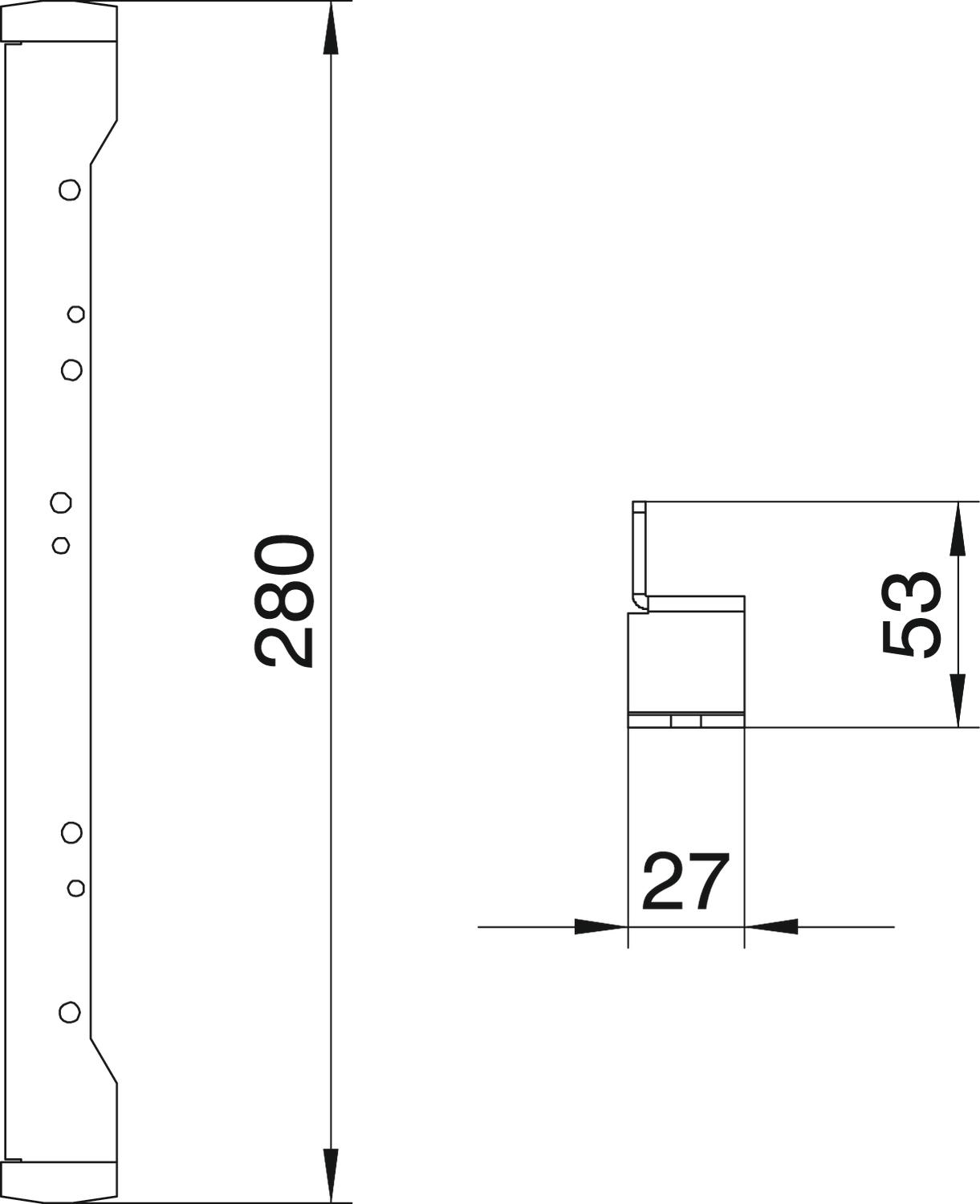

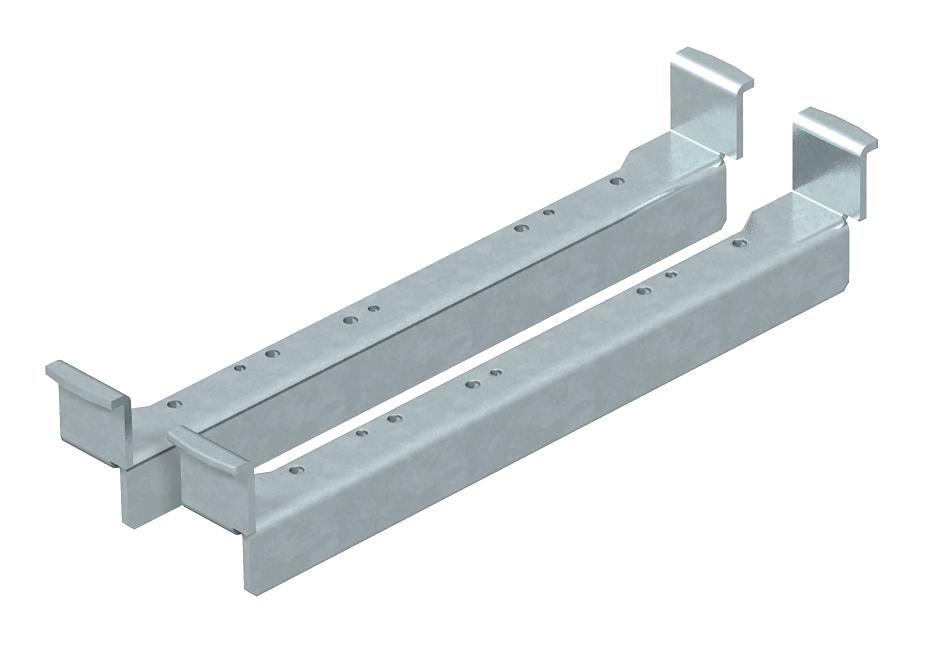

Height adjustment bracket for installation in UZD/UGD250-3 for one square cassette

Item no. 7410540 | EAN 4012195432753

Product description
Product description
Height adjustment bracket to mount the square height-adjustable cassettes in the underfloor connection socket, type UZD/UGD 250.

With all the components necessary for mounting and height adjustment.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Approvals VDE
Decouplable yes
Heavy-duty version no
Material Steel
Suitable for cavity floor installation yes
Suitable for raised floor installation yes
Surface Strip galvanized
Version for Square
All types

All types

Types Height-adjustment range, min. Height-adjustment range, max. Item no. Quantity SSU
NW 250-3 QK 7410540
1 piece
Downloads

Download

Download

EU declaration of conformity NW 250-3 QK / 7410540 , 0.15MB , pdf
Download
UK Declaration of Conformity NW 250-3 QK / 7410540 , 0.14MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
