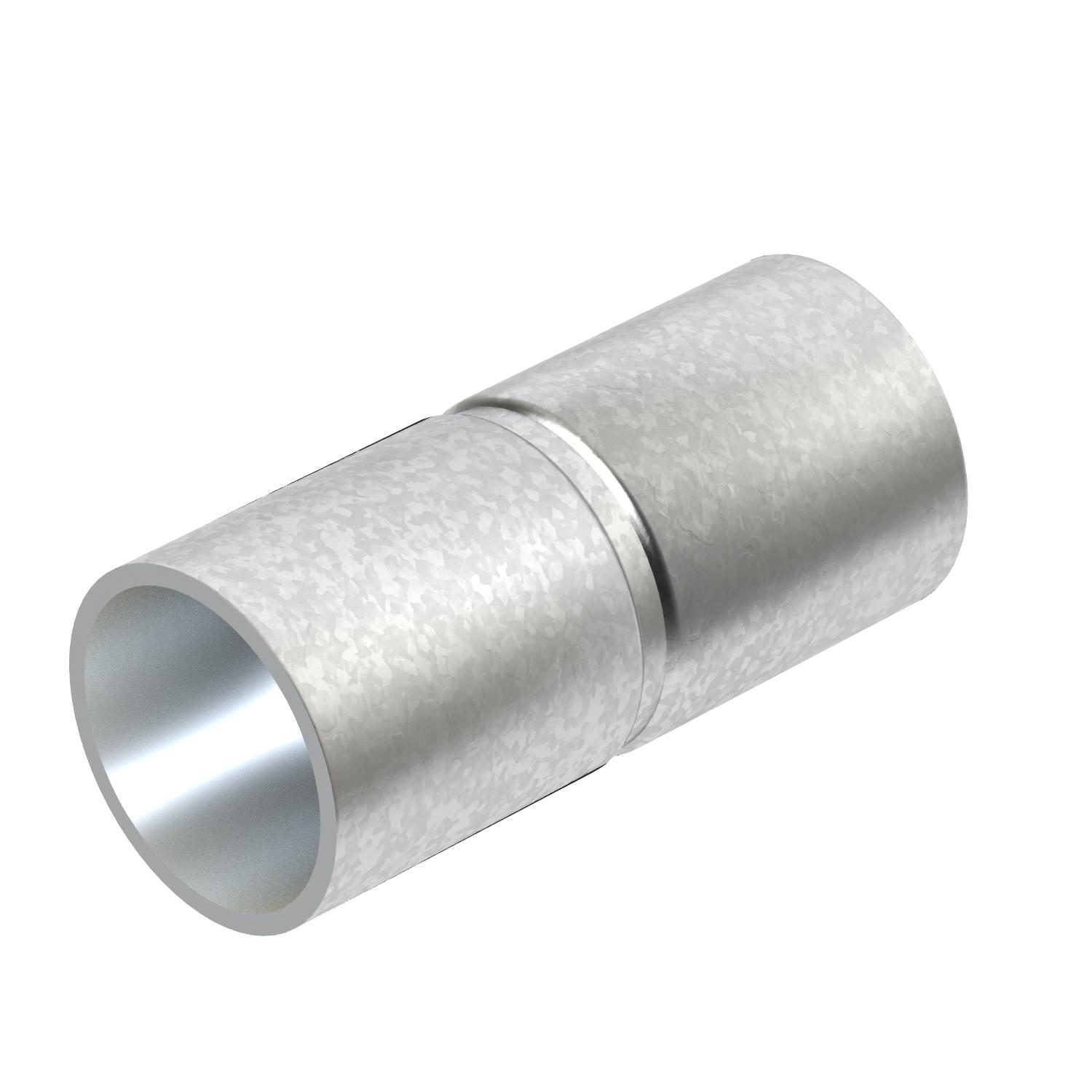

Hot-dip galvanised steel sleeve, without thread
Item no. 2046621 | EAN 4012195782391
- Product description
-
Product descriptionAccessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
-
- Technical data
-
Technical data

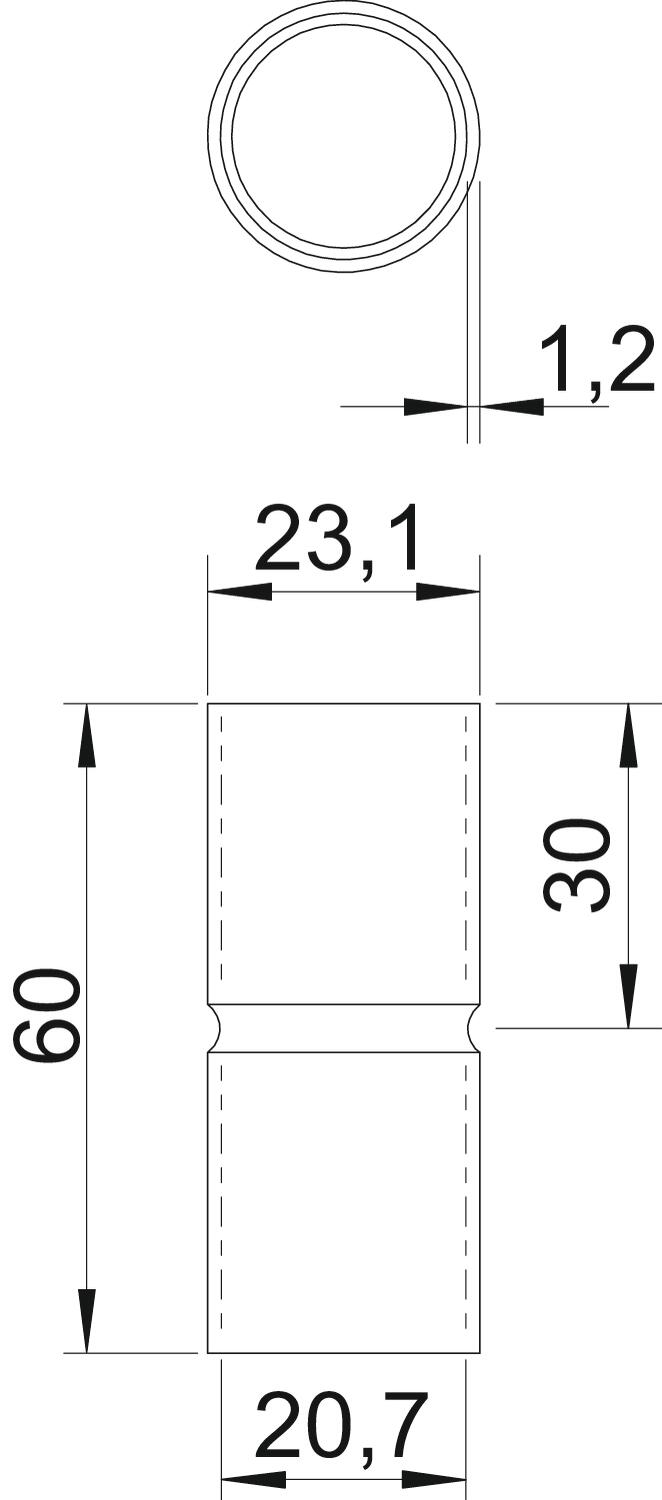

Brushed surface no Dimension Ø20mm Dimension D 23,1 mm Dimension d 20,7 mm Dimension l 30 mm Dimension L 60 mm Dimension m (mm) M20 Dimension t 1,2 mm for pipe diameter 20 mm Halogen-free yes Length 60 mm Material Steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Size 20 Surface Hot-dip galvanised Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV20W FT / 2046621 , 0.21MB , pdfEU declaration of conformity SV20W FT / 2046621 , 0.10MB , pdfUK Declaration of Conformity SV20W FT / 2046621 , 0.09MB , pdfREACH Declaration of conformity SV20W FT / 2046621 , 0.12MB , pdfRoHS Declaration of conformity SV20W FT / 2046621 , 0.12MB , pdf
