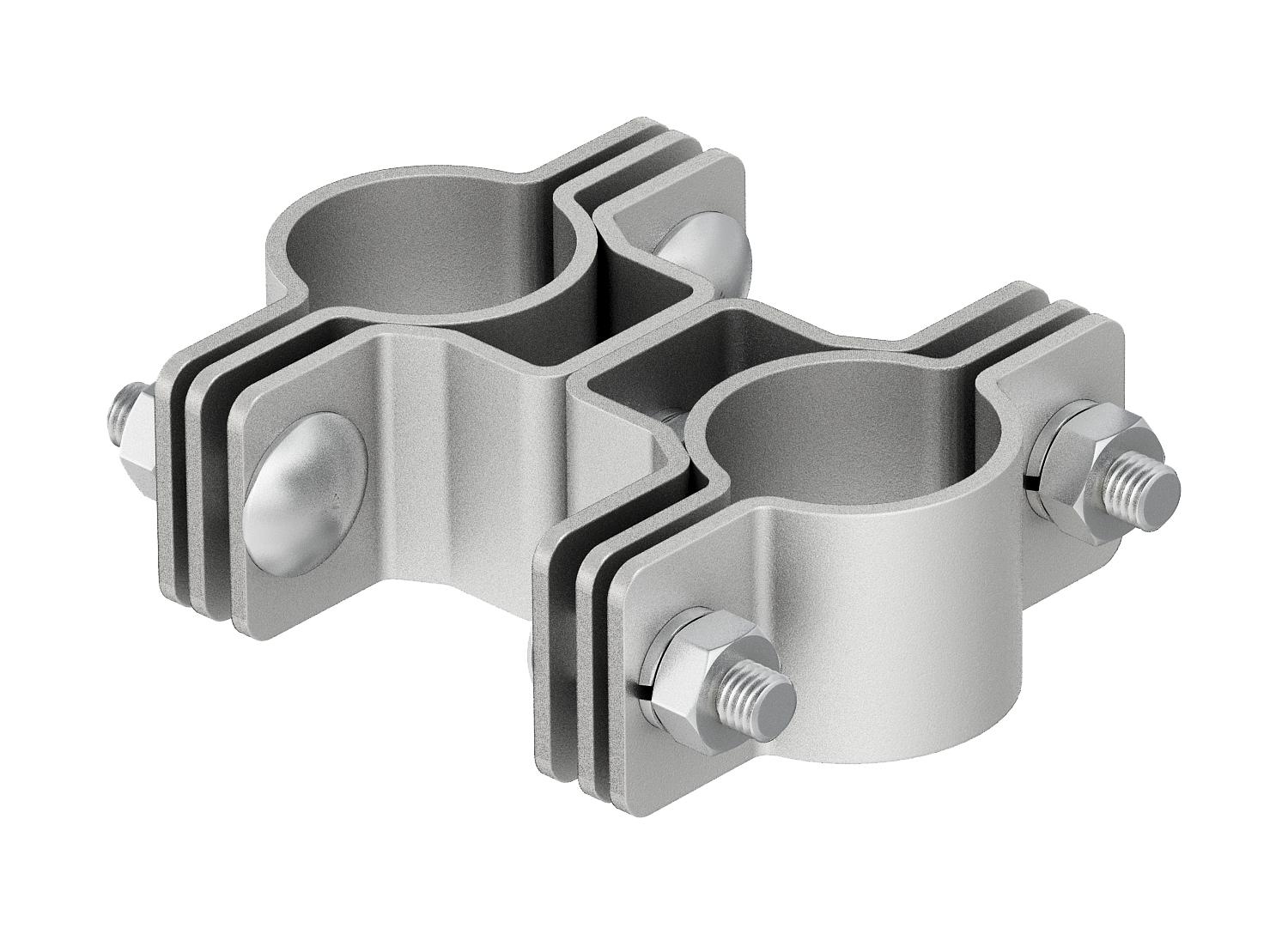

isFang support for pipe mounting, ø 40−50 mm

Item no. 5408958 | EAN 4012195670117

5408958 / isFang TS40-50
40 mm
ø 40–50 mm
Product description
Product description
Tightening strap clip to fasten the insulated support pipes on the structure to be protected or for construction-side pipes of ø 40–50 mm.
Technical data

Technical data

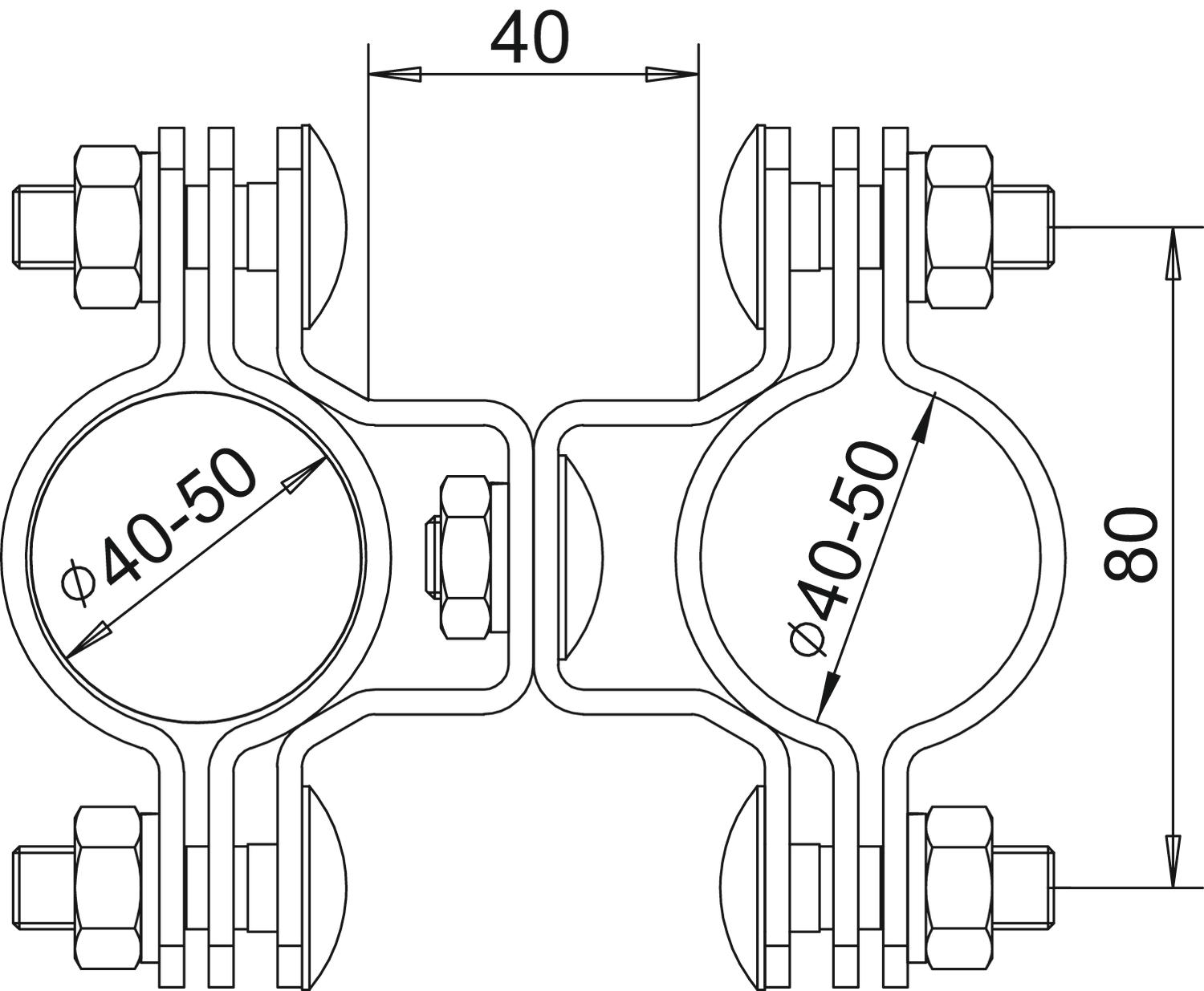

Dimension Ø40-50mm
Dimension d min. 50 mm
Dimension L 40 mm
Fit ø 40–50 mm
Material Stainless steel
All types

All types

Types Dimension L Fit Item no. Quantity SSU
isFang TS40-50 40 mm ø 40–50 mm 5408958
2 piece
Downloads

Download

Download
Download

EU declaration of conformity isFang TS40-50 / 5408958 , 0.06MB , pdf
