Note: This article is discontinued. You can find the current article here: 6042223 / Add-on tee 60 FT

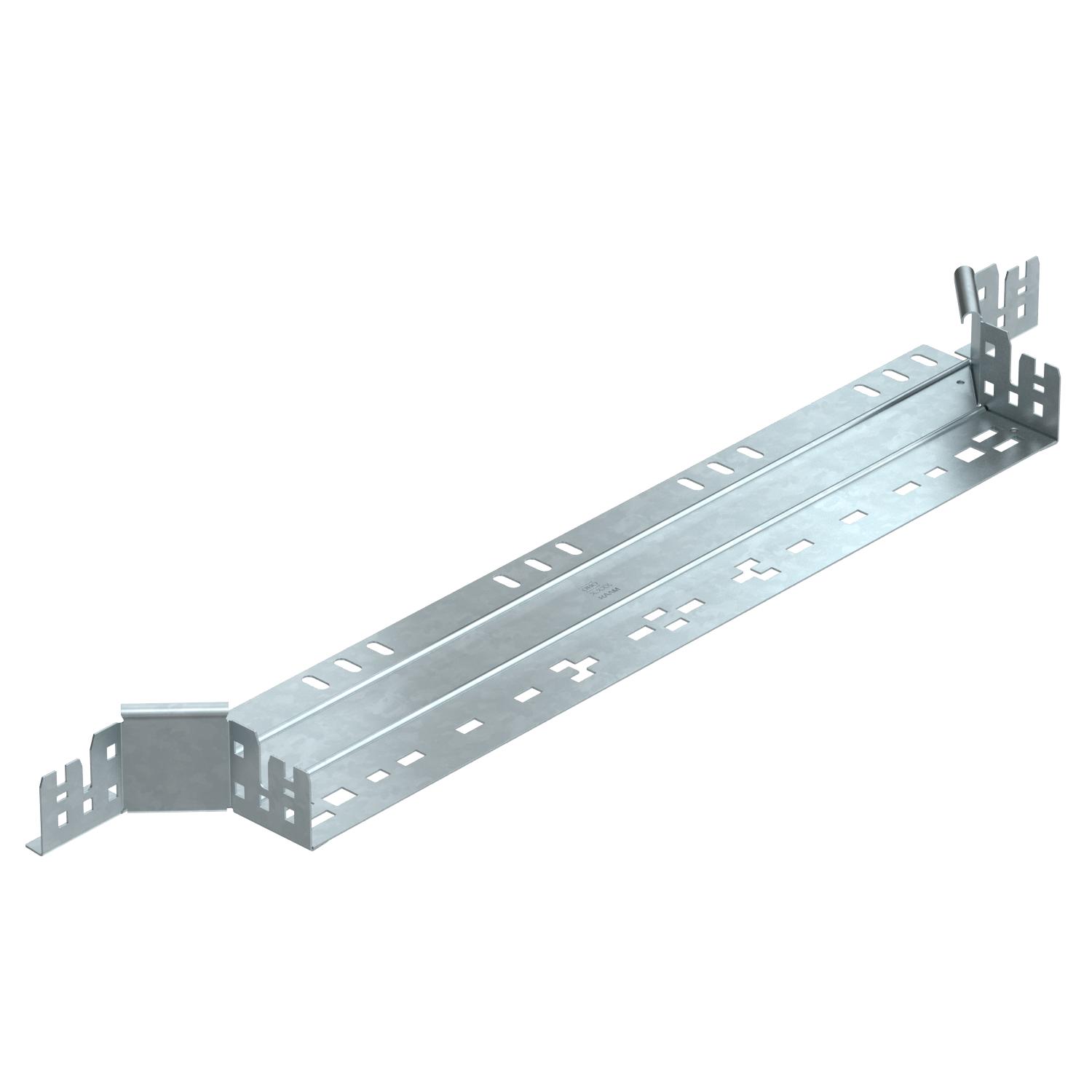

Magic add-on tee 60 FT

Item no. 6041263 | EAN 4012195878780

Product description

Product description

Add-on tee with quick connector system. For all cable tray types of 60 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 60 mm
  • BET-tested to DIN EN 61537
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Connector version Integrated connector
Dimension 60x600
Dimension B 600 mm
Height 60 mm
Height 2 in
Maintain electrical functions no
Material Steel
Material thickness, floor plate 1,25 mm
NATO hole pattern no
Plate thickness 1,25 mm
Rail thickness 1,25 mm
Rustproof steel, pickled no
Surface Hot-dip galvanised
Type of connector, cable support system Click fastening
Wide-span version no
Width 600 mm
All types

All types

Types Width Item no. Quantity SSU
RAAM 610 FT 100 mm 6041250
1 piece
RAAM 615 FT 150 mm 6041252
1 piece
RAAM 620 FT 200 mm 6041254
1 piece
RAAM 630 FT 300 mm 6041257
1 piece
RAAM 640 FT 400 mm 6041259
1 piece
RAAM 650 FT 500 mm 6041261
1 piece
RAAM 660 FT 600 mm 6041263
1 piece
