Note: This article is discontinued.
You can find the current article here: 6037326 / Bend, angle-adjustable, 110 FT
Magic bend, variable 110 FT
Item no. 6040706 | EAN 4012195992844
- Product description
-

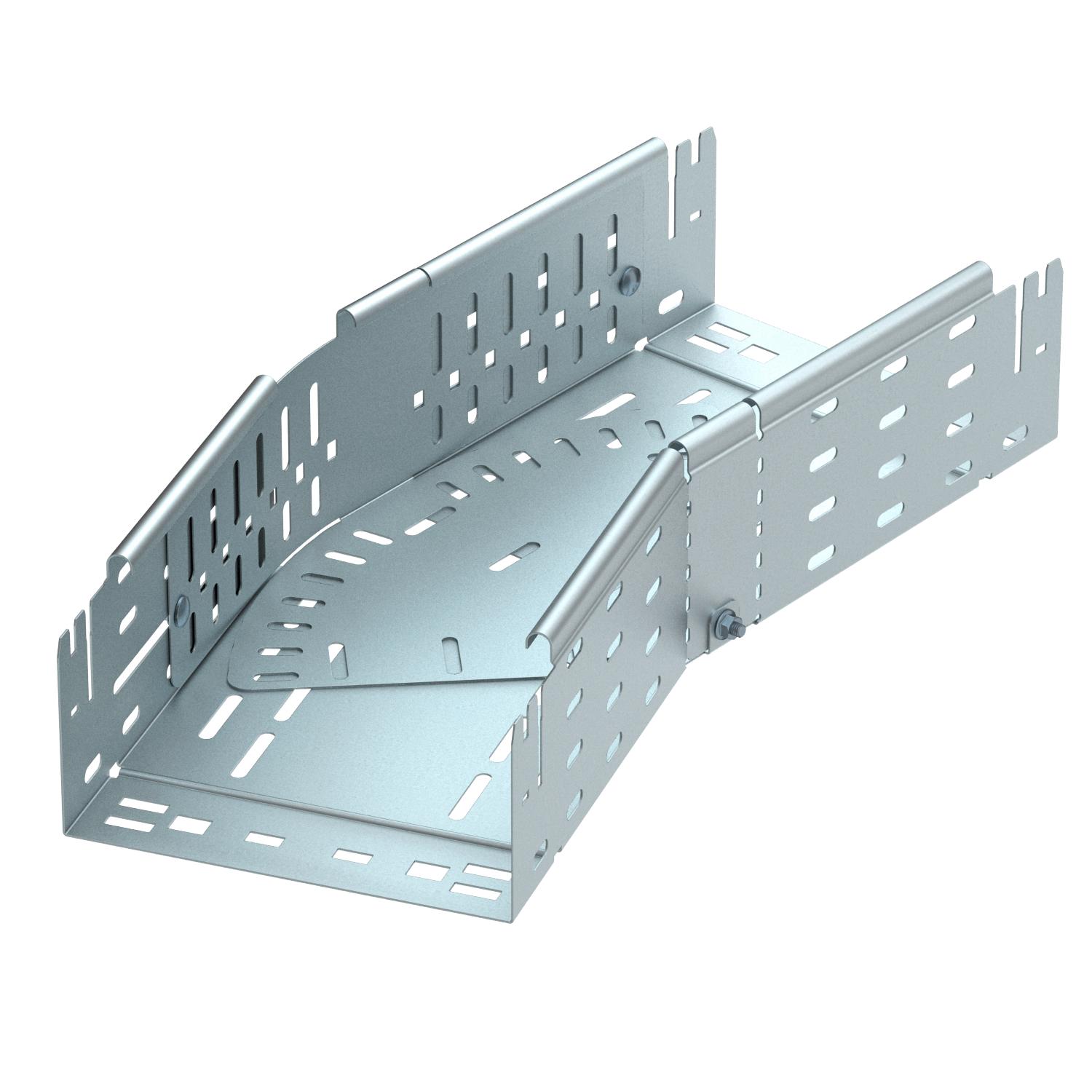

Product descriptionMagic bend 0°-90°, variable, with quick connector system. For all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data

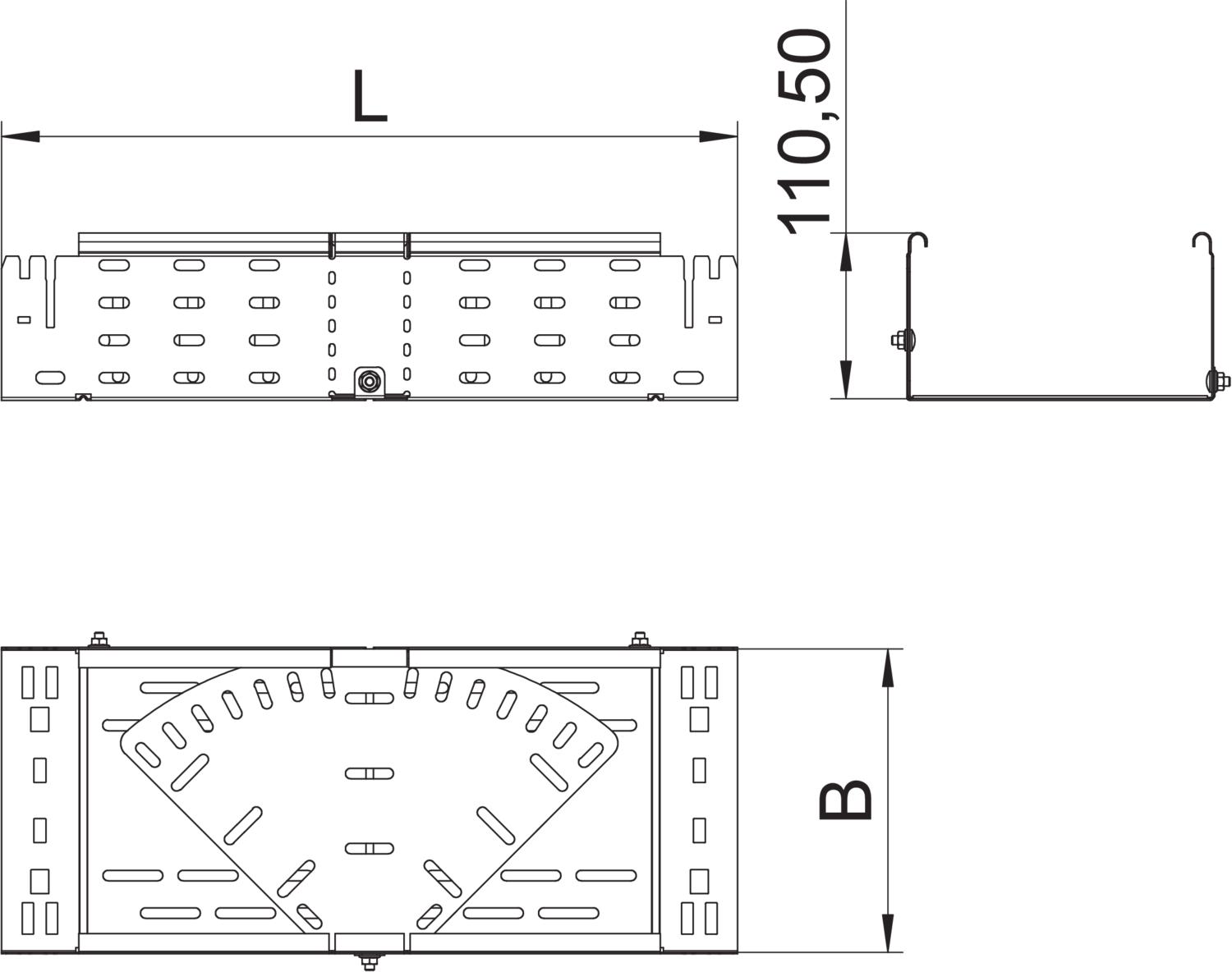

Bend (angle) Adjustable Change of direction Horizontal Connector version Integrated connector Dimension 110x300 Dimension B 300 mm Dimension L 640 mm Height 110 mm Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1,25 mm Rustproof steel, pickled no Side perforation yes Surface Hot-dip galvanised Type of connector, cable support system Click fastening Wide-span version no Width 300 mm - All types
-
All types
- Downloads
-
Data sheet RBMV 130 FT / 6040706 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RBMV 130 FT / 6040706 , 0.11MB , pdfREACH Declaration of conformity RBMV 130 FT / 6040706 , 0.12MB , pdfRoHS Declaration of conformity RBMV 130 FT / 6040706 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
