Note: This article is discontinued.
You can find the current article here: 7027317 / Cross-over 60 FS

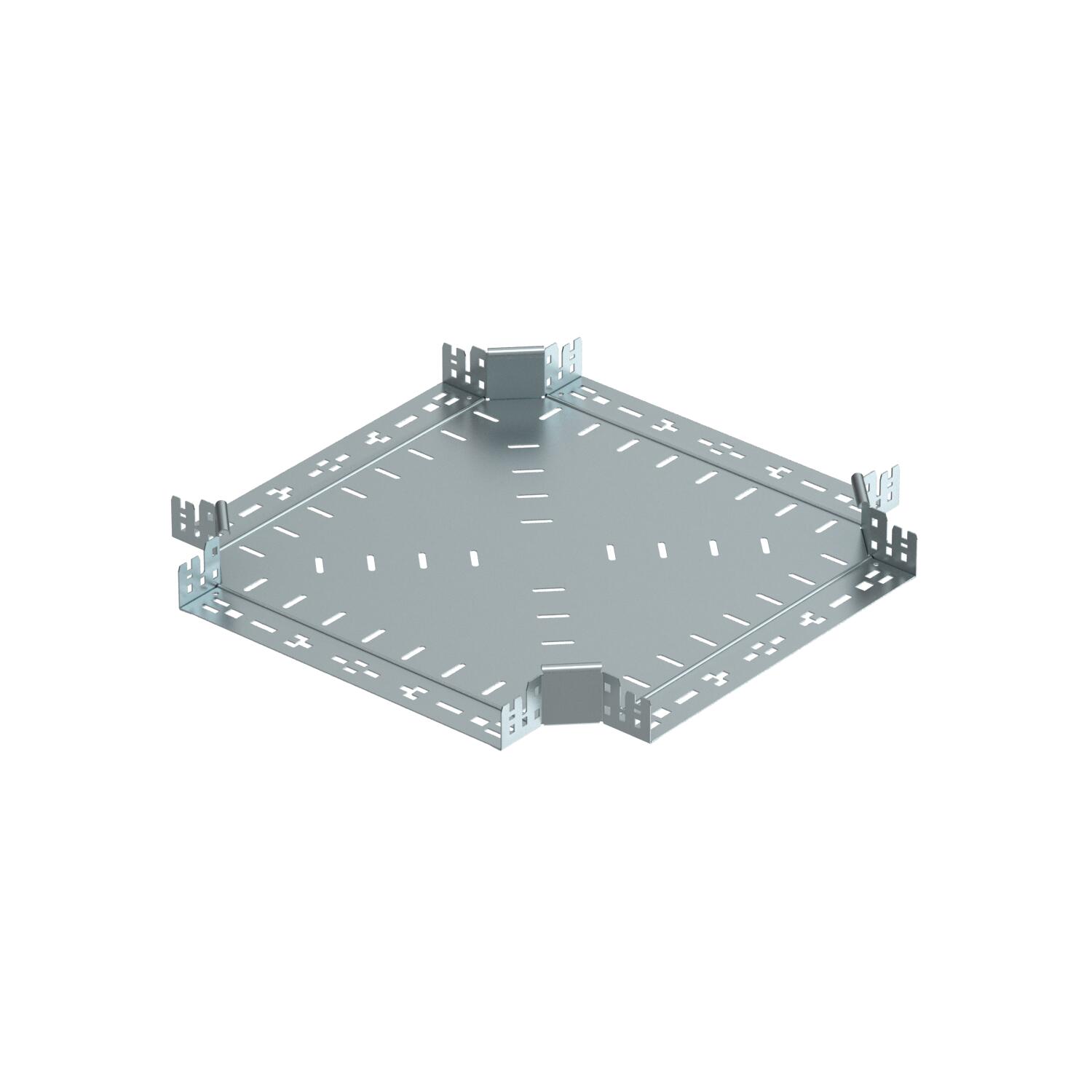

Magic cross-over 60 FS
Item no. 7027009 | EAN 4012195927426
- Product description
-
Product descriptionCross-over with quick connector system. For all cable tray types of 60 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Colour zinc Connector version Integrated connector Dimension 60x400 Dimension B 400 mm Fire protection Use of fire protection ceilings Height 60 mm Height 2 in Maintain electrical functions yes Material Steel Material thickness, floor plate 1,25 mm NATO hole pattern no Plate thickness 1,25 mm Rail thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system Click fastening Wide-span version no Width 400 mm Width 16 in - All types
- Downloads
-
Data sheet RKM 640 FS / 7027009 , 0.19MB , pdfEU declaration of conformity RKM 640 FS / 7027009 , 0.10MB , pdfREACH Declaration of conformity RKM 640 FS / 7027009 , 0.12MB , pdfRoHS Declaration of conformity RKM 640 FS / 7027009 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
