Note: This article is discontinued.
You can find the current article here: 7027415 / Cross-over 60 FT
- Product description
-

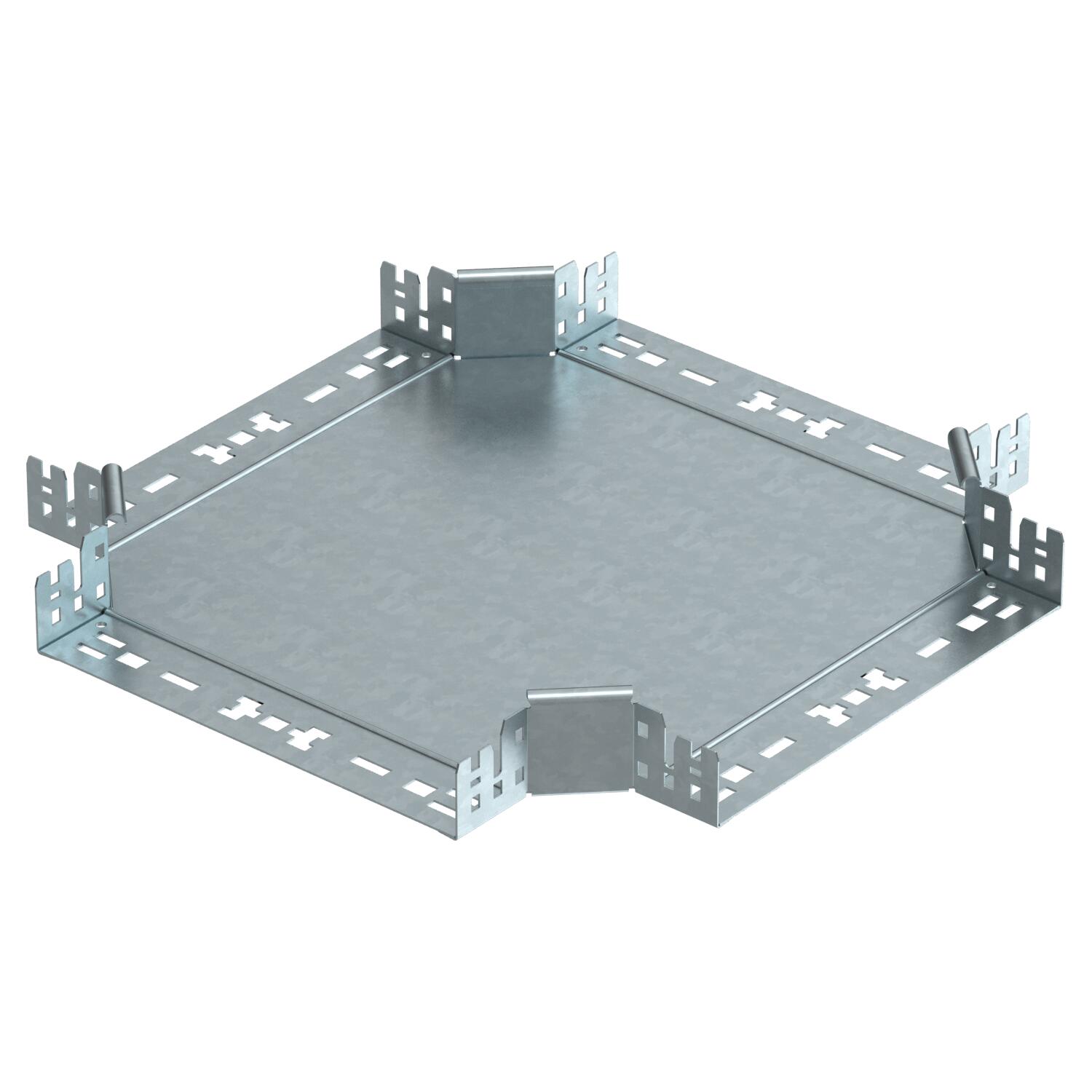

Product descriptionCross-over with quick connector system. For all cable tray types of 60 mm side height.
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Integrated connector Dimension 60x300 Dimension B 300 mm Height 60 mm Height 2 in Maintain electrical functions yes Material Steel Material thickness, floor plate 1,25 mm Plate thickness 1,25 mm Rail thickness 1,25 mm Rustproof steel, pickled no Surface Hot-dip galvanised Type of connector, cable support system Click fastening Wide-span version no Width 12 in Width 300 mm - All types
- Downloads
-
Data sheet RKM 630 FT / 7027027 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RKM 630 FT / 7027027 , 0.10MB , pdfREACH Declaration of conformity RKM 630 FT / 7027027 , 0.12MB , pdfRoHS Declaration of conformity RKM 630 FT / 7027027 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
