Note: This article is discontinued.
You can find the current article here: 7027333 / Cross-over 85 FS

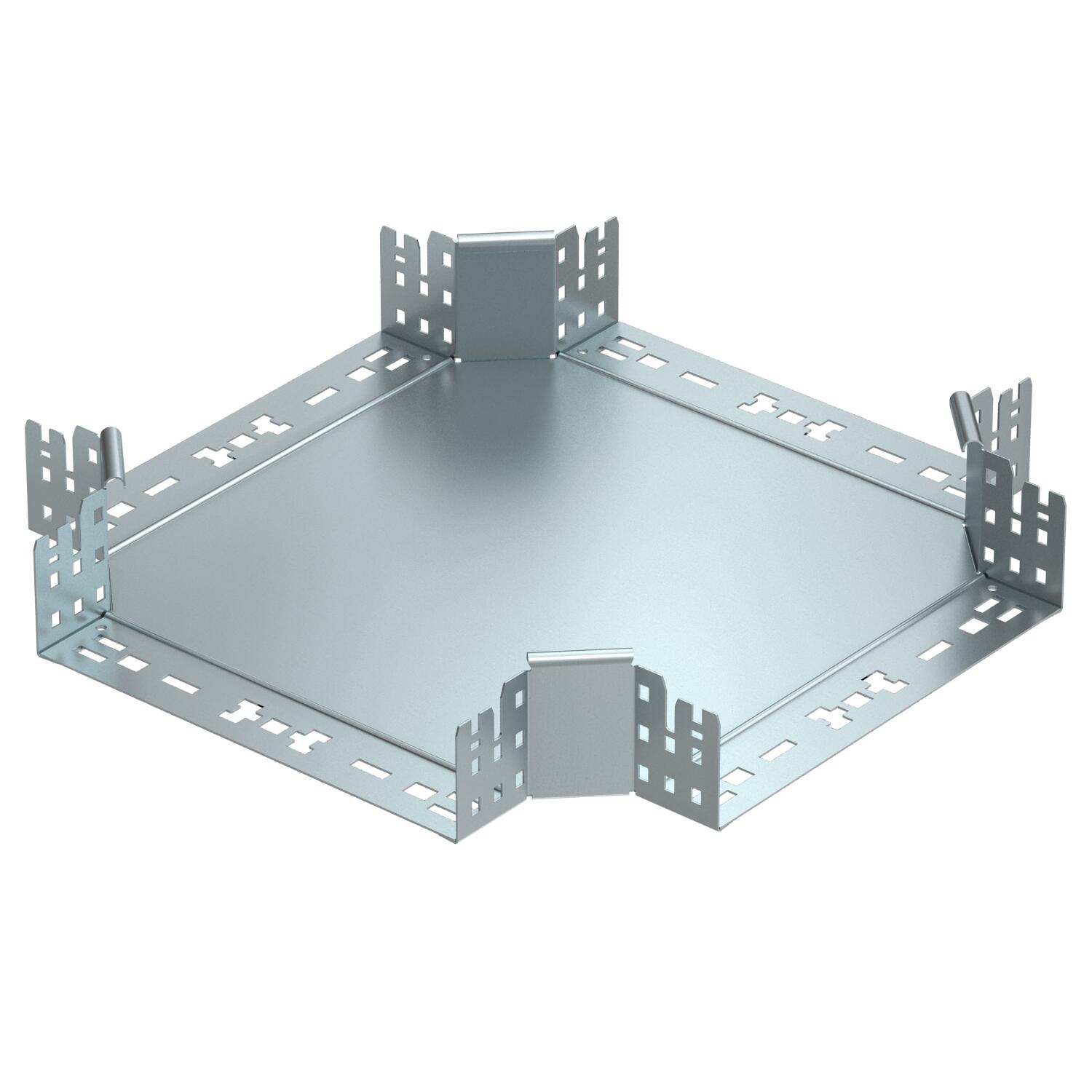

Magic cross-over 85 FS
Item no. 7027085 | EAN 4012195927785
- Product description
-
Product descriptionCross-over with quick connector system. For all cable tray types of 85 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Integrated connector Dimension 85x200 Dimension B 200 mm Height 85 mm Maintain electrical functions no Material Steel Material thickness, floor plate 1,25 mm NATO hole pattern no Plate thickness 1,25 mm Rail thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system Click fastening Wide-span version no Width 200 mm - All types
- Downloads
-
Data sheet RKM 820 FS / 7027085 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RKM 820 FS / 7027085 , 0.10MB , pdfREACH Declaration of conformity RKM 820 FS / 7027085 , 0.12MB , pdfRoHS Declaration of conformity RKM 820 FS / 7027085 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
