Note: This article is discontinued.
You can find the current article here: 6038302 / T piece 110 FS

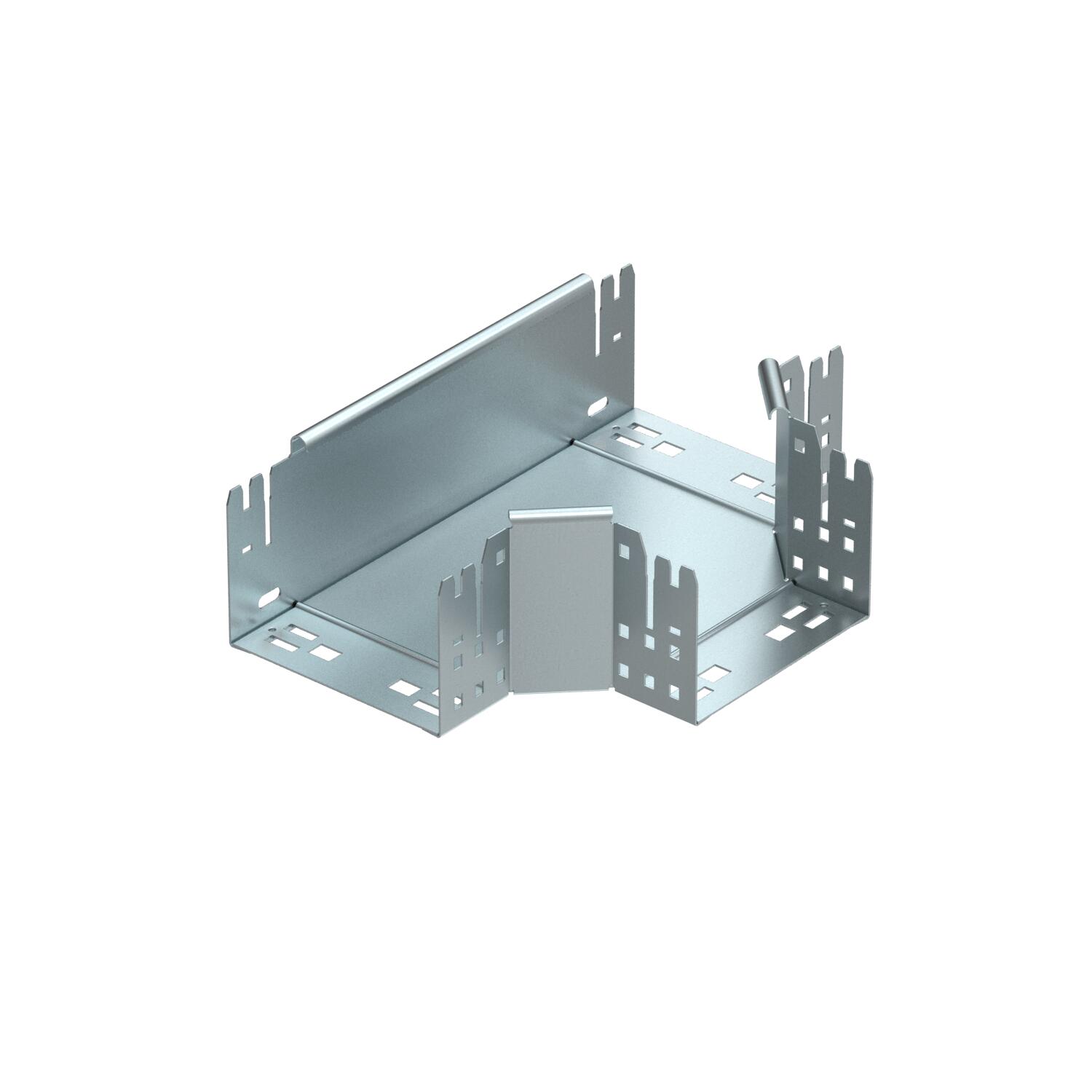

Magic tee 110 FS
Item no. 6042011 | EAN 4012195896104
- Product description
-
Product descriptionTee with quick connector system. For all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data

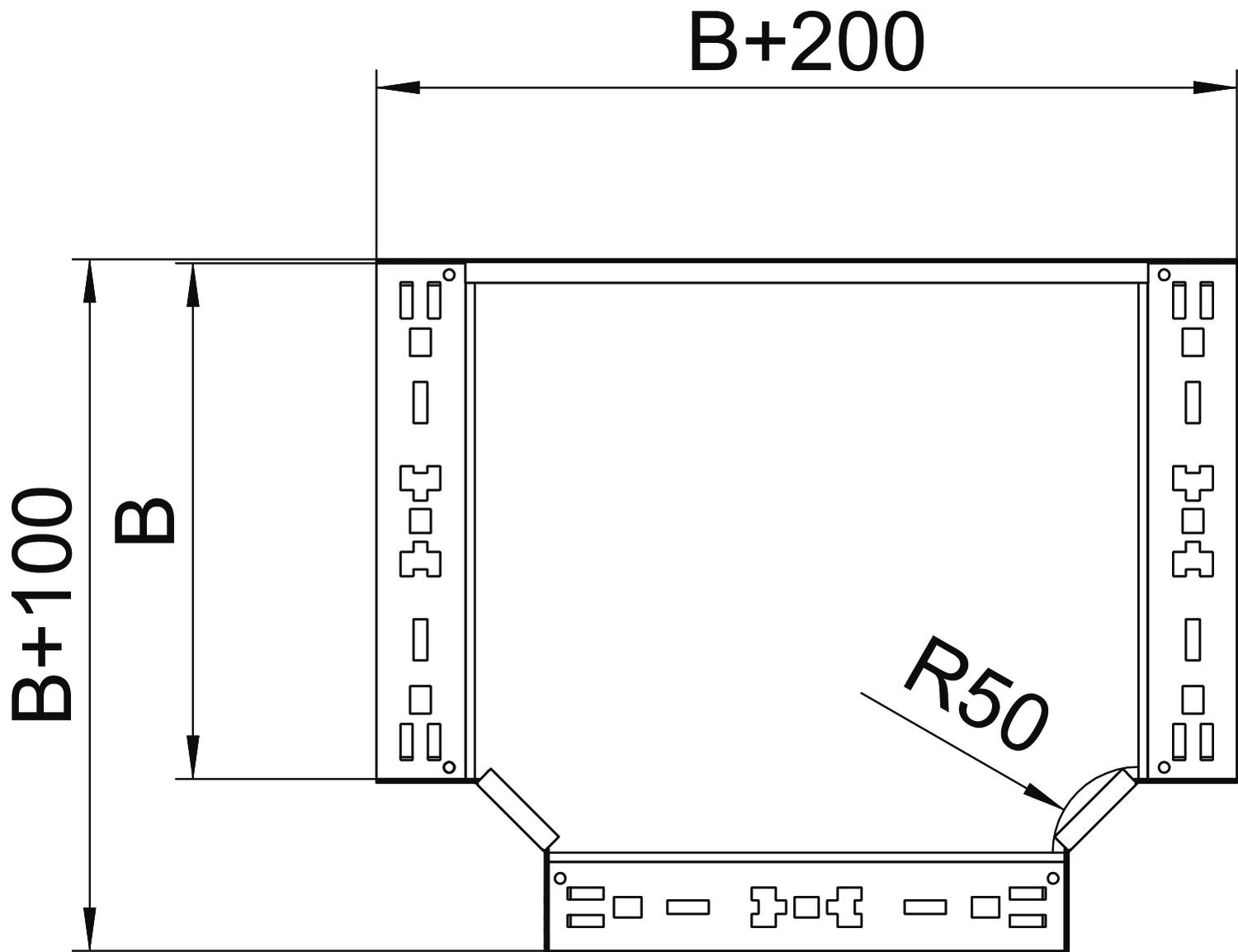

Bend (angle) 90° Change of direction Horizontal Connector version Integrated connector Dimension 110x150 Dimension B 150 mm Height 110 mm Maintain electrical functions no Material Steel NATO hole pattern no Plate thickness 1,25 mm Rail thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Type T piece horizontal Type of connector, cable support system Screwed Wide-span version no Width 150 mm - All types
-
All types
- Downloads
-
Data sheet RTM 115 FS / 6042011 , 0.24MB , pdfEU declaration of conformity RTM 115 FS / 6042011 , 0.10MB , pdfUK Declaration of Conformity RTM 115 FS / 6042011 , 0.14MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
