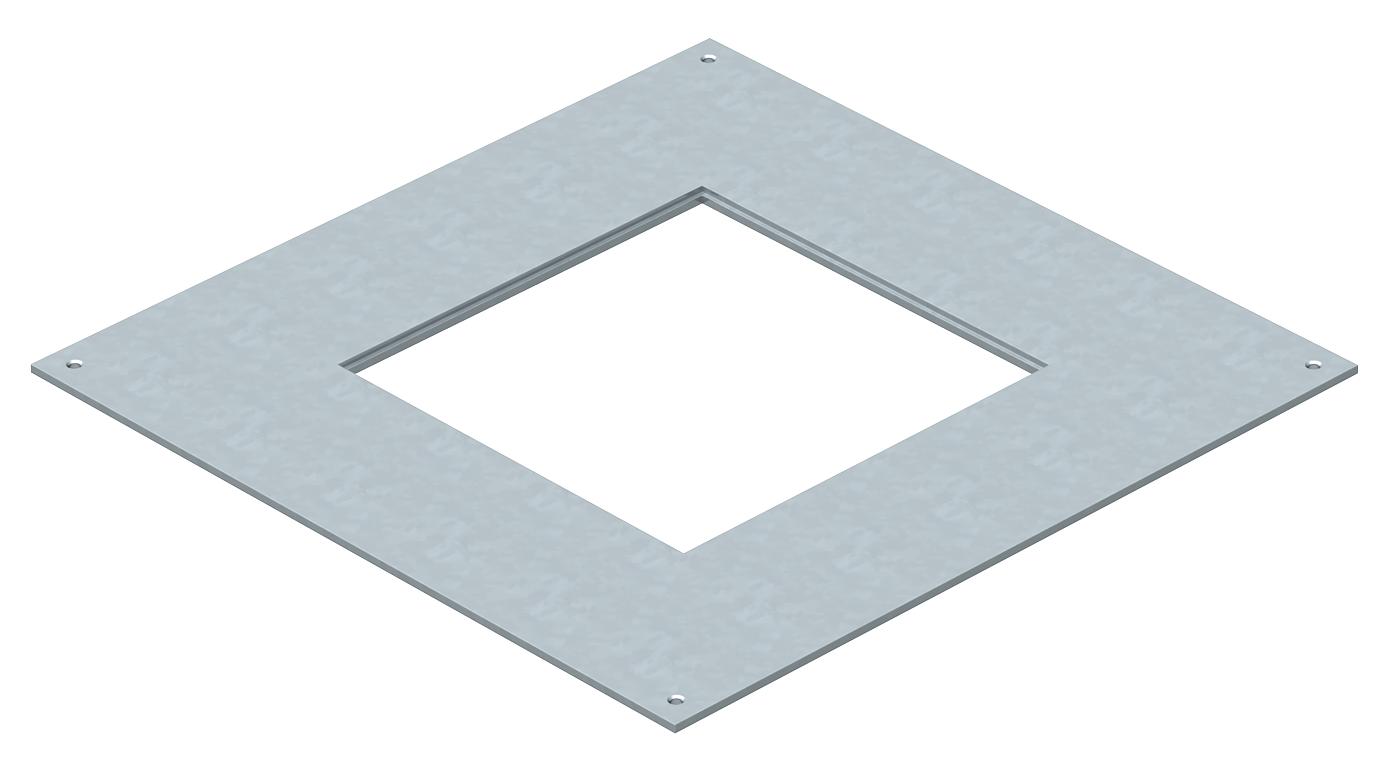

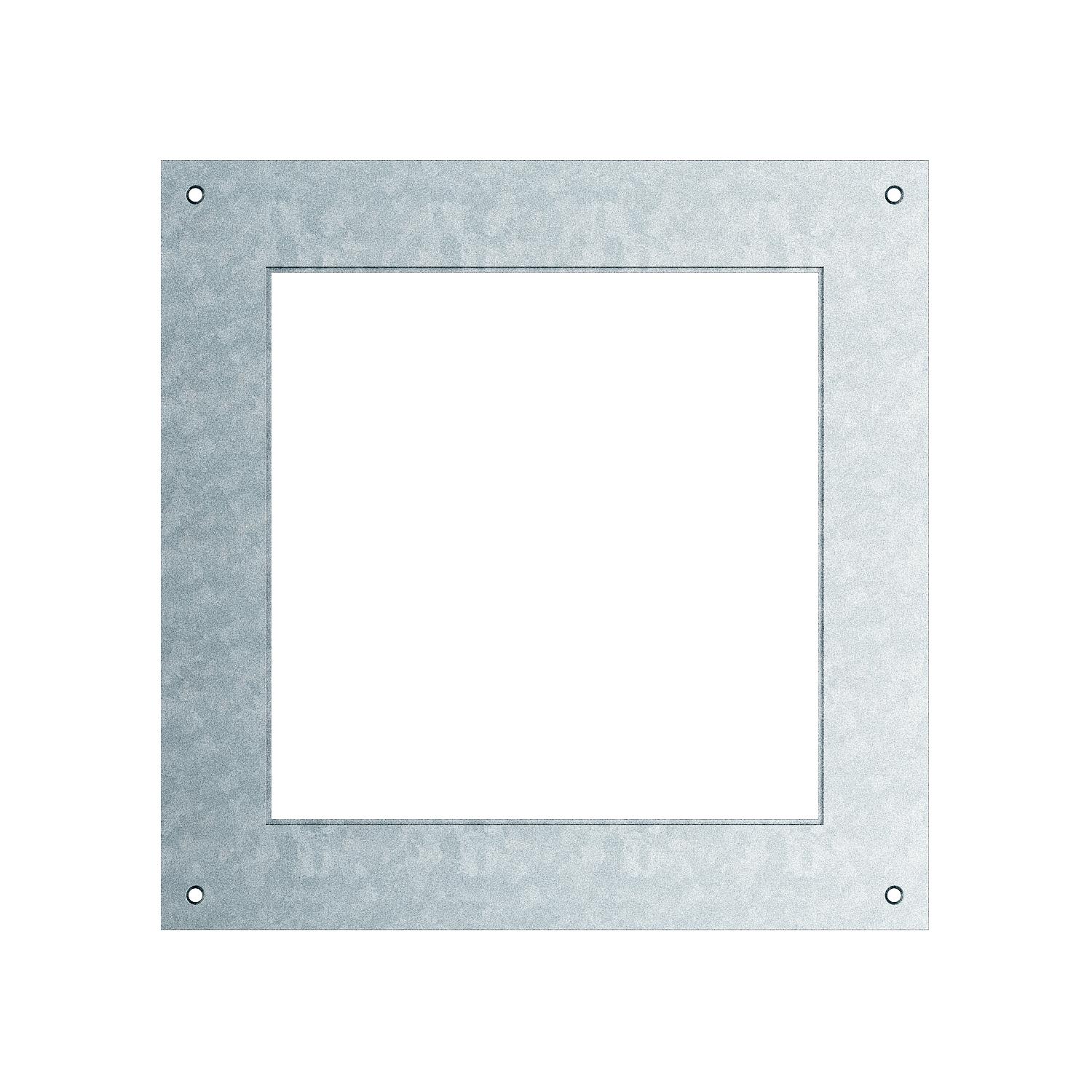

Mounting lid 250, nominal size 4
Item no. 7400459 | EAN 4012195431251
- Product description
-
Product descriptionMounting lid for underfloor junction and branch box of type UZD250-3/4 for the installation of an installation unit of nominal size 4. Installation opening 3 mm recessed for later blanking lock with lid blind plate.
-
- Technical data
-
Technical data

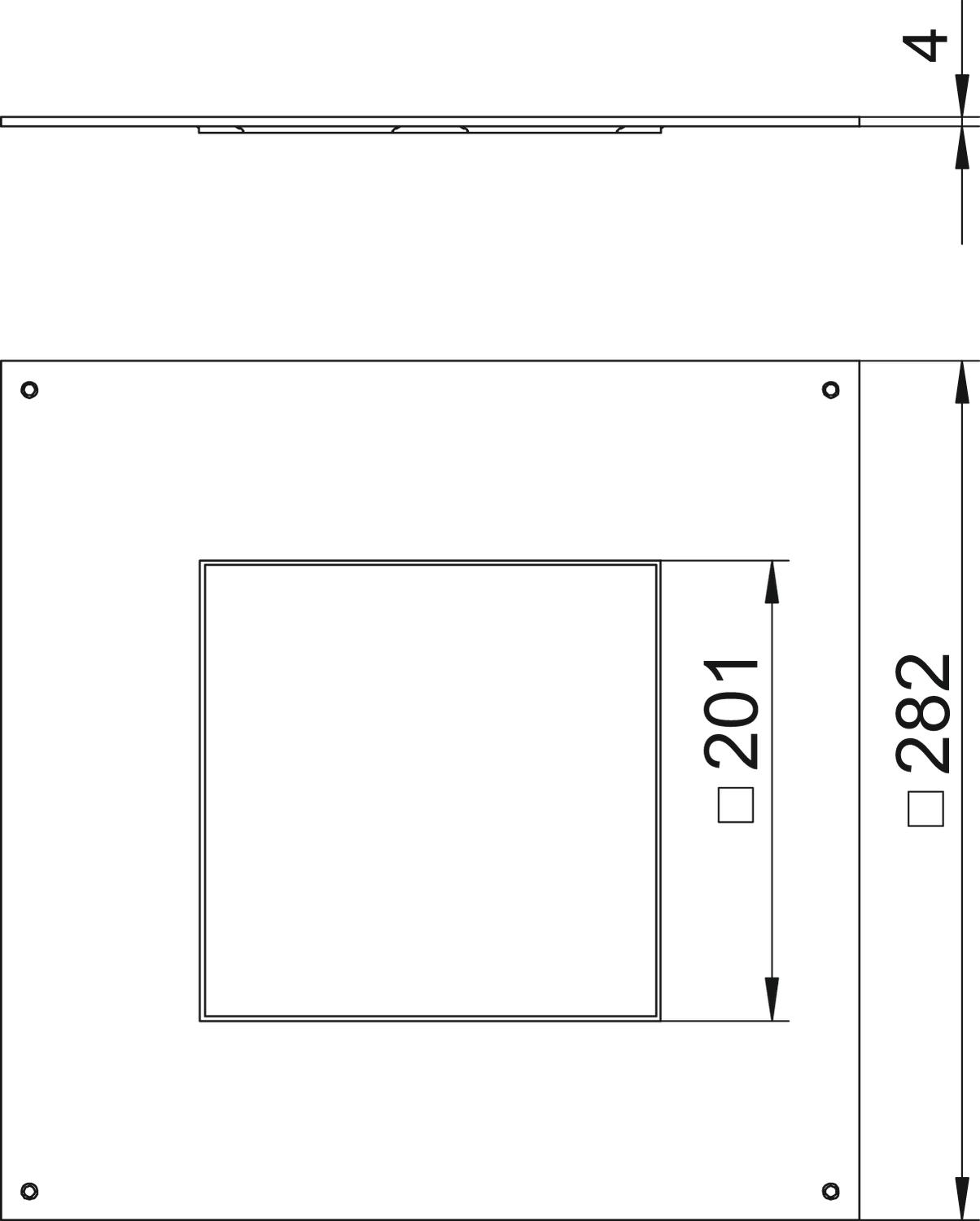

Dimension 282x282x4 Dimension A 282 mm Dimension a 201 mm Floor care Dry Heavy-duty version no Installation opening for on-floor tank no Length 282 mm Material Steel Material thickness 4 mm Mounting opening Square Mounting opening cover no Nominal size 250 mm Nominal size for device installation units 4 Seal installation option no Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Surface Strip galvanized Trunking width, max. 250 mm Trunking width, min. 190 mm Width 282 mm - All types
- Downloads
-
Data sheet DUG 250-3 4 / 7400459 , 0.16MB , pdfEU declaration of conformity DUG 250-3 4 / 7400459 , 0.11MB , pdfREACH Declaration of conformity DUG 250-3 4 / 7400459 , 0.12MB , pdfRoHS Declaration of conformity DUG 250-3 4 / 7400459 , 0.12MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfMounting instructions EÜK screed-covered duct system generation 4 , 10.26MB , pdfNo invitation to tender text is available for this product.
