Mounting lid 350, nominal size R7
Item no. 7400533 | EAN 4012195431503
- Product description
-

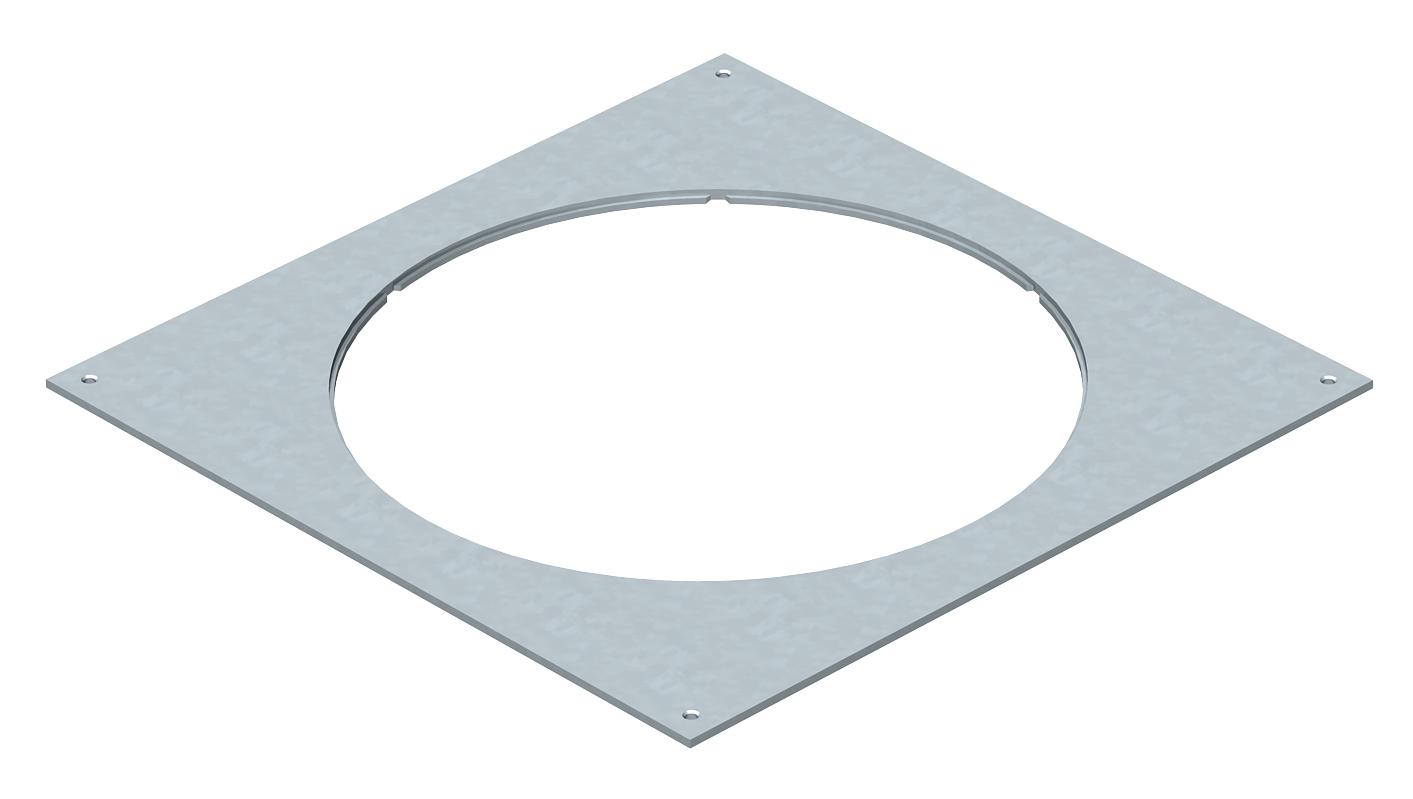

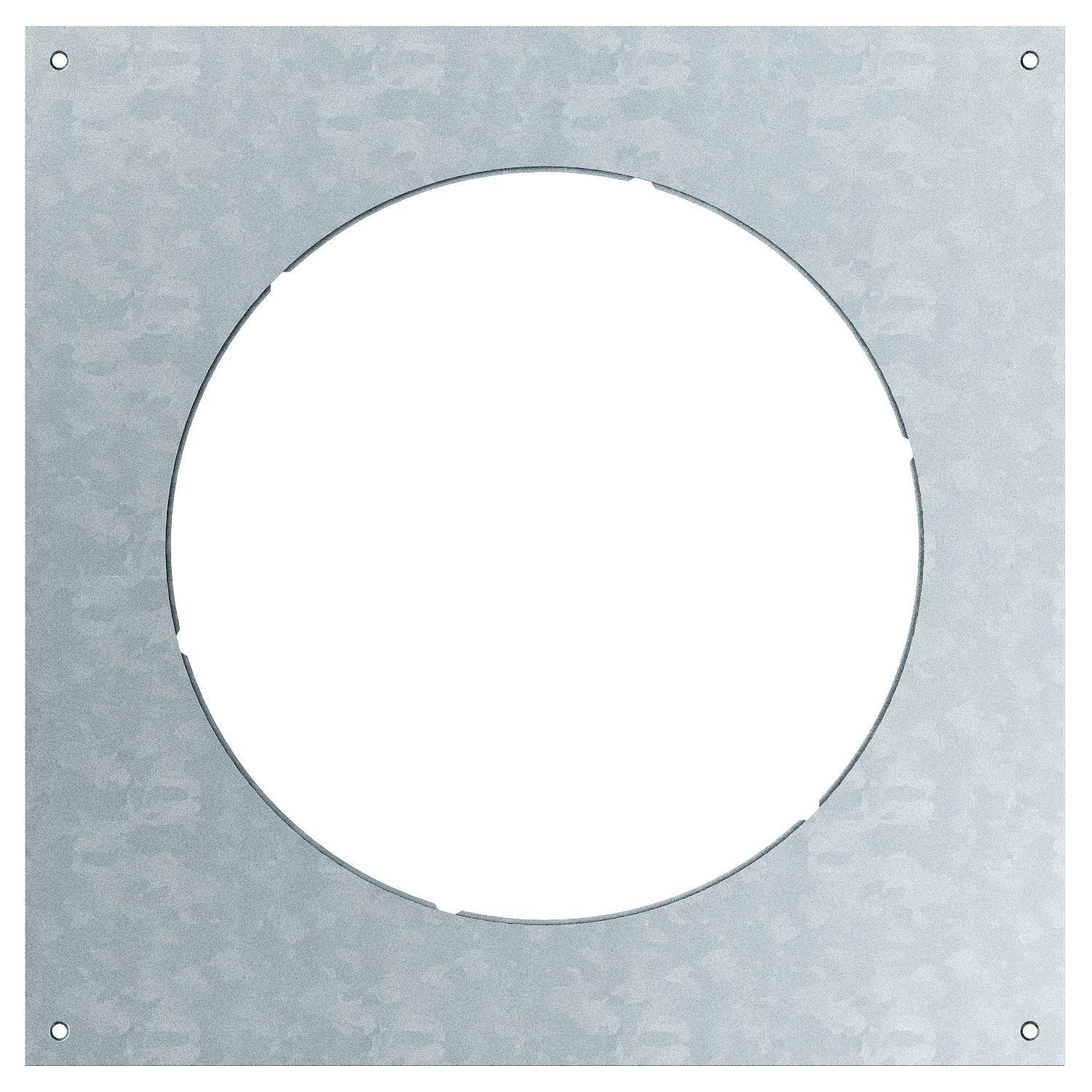

Product descriptionMounting lid for underfloor junction and branch boxes of type UZD350-3/4 for the installation of an installation unit of nominal size R7. Installation opening 3 mm recessed as a later blanking lock with lid blanking plate.
-
- Technical data
-
Technical data

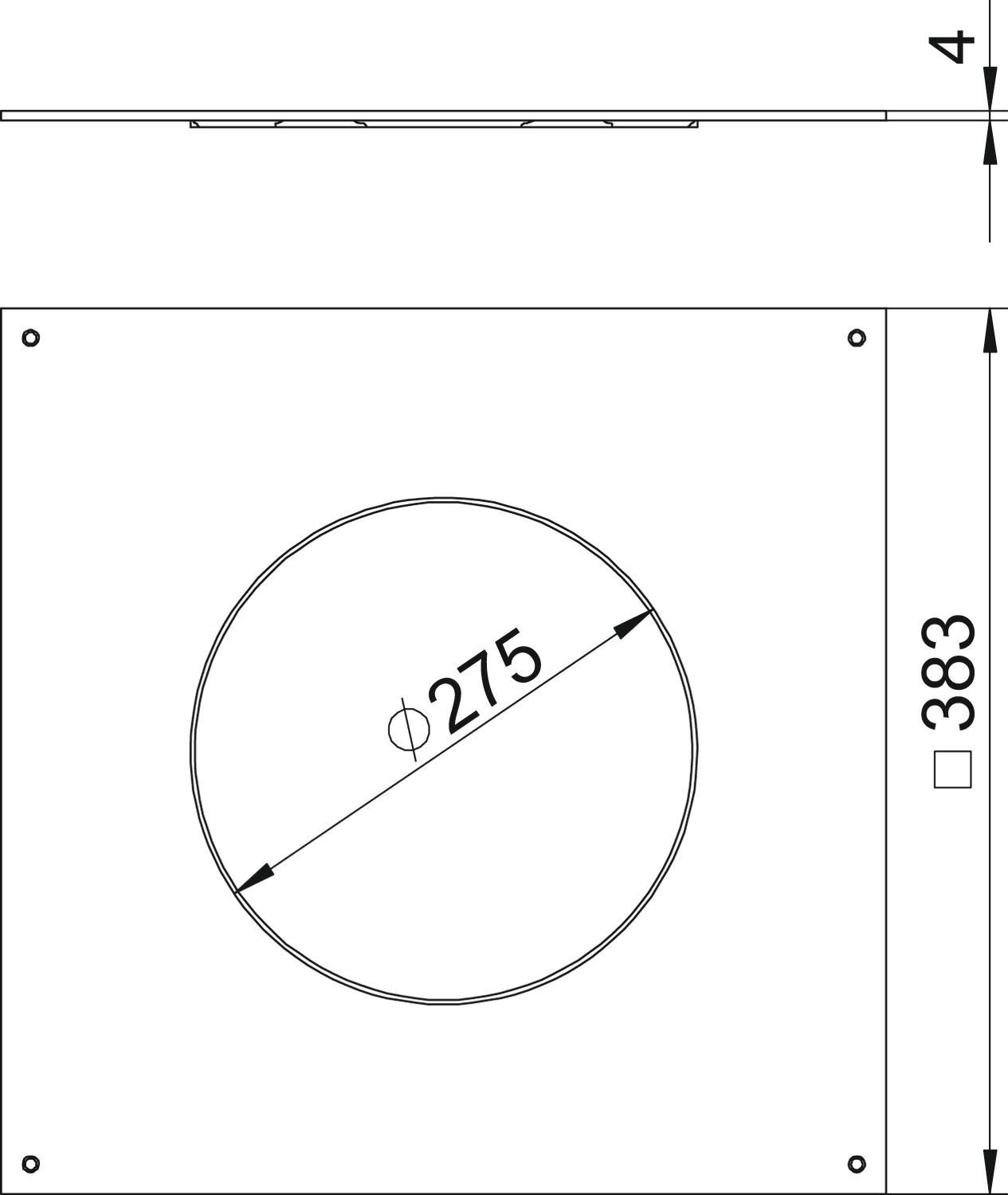

Dimension 383x383x4 Dimension A 383 mm Dimension d Ø 275 mm Floor care Dry Heavy-duty version no Installation opening for on-floor tank no Length 383 mm Material Steel Material thickness 4 mm Mounting opening Round Mounting opening cover no Nominal size 350 mm Nominal size for device installation units R7 Seal installation option no Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Surface Strip galvanized Trunking width, max. 350 mm Trunking width, min. 190 mm Width 383 mm - All types
- Downloads
-
Data sheet DUG 350-3 R7 / 7400533 , 0.16MB , pdfEU declaration of conformity DUG 350-3 R7 / 7400533 , 0.11MB , pdfREACH Declaration of conformity DUG 350-3 R7 / 7400533 , 0.12MB , pdfRoHS Declaration of conformity DUG 350-3 R7 / 7400533 , 0.12MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfMounting instructions EÜK screed-covered duct system generation 4 , 10.26MB , pdfNo invitation to tender text is available for this product.
