Pipe end cap, splittable, metric, light grey M32
morepic-1 morepic-2 video-1

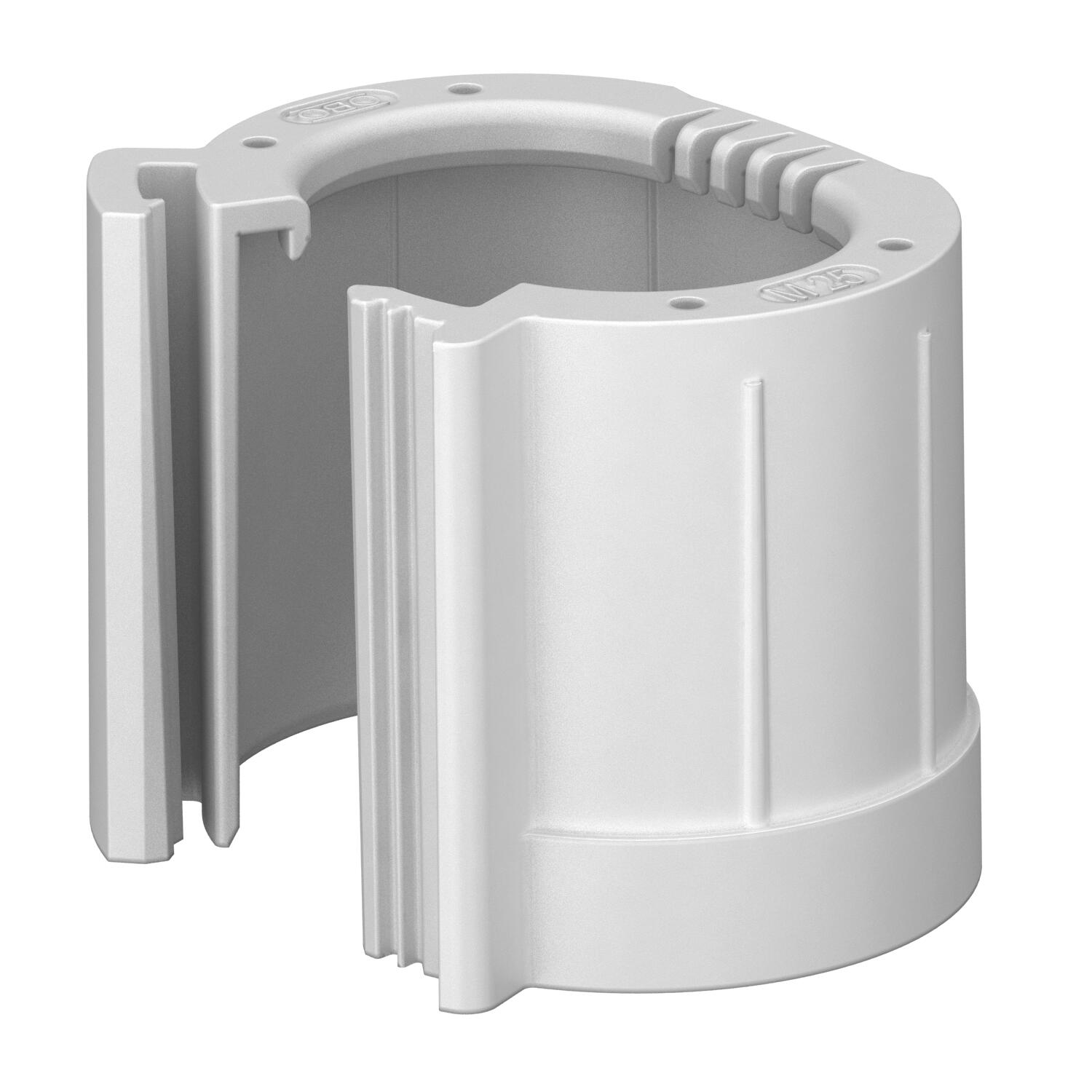

Pipe end cap, splittable, metric, light grey

Item no. 2047855 | EAN 4012196332274

Product description
Product description
Separable pipe end cap to slot onto metric electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
  • Halogen-free; without chlorine, fluorine and bromine
  • UV-resistant
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

Brushed surface no
Colour Light grey; RAL 7035
Dimension M32

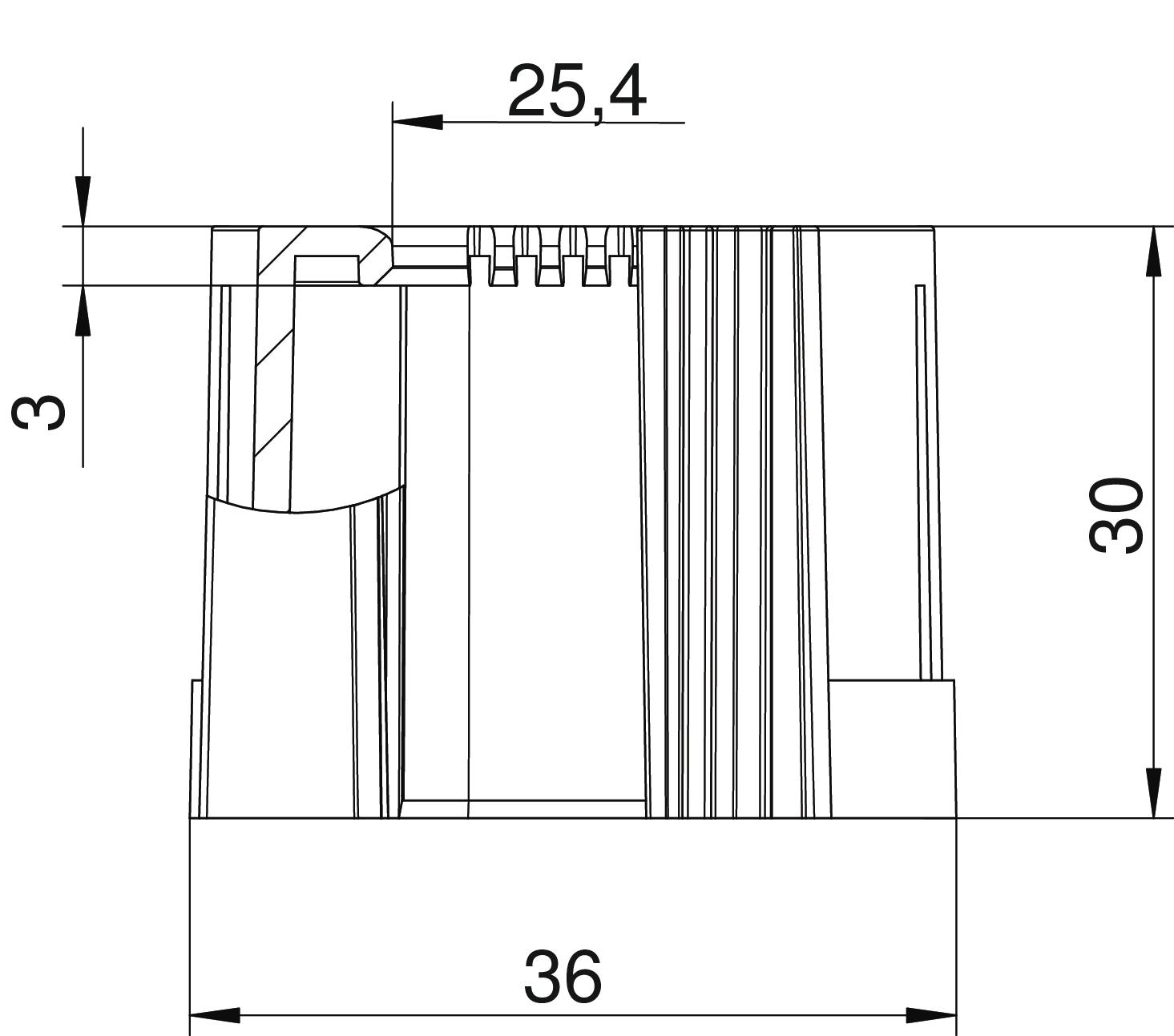

Dimension D1 36 mm
Dimension D2 25,4 mm
Dimension L1 30 mm
Dimension L2 3 mm
for pipe diameter 32 mm
Halogen-free yes
Material Polyethylene
Polished surface no
Size M32
Version for Connector
All types

All types

Types Size Item no. Quantity SSU
129 TB M25 M25 2047839
50 piece
129 TB M32 M32 2047855
50 piece
129 TB M40 M40 2047863
30 piece
129 TB M50 M50 2047890
30 piece
