Round conductor, aluminium 8 | 20 | 150 | 50 | Aluminium

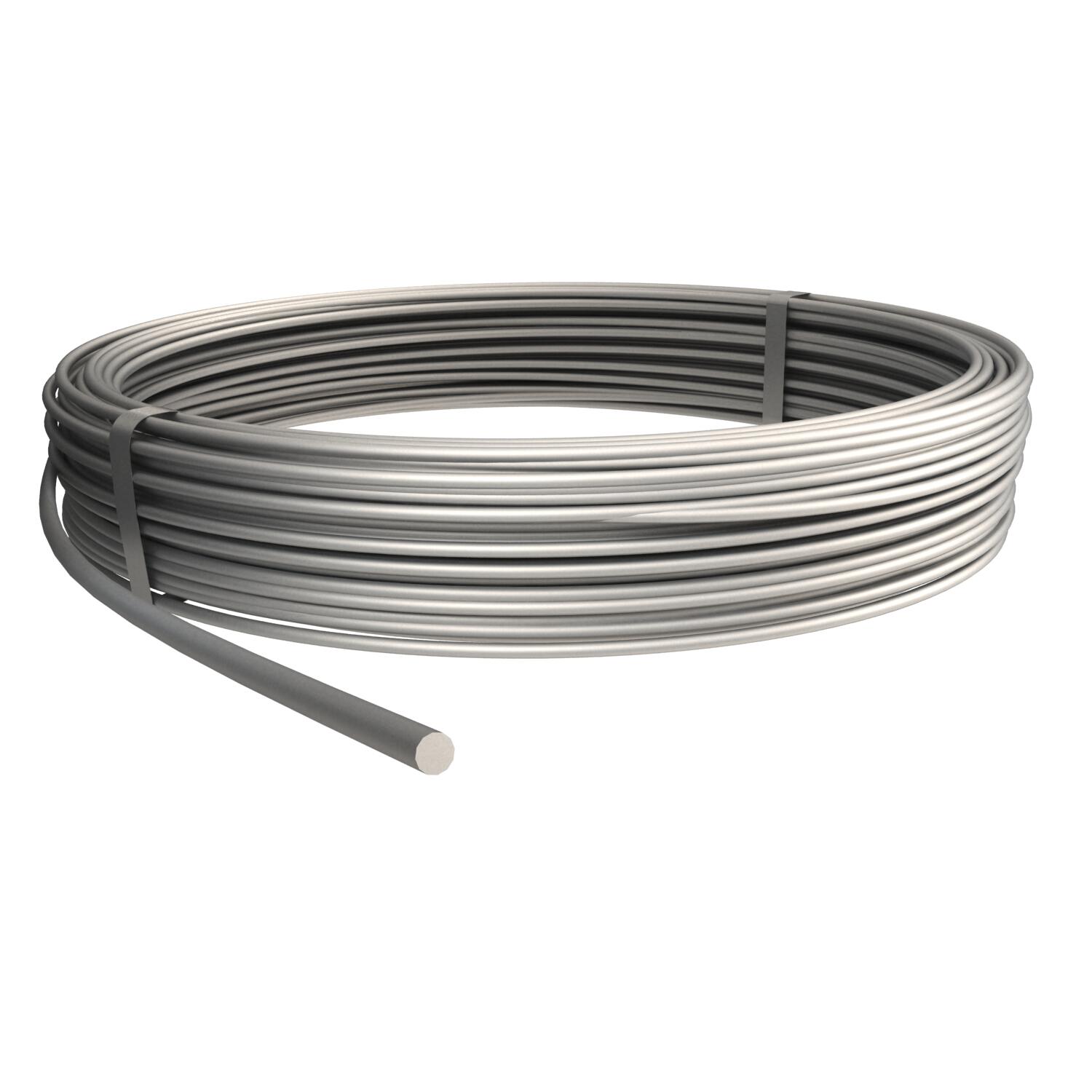

Round conductor, aluminium

Item no. 5021286 | EAN 4012195381914

Item no. / Types	5021286 / RD 8-ALU

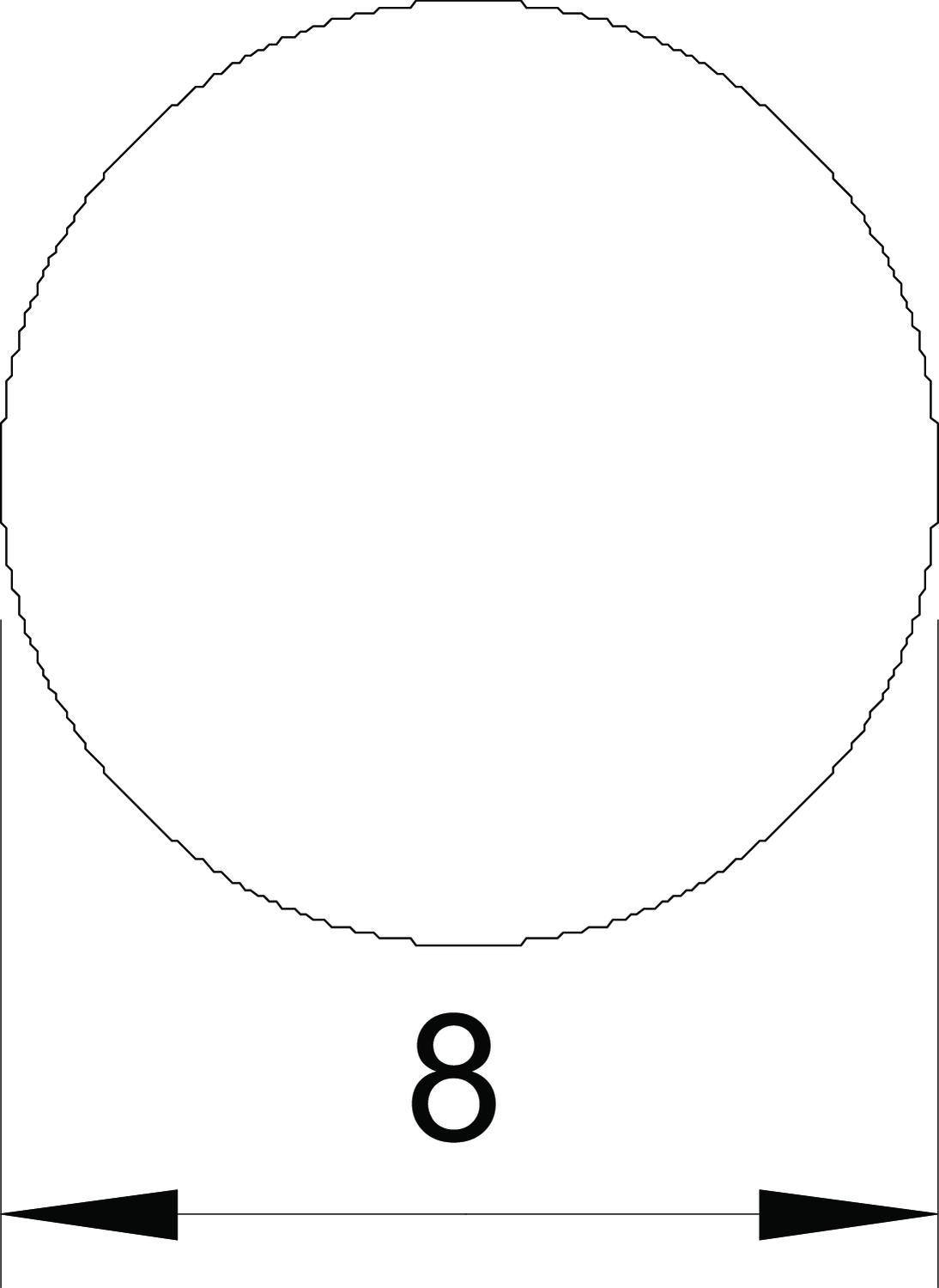

Diameter	8 mm

Normal ring (ca. kg)	20

Nomal ring (approx. m)	150

Cross-section	50 mm²

Material	Aluminium

Product description

Product description

• Can be used as a conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• RD 8 ALU: Semi-hard (E-AlMgSi0.5 corresponds to DIN 48801)
• RD 8 ALU-T: Can be subjected to torsion (E-AlMgSi0.5 corresponds to DIN 48801)
• RD 10 ALU: Pure aluminium (E-Al corresponds to DIN 48801)
• AL and ALMgSi may not be routed directly on, in or under plaster, mortar or concrete, nor routed in the earth

Technical data

Technical data

Cross-section	50 mm²
Diameter	8 mm
Dimension	8mm
Dimension D	8 mm
High voltage-resistant, insulated version	no
Length tolerance ±	5 %

Material	Aluminium
Material jacket	Without
Material property	Semi-hard
Nomal ring (approx. m)	150
Normal ring (ca. kg)	20
Number of individual wires	1

All types

All types

Types	Diameter	Normal ring (ca. kg)	Nomal ring (approx. m)	Cross-section	Material	Item no.	Quantity	SSU
RD 8-ALU	8 mm	20	150	50 mm²	Aluminium	5021286	m	150 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU

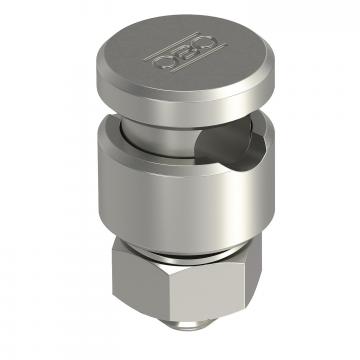

Connector, Rd 8−10 mm with pressure trough	5001 N-VA	5304176	piece	10 piece
Connector, Rd 8−10 mm, double, with pressure trough	5002 N-VA	5304270	piece	10 piece

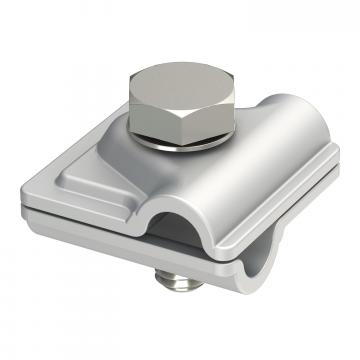

Vario quick connector ALU	249 8-10 ALU	5311519	piece	30 piece
