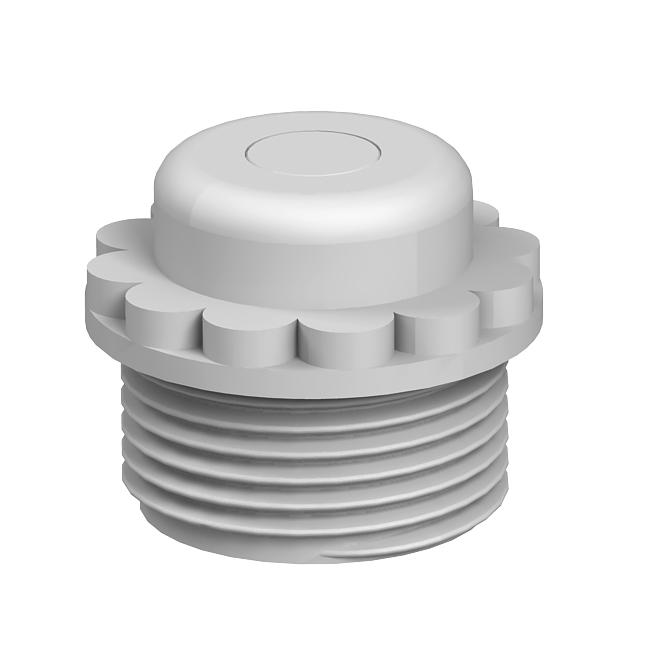

Screw-in nipple, metric thread, with perforation membrane
Item no. 2032386 | EAN 4012195481690
- Product description
-
Product descriptionWith perforation membranes, the opening D is pre-marked, but closed.
Grip seal to screw into metric thread to IEC 423.
With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required.
Protection rating achievable with careful mounting: IP54.
With perforation membranes, the opening D is pre-marked, but closed.
-
- Technical data
-
Technical data

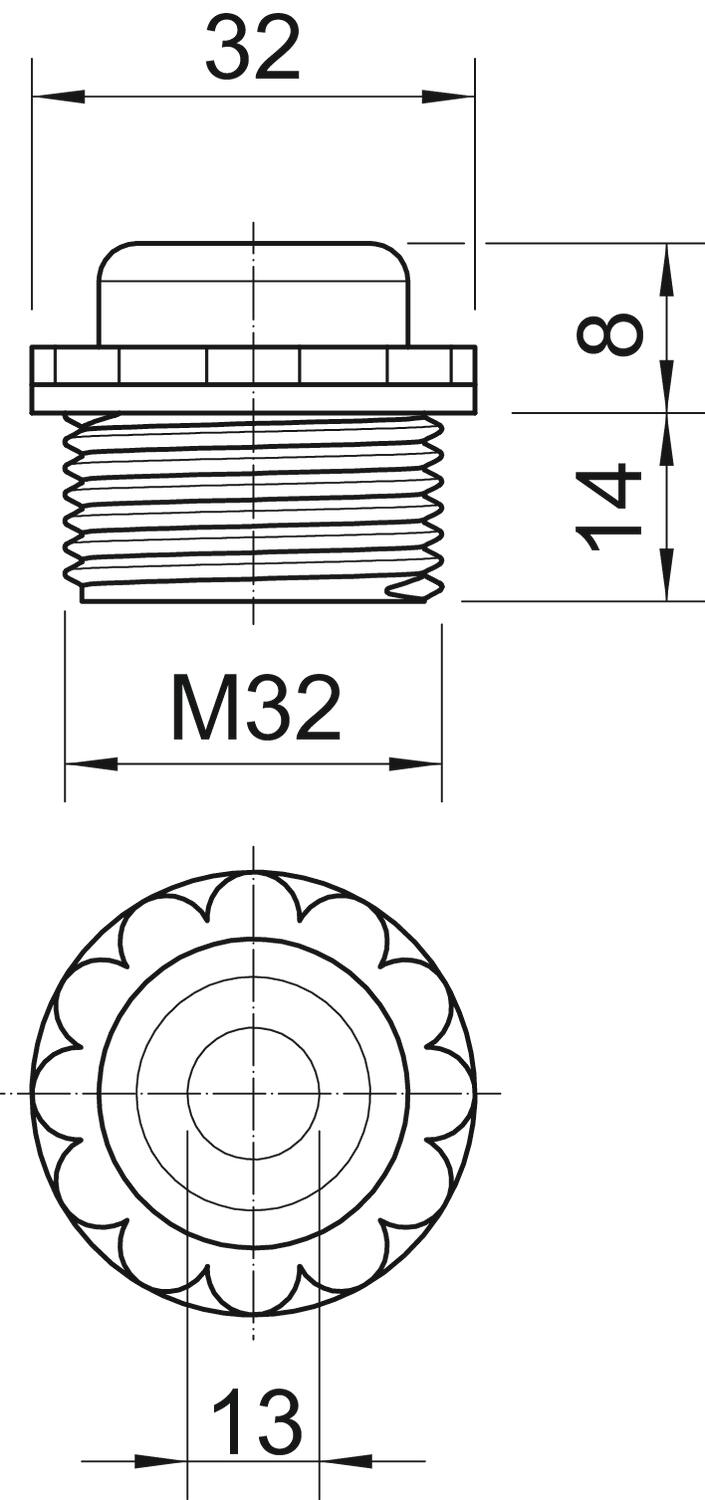

Colour Light grey; RAL 7035 Dimension M32 Dimension D 13 mm Dimension E 39 mm Dimension L1 14 mm Dimension L2 8 mm Halogen-free yes Material Polyethylene Protection rating IP54 Size M32 Thread length 14 mm WAF 34 - All types
- Downloads
-
Data sheet 90 M32 GE / 2032386 , 0.18MB , pdfREACH Declaration of conformity 90 M32 GE / 2032386 , 0.12MB , pdfRoHS Declaration of conformity 90 M32 GE / 2032386 , 0.12MB , pdf
