Bolt	M5 x 14
Clamping range D, max.	21 mm
Clamping range D, min.	18 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,067 kg CO₂e / 1 Piece
Dimension	18-21mm

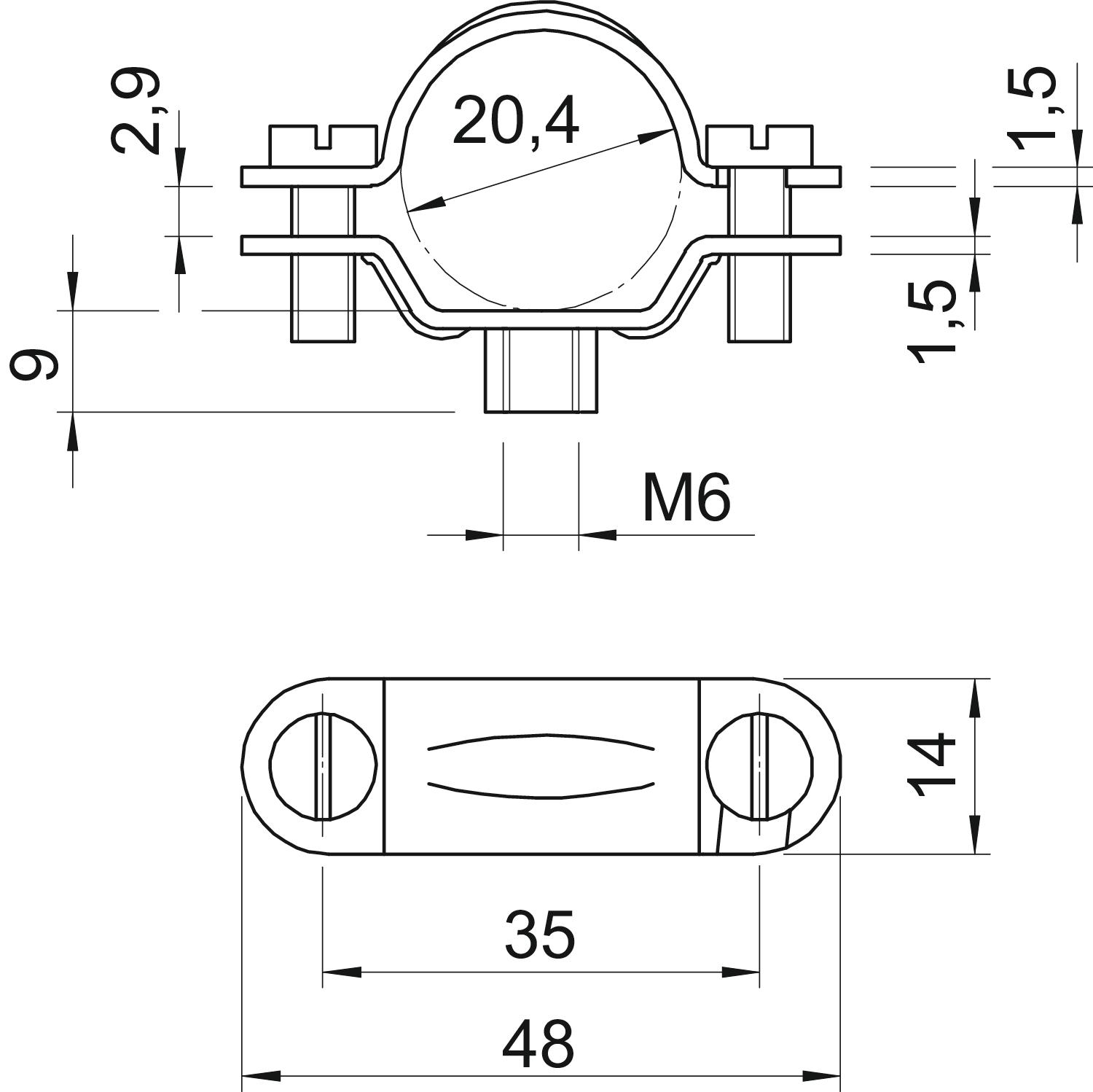

Dimension A	48 mm
Dimension b	14 mm
Dimension B	35 mm
Dimension D	20,4 mm
Dimension d min.	20,4 mm
Dimension H	9 mm
Dimension L	48 mm
Dimension t1 (mm)	1,5
Dimension t2 (mm)	1,5

Types	Material thickness	Hole size	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.	Quantity	SSU
2900 M6 13-16 G	1.5 mm	M6 mm	13.5 mm	16 mm	Steel	Electrogalvanized	1383094	piece	50 piece
2900 M6 16-19 G	1.5 mm	M6 mm	16.5 mm	19 mm	Steel	Electrogalvanized	1383116	piece	50 piece
2900 M6 18-21 G	1.5 mm	M6 mm	18 mm	21 mm	Steel	Electrogalvanized	1383132	piece	50 piece
2900 M6 19-23 G	1.5 mm	M6 mm	19 mm	23 mm	Steel	Electrogalvanized	1383167	piece	50 piece
2900 M6 24-29 G	1.5 mm	M6 mm	24 mm	29 mm	Steel	Electrogalvanized	1383213	piece	50 piece
2900 M6 30-34 G	2 mm	M6 mm	30 mm	34 mm	Steel	Electrogalvanized	1383299	piece	50 piece
2900 M6 33-38 G	2 mm	M6 mm	33 mm	38 mm	Steel	Electrogalvanized	1383310	piece	25 piece
2900 M6 43-48 G	2 mm	M6 mm	43 mm	48 mm	Steel	Electrogalvanized	1383361	piece	20 piece
2900 M6 39-42 G	2 mm	M6 mm	39 mm	42 mm	Steel	Electrogalvanized	1383418	piece	25 piece
2900 M6 49-55 G	2 mm	M6 mm	49 mm	55 mm	Steel	Electrogalvanized	1383426	piece	20 piece
2900 M6 54-60 G	2 mm	M6 mm	54 mm	60 mm	Steel	Electrogalvanized	1383485	piece	20 piece
2900 M6 61-64 G	2 mm	M6 mm	61 mm	64 mm	Steel	Electrogalvanized	1383507	piece	20 piece

Screw-in spacer clip, universal

All types
