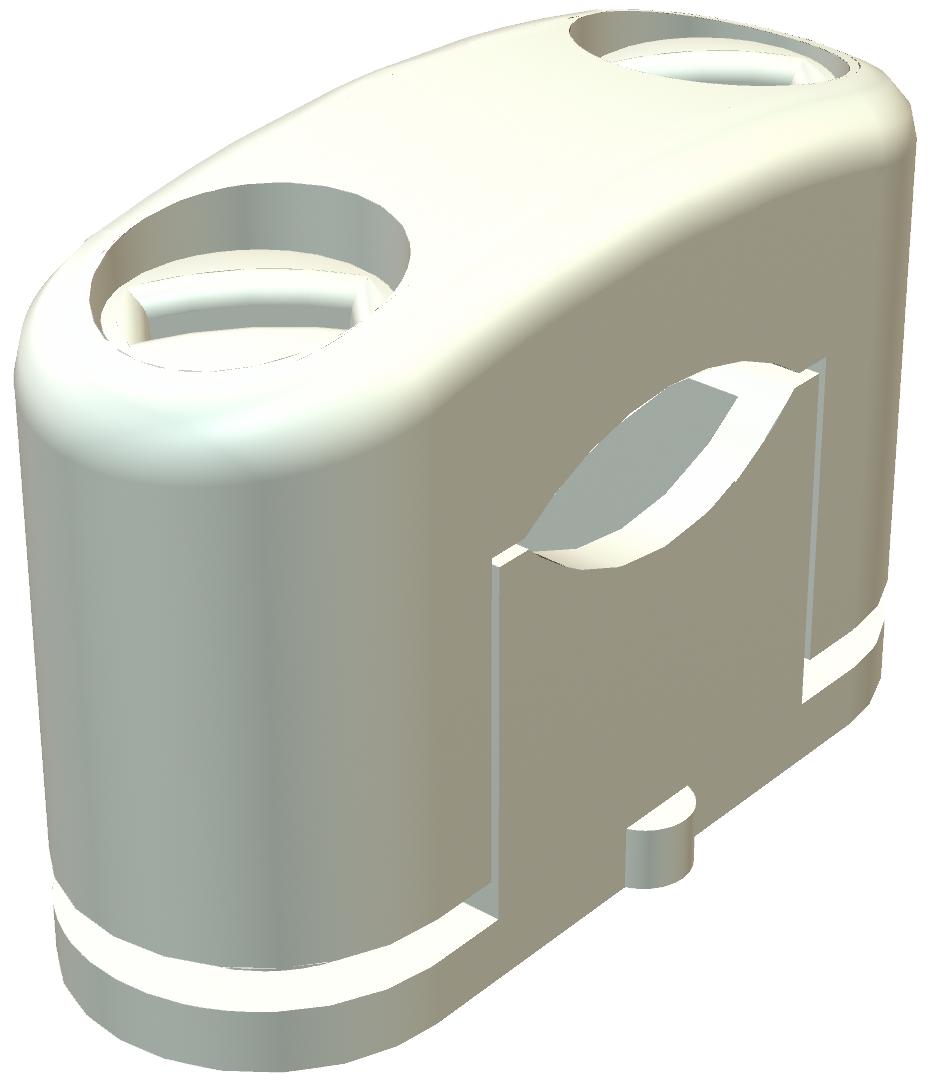

SOM clip, single
Item no. 2124343 | EAN 4012195196754
- Product description
-
Product descriptionWith plastic screws, so corrosion-protected, with slot for fastening with wood screws or 5 mm knock-in anchors.
-
- Technical data
-
Technical data

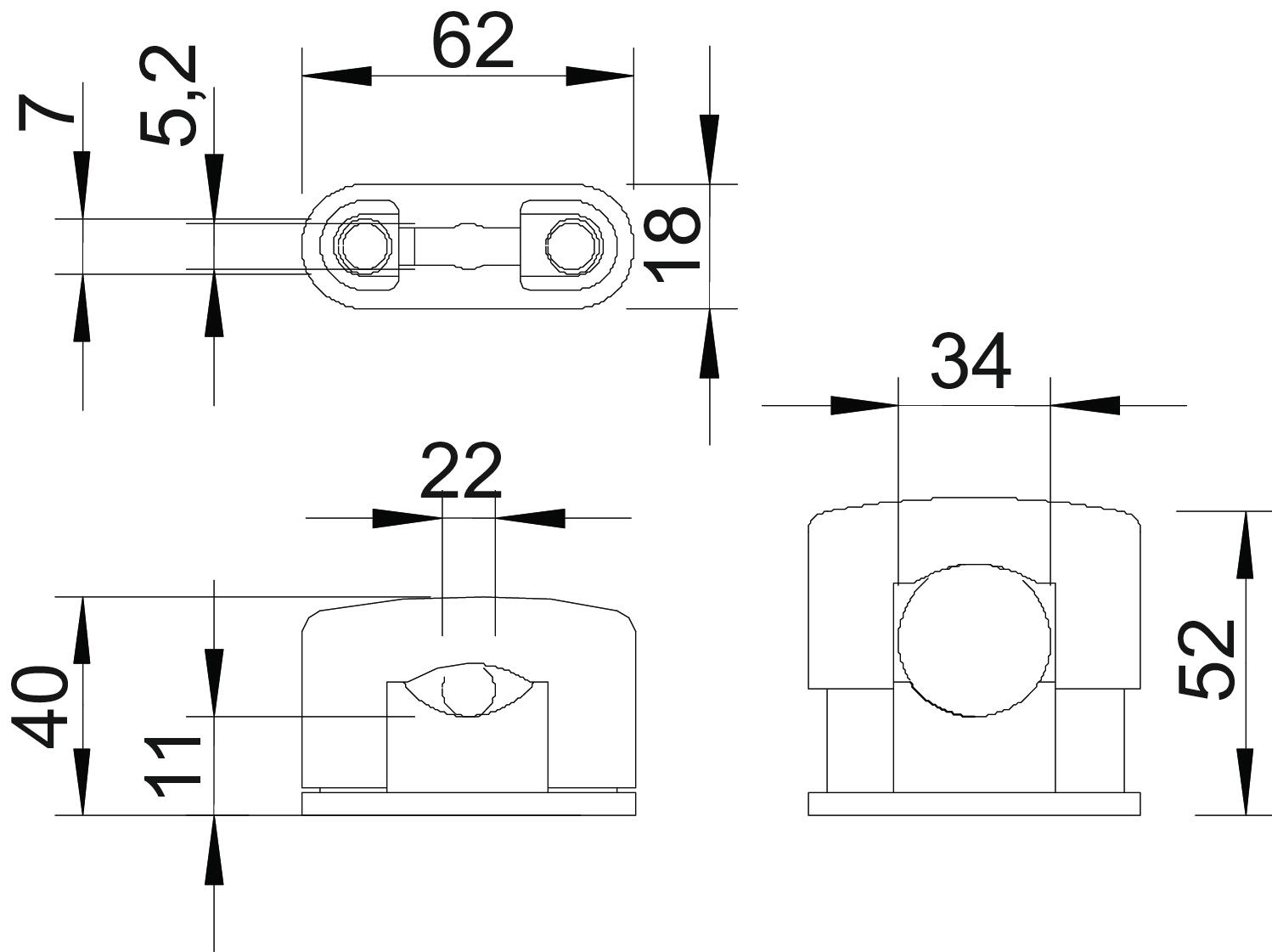

Bolt M8 x 23 Clamping range D, max. 34 mm Clamping range D, min. 22 mm Colour Light grey; RAL 7035 Dimension 22-34mm Dimension b 18 mm Dimension b1 5,2 mm Dimension d max. 34 mm Dimension d min. 22 mm Dimension H1 11 mm Dimension H2 40 mm Dimension H3 52 mm Dimension L 62 mm Fastening type Screw hole Halogen-free yes Material Polystyrene Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant no Version for Closed - All types
- Downloads
-
Data sheet 3082 LGR / 2124343 , 0.21MB , pdfEU declaration of conformity 3082 LGR / 2124343 , 0.06MB , pdfREACH Declaration of conformity 3082 LGR / 2124343 , 0.12MB , pdfRoHS Declaration of conformity 3082 LGR / 2124343 , 0.12MB , pdf
