Spacer clip 732 A2
Item no. 1362636 | EAN 4012196609420
- Product description
-

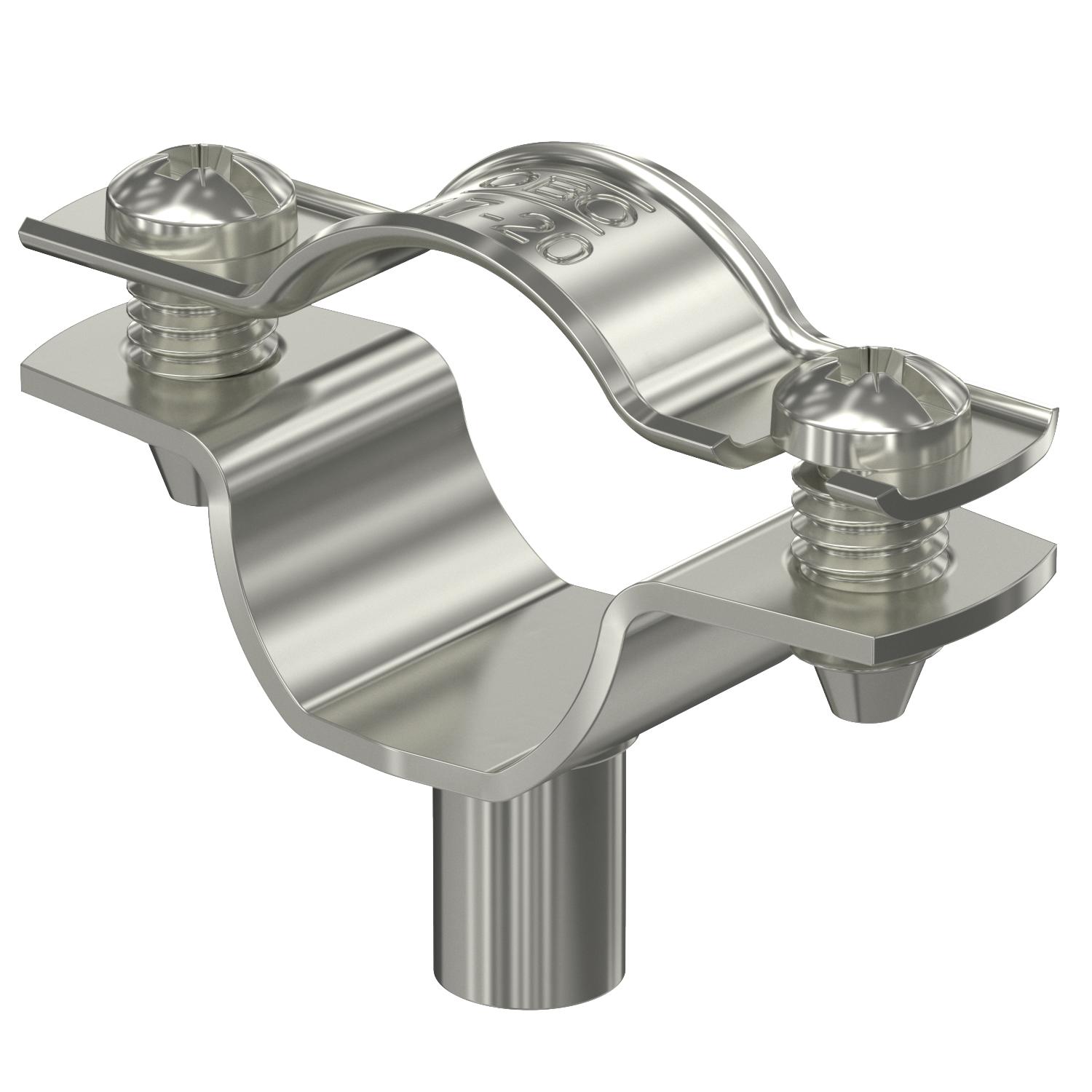

Product descriptionSpacer clip for the installation of pipes and cables on walls, ceiling and floors. With self-locking upper part. Surfaces G and FT from a clip size of 20 are suitable for installation with a nail device or a bolt-firing tool.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E30 to E90.
-
- Technical data
-
Technical data

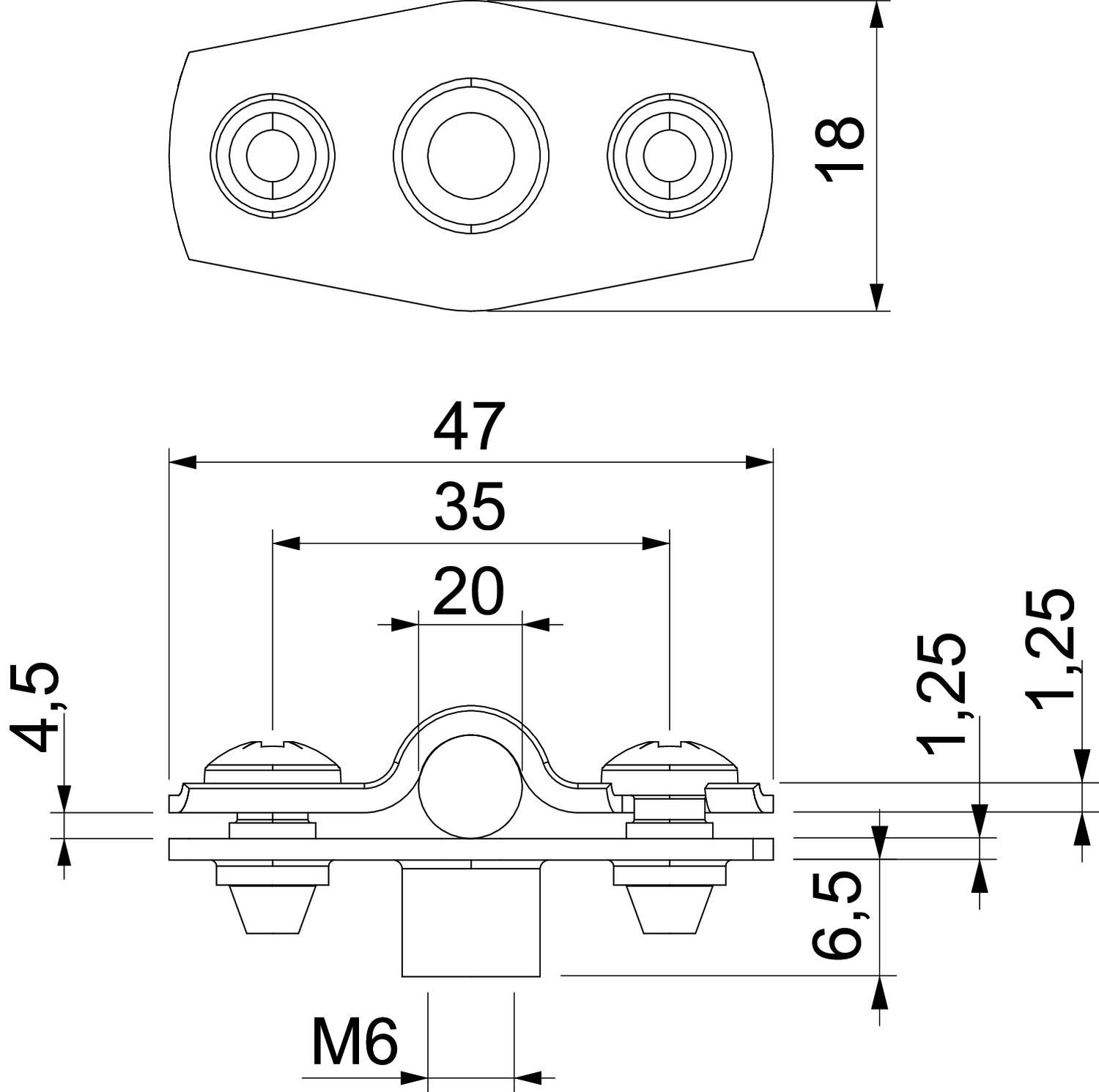

Clamping range D, max. 20 mm Clamping range D, min. 17 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,19 kg CO₂e / 1 Piece Dimension 17-20mm Dimension A 47 mm Dimension b 18 mm Dimension B 35 mm Dimension D 20 mm Dimension d max. 20 mm Dimension d min. 17 mm Dimension H1 12 mm Dimension t1 (mm) 1,25 Dimension t2 (mm) 1,25 Dimension x 4,5 mm Distance to the wall yes For diameter 17 - 20 Halogen-free yes Material Stainless steel Material thickness 1,25 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes UV-resistant yes Version for Closed - All types
-
All types
- Downloads
-
Data sheet ASG 732 20 A2 / 1362636 , 0.28MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity ASG 732 20 A2 / 1362636 , 0.13MB , pdfREACH Declaration of conformity ASG 732 20 A2 / 1362636 , 0.12MB , pdfRoHS Declaration of conformity ASG 732 20 A2 / 1362636 , 0.12MB , pdf
